Wolf
view wolf

Wolf

180 - 240 HP

Dump

Compact, Affordable & Versatile. Tipping bowl operation. For market gardeners or smaller farms.

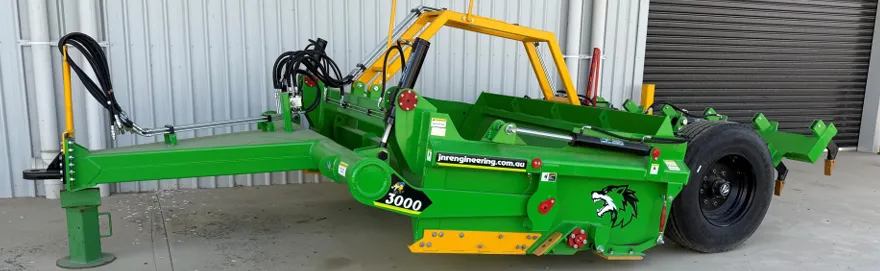

wolf product in a yard

What's in Wolf

The Wolf is a new innovation from JNR that will impress operators who are drawn to a tipping operation.

Dump
Specs 2.7m 3.0m
Tractor Horsepower Range 180 - 200 220 - 240
Struck Capacity (approx.) 3.9 m³ 4.3 m³
Heaped Capacity (approx.) 6.3 m³ 7.0 m³
Cutting Width 2700 mm 3000 mm
Overall Width 2988 mm 3288 mm
Overall Length 5985 mm 5985 mm
Overall Height 1665 mm 1665 mm
Apron Opening 1000 mm 1000 mm
Maximum Cutting Depth 50 mm 50 mm
Cutting Edge Clearance 260 mm 260 mm
Clearance Under Rear 252 mm 252 mm
Cross-Level 5° one way RHS 5° one way RHS
Shipping Weight (approx.) 3460 kg 3840 kg
Weight at Drawbar (approx.) 1038 kg 1152 kg
Tyres 15R Super Singles
Optional - 500/50 x 22.5		 15R Super Singles
Optional - 500/50 x 22.5
Cutting Edge 8" Single Hole 8" Single Hole

Dump

180-240 HP, 7.0³ capacity.

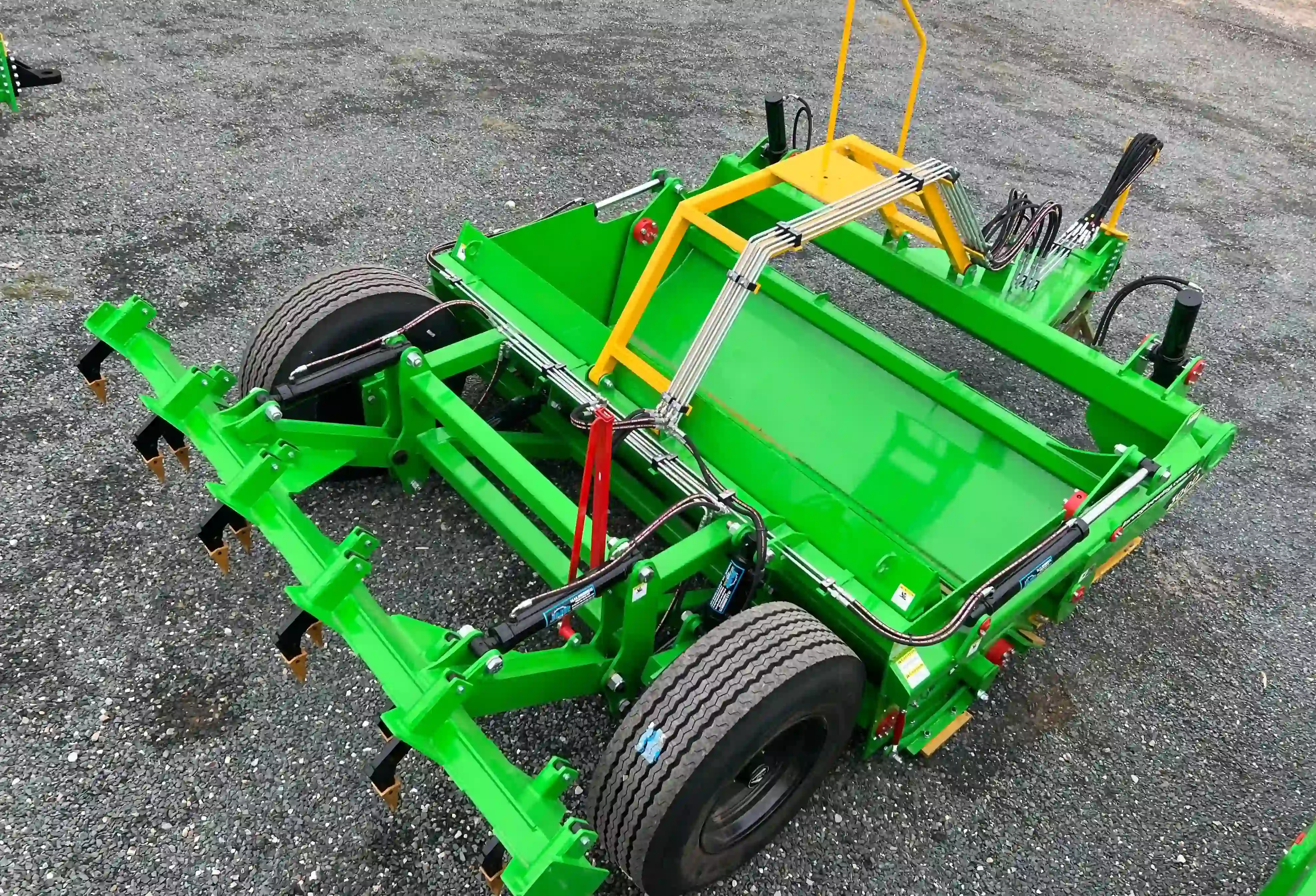

  • Wolf Dump view 1

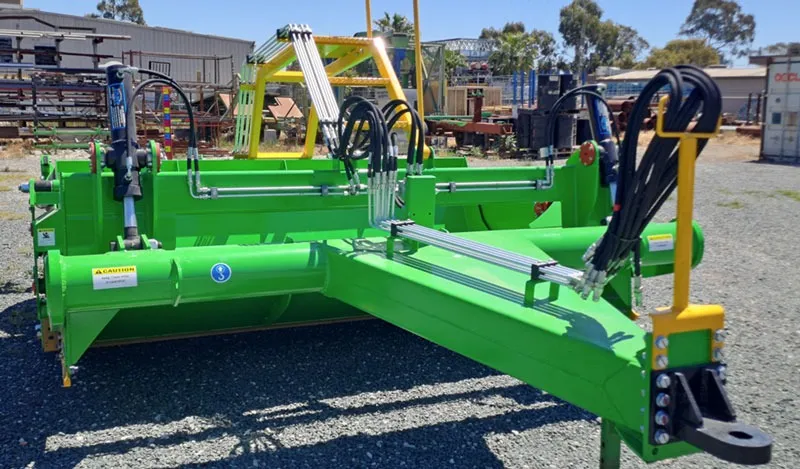

  • Wolf Dump view 2

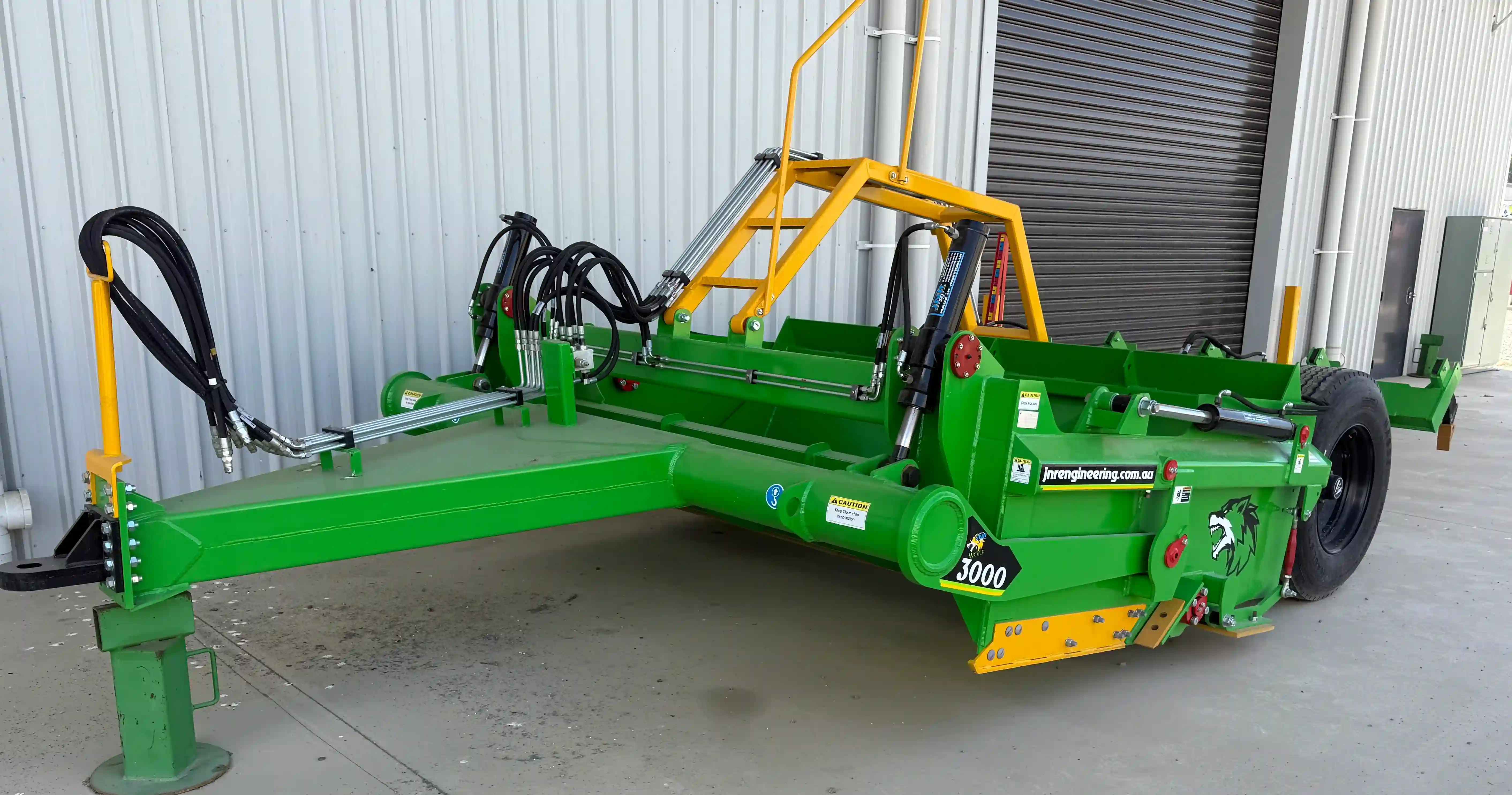

  • Wolf Dump view 3

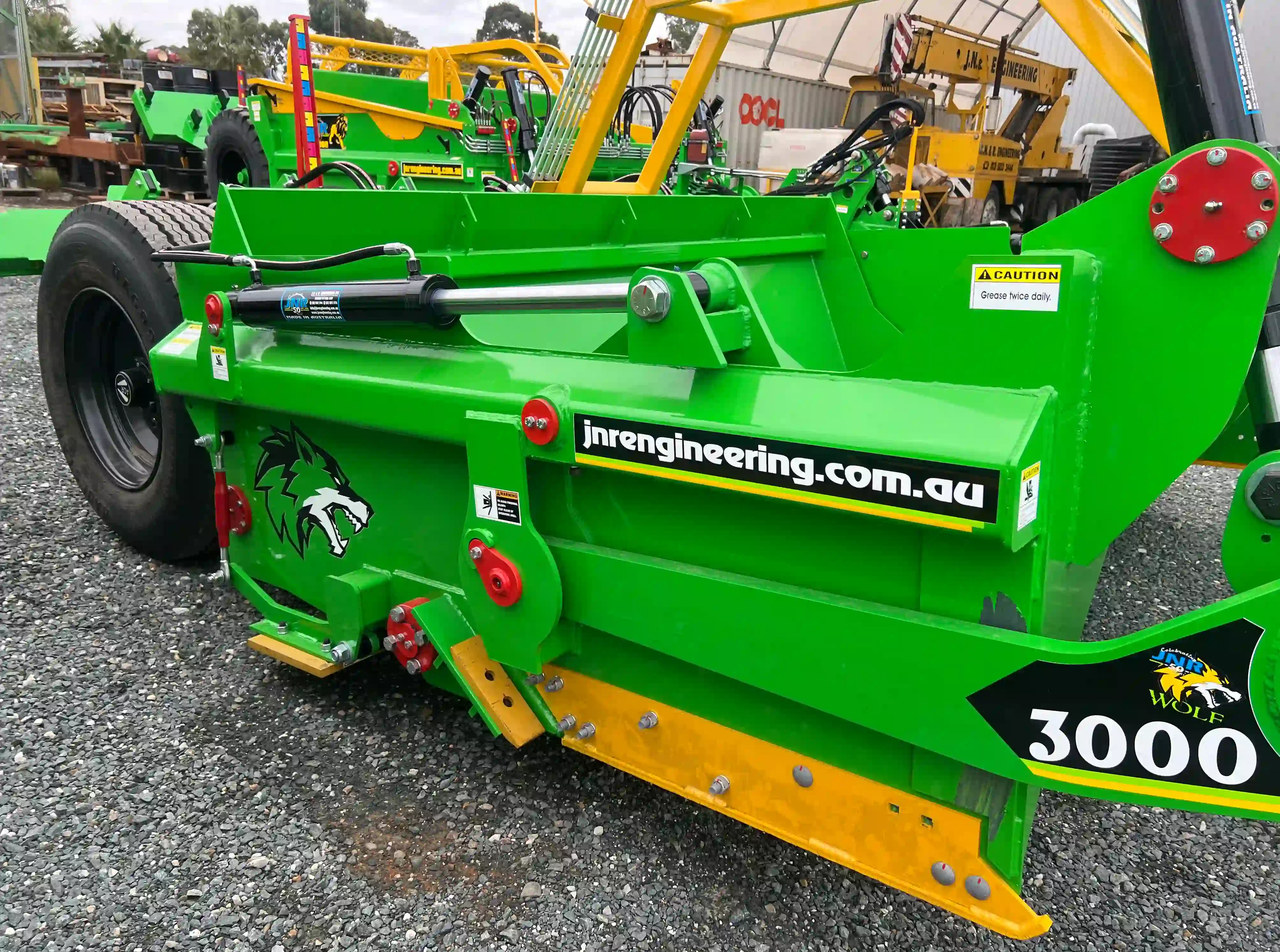

  • Wolf Dump view 4

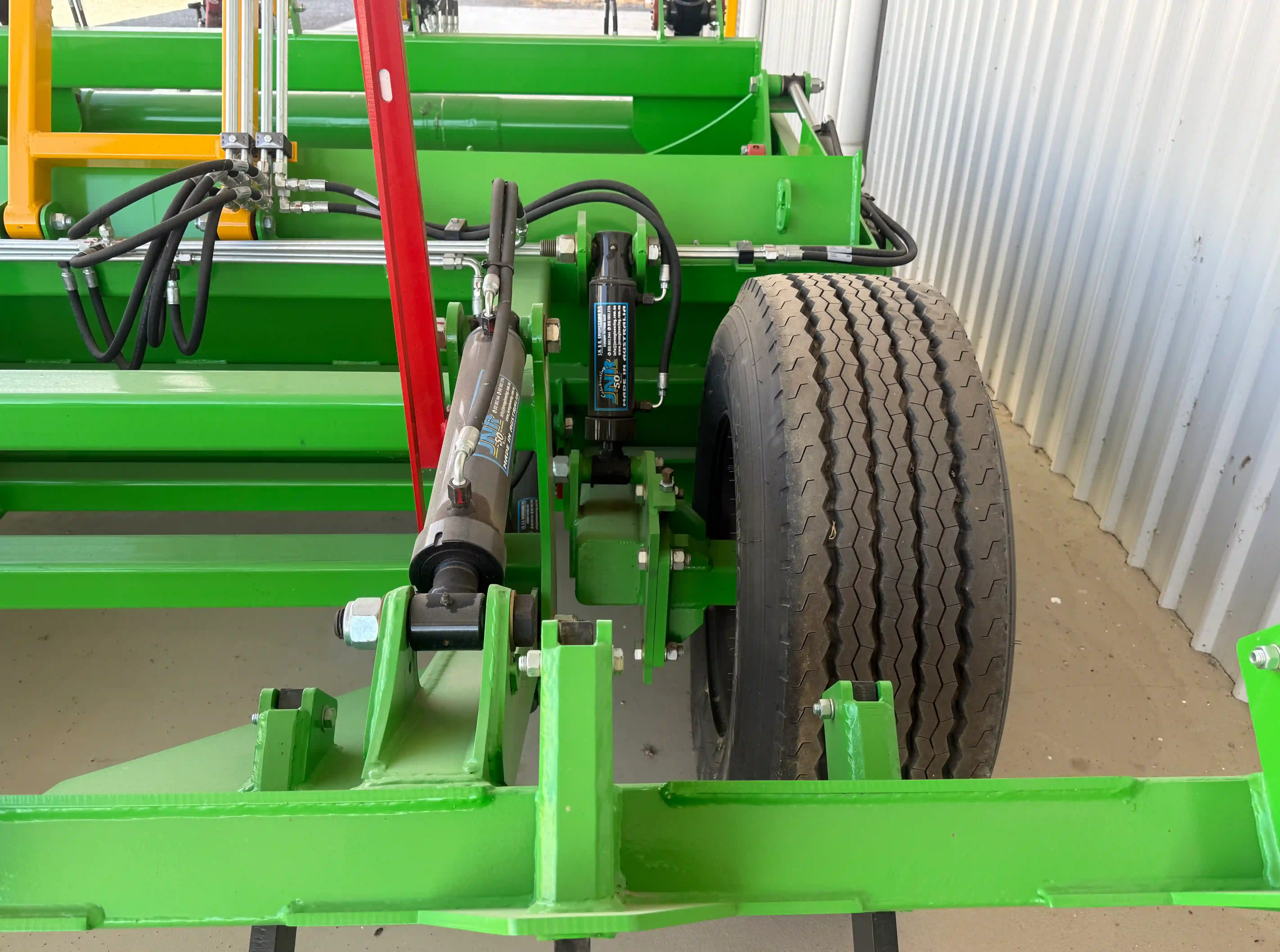

  • Wolf Dump view 5

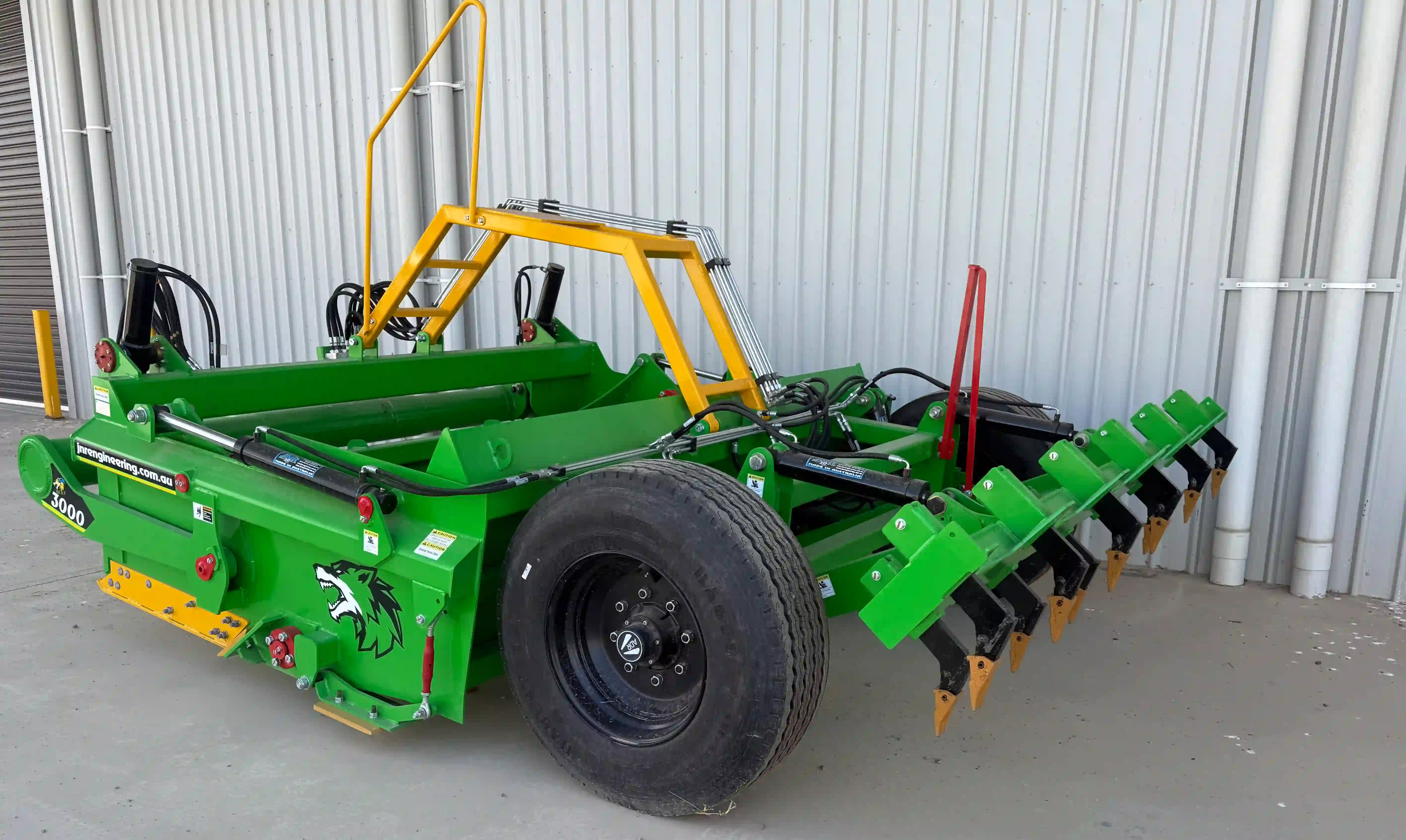

  • Wolf Dump view 6

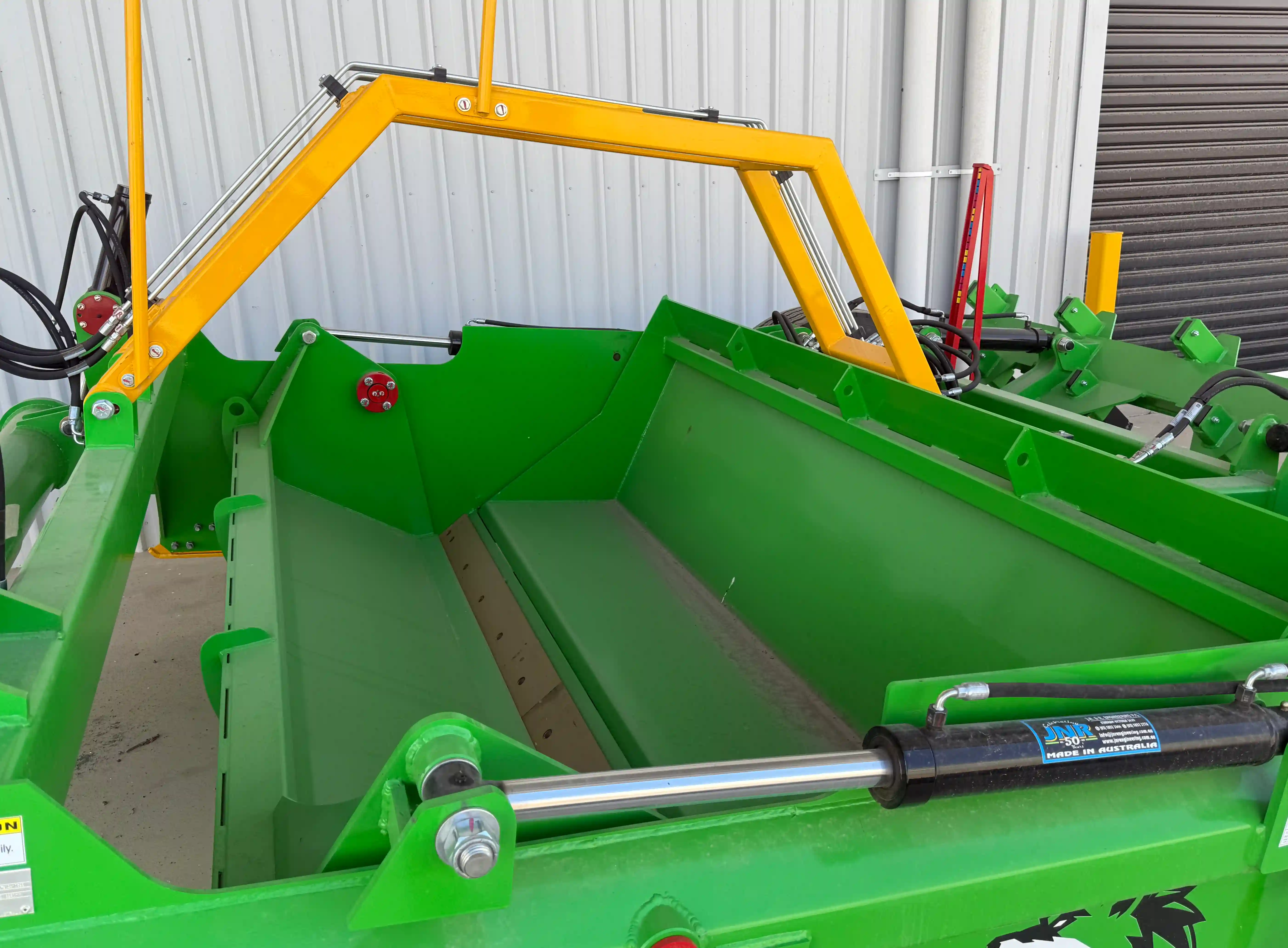

  • Wolf Dump view 7

Replacing our previous LB model, the Wolf has been specifically designed to improve on the tipping bowl hinge bar system used in other models. A nifty piece of ingenuity, our new pivot pin system makes maintenance a walk in the park, compared to replacing the outdated and time-consuming hinge bar system. The Wolf retails at a slightly lower price point in comparison to the larger Honey Badger as it carries slightly less material and is well suited to market gardeners or the smaller farmer. One-way cross level, new hinge pivot system, and apron with 15R super single tyres as standard. Optional extras include double row rippers and its possible to upgrade to 500/50 x 22.5 tyres.
