Honey Badger
Honey Badger product icon

Honey Badger

110 - 260 HP

Dual Apron, Ejector

Compact & Affordable. Designed with market gardeners in mind or farmers wanting to do more of their own work.

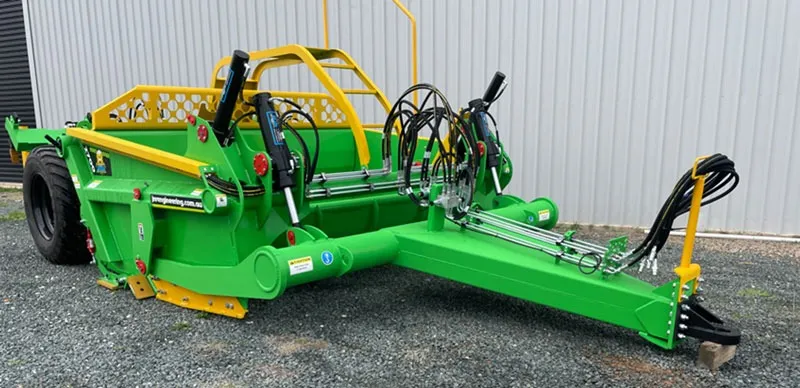

Some Honey Badger products

What's in Honey Badger

The Honey Badger range, sports a series of fantastic small agricultural scrapers with much to offer.

Dual Apron (DA) Ejector (DE)
Specs 2.1m 2.4m 2.7m (9.0) 3.0m (10.0) 3.2m (10.8)
Model Dual Apron Dual Apron Ejector Straight Ejector Rocker Ejector Straight Ejector Rocker Ejector Straight Ejector Rocker
Tractor Horsepower Range 110 - 150 130 - 160 180 - 220 180 - 220 200 - 230 200 - 230 240 - 260 240 - 260
Struck Capacity (approx.) 2.3 m³ 2.6 m³ 4.45 m³ 4.95 m³ 5.28 m³
Heaped Capacity (approx.) 2.9 m³ 3.3 m³ 6.35 m³ 7.05 m³ 7.5 m³
Cutting Width 2100 mm 2400 mm 2700 mm 3000 mm 3200 mm
Overall Width 2359 mm 2659 mm 2990 mm 3290 mm 3490 mm
Overall Length 4420 mm 4420 mm 6110 mm 6823 mm 6110 mm 6823 mm 6110 mm 6823 mm
Overall Height 1252 mm 1252 mm 1805 mm 1805 mm 1805 mm
Apron Opening 1025 mm 1025 mm
Cutting Edge Clearance 328 mm 328 mm
Clearance Under Rear 260 mm 260 mm
Maximum Cutting Depth 50 mm 50 mm
Cross-Level 5° L / 5° R 3° L / 3° R 5° L / 5° R 3° L / 3° R 5° L / 5° R 3° L / 3° R
Shipping Weight (approx.) 1575 kg 1800 kg 4603 kg 6405 kg 5115 kg 7116 kg 5456 kg 7590 kg
Weight at Drawbar (approx.) 473 kg 540 kg 1381 kg 1922 kg 1535 kg 2135 kg 1637 kg 2277 kg
Tyres 13/55 x 16 13/55 x 16 500/50 x 22.5 15R Super Singles 500/50 x 22.5 15R Super Singles 500/50 x 22.5 15R Super Singles
Cutting Edge 8" Single Hole 8" Single Hole 8" Single Hole 8" Single Hole 8" Single Hole 8" Single Hole 8" Single Hole 8" Single Hole

Dual Apron (DA)

110-160 HP, 3.3³ capacity. The smallest in this range. The unique dual apron bowl design provides a tipping bowl feel with ejecting type spreading, offering it as a year-round machine.

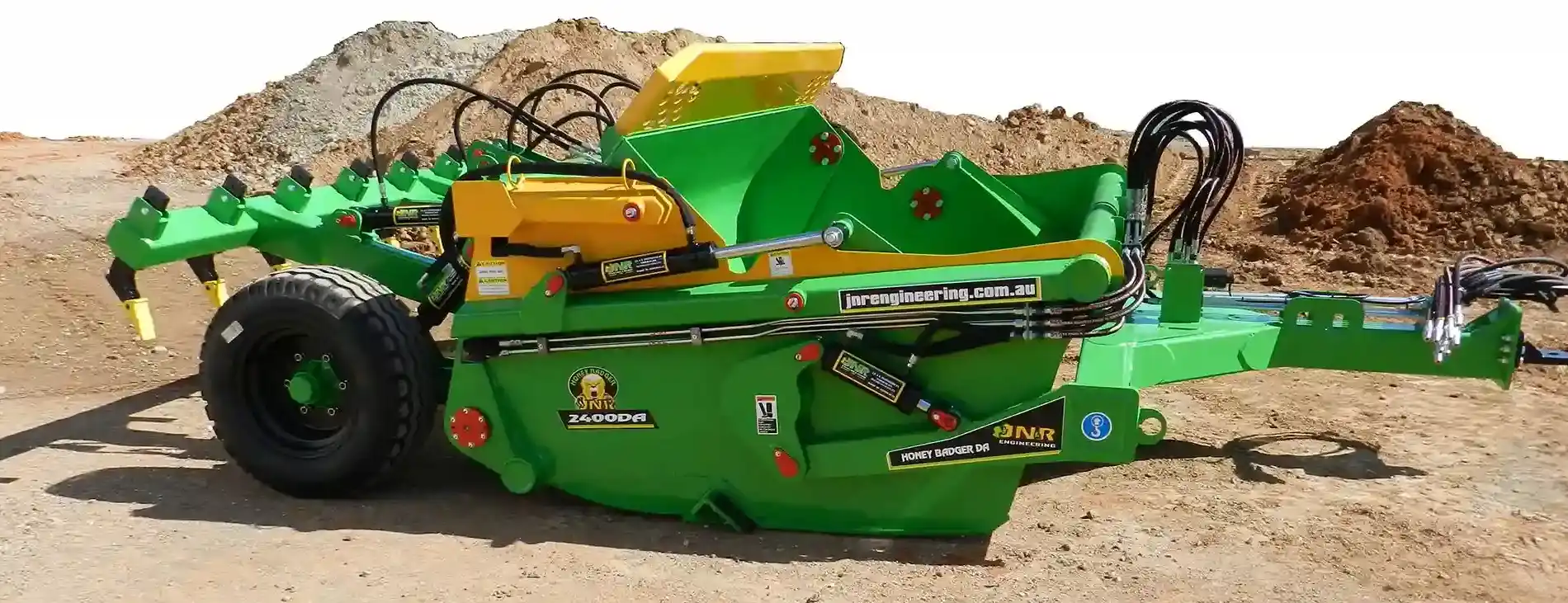

  • honey badger dual apron view 1

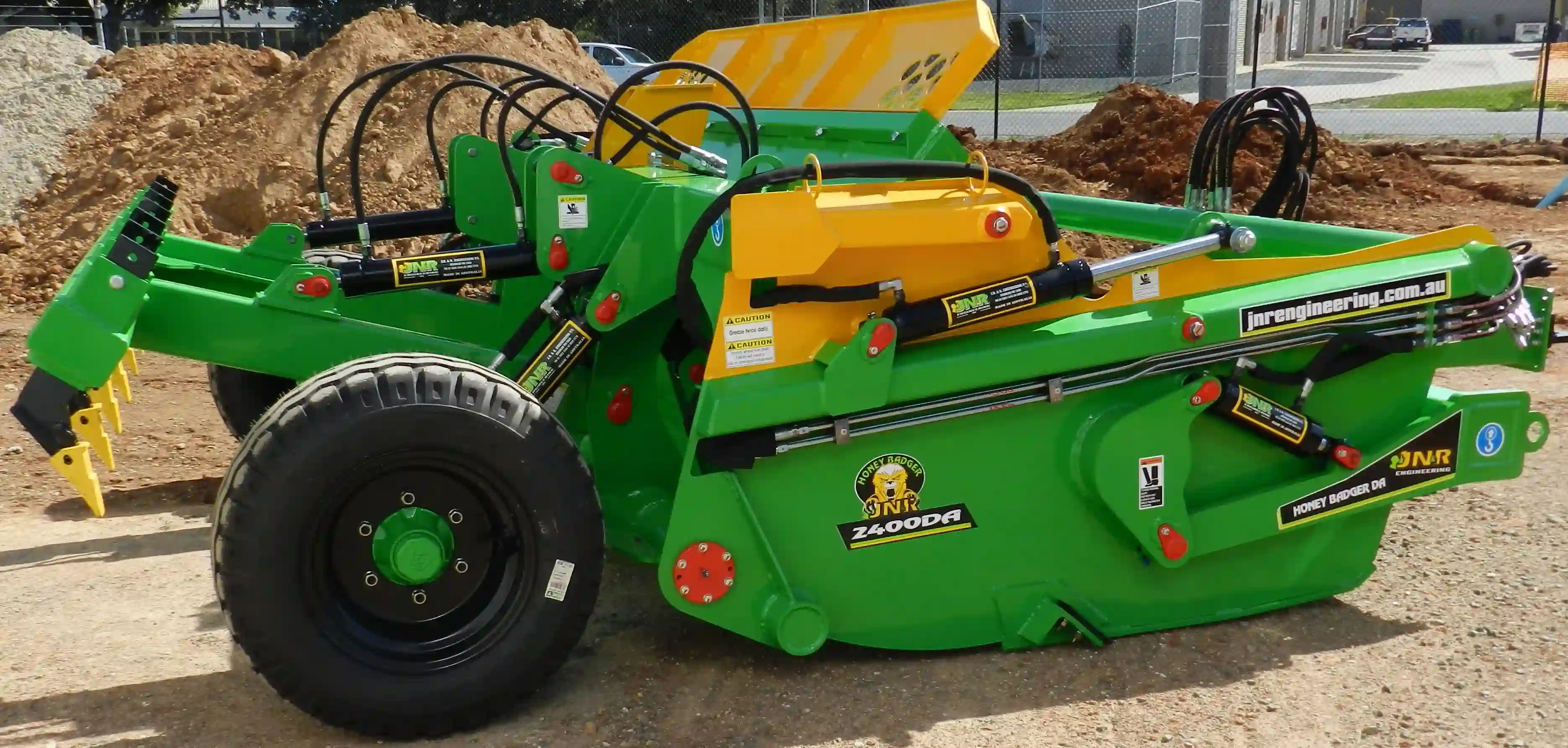

  • honey badger dual apron view 2

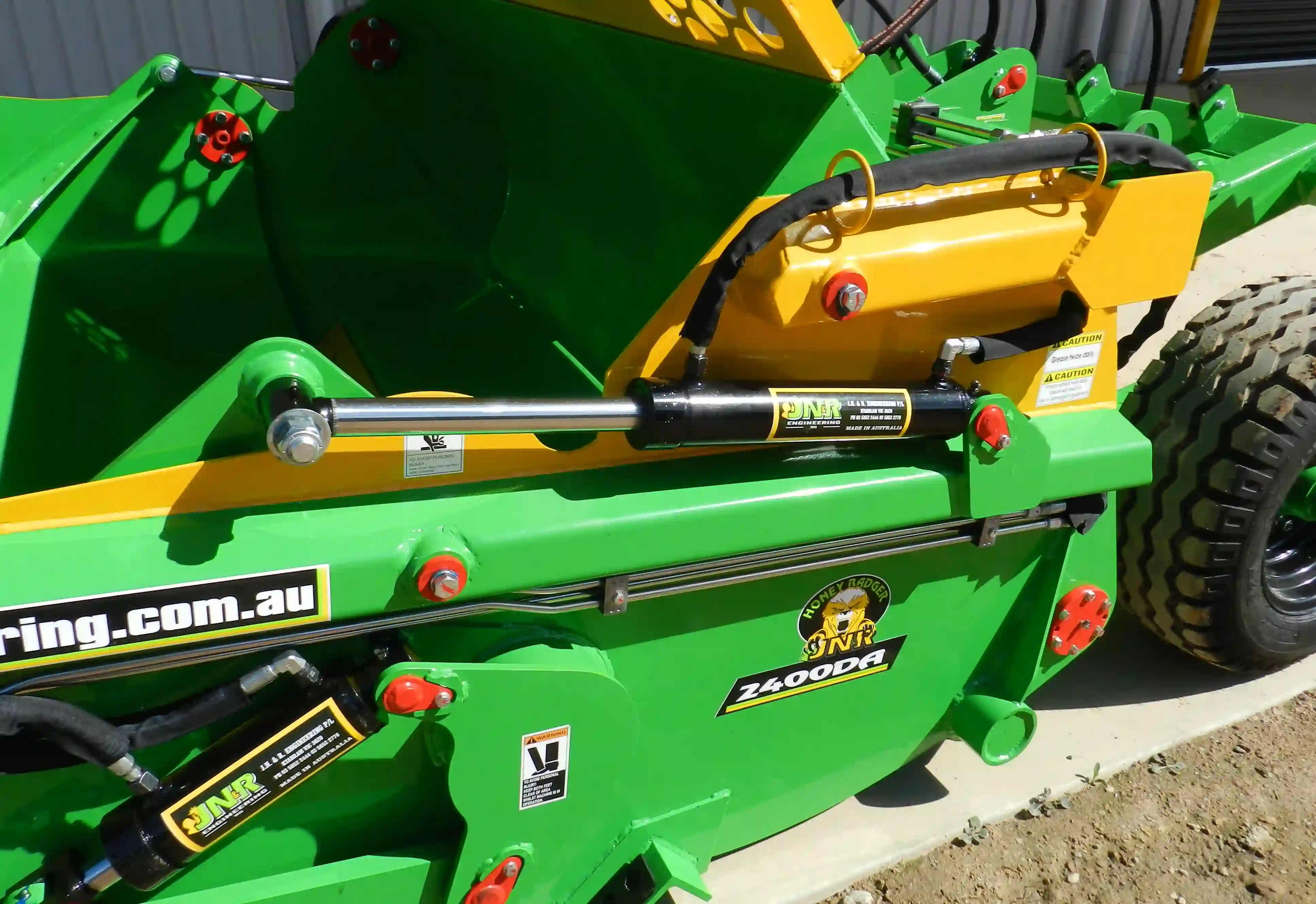

  • honey badger dual apron view 3

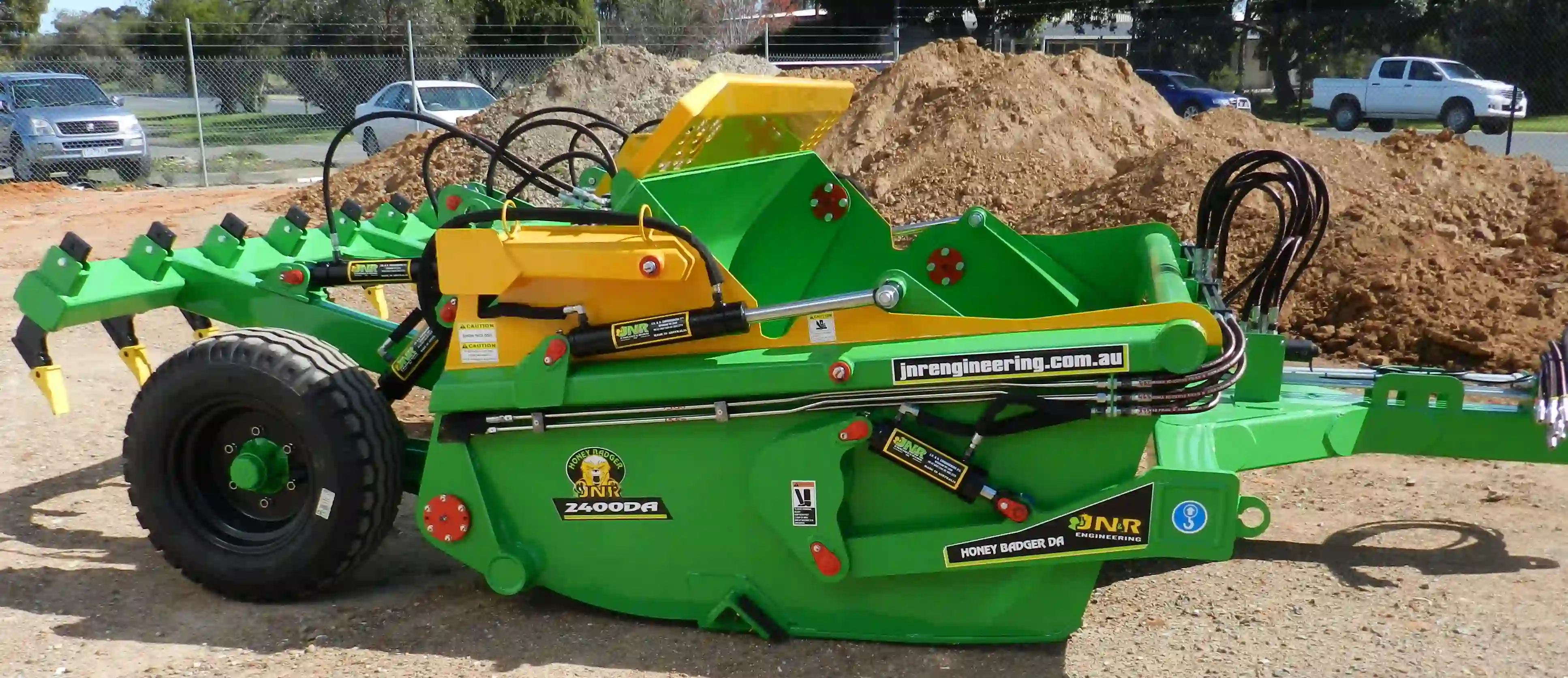

  • honey badger dual apron view 4

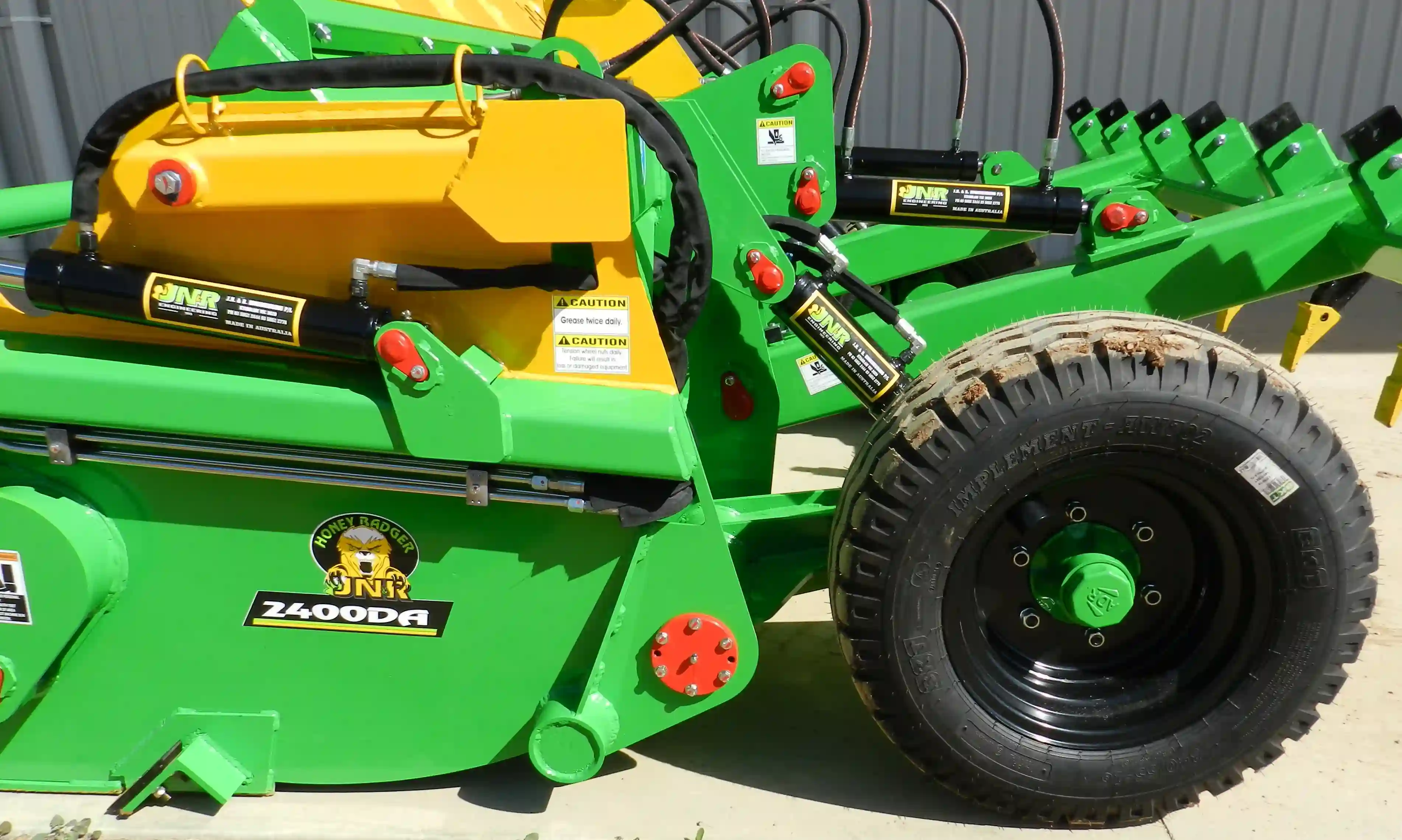

  • honey badger dual apron view 5

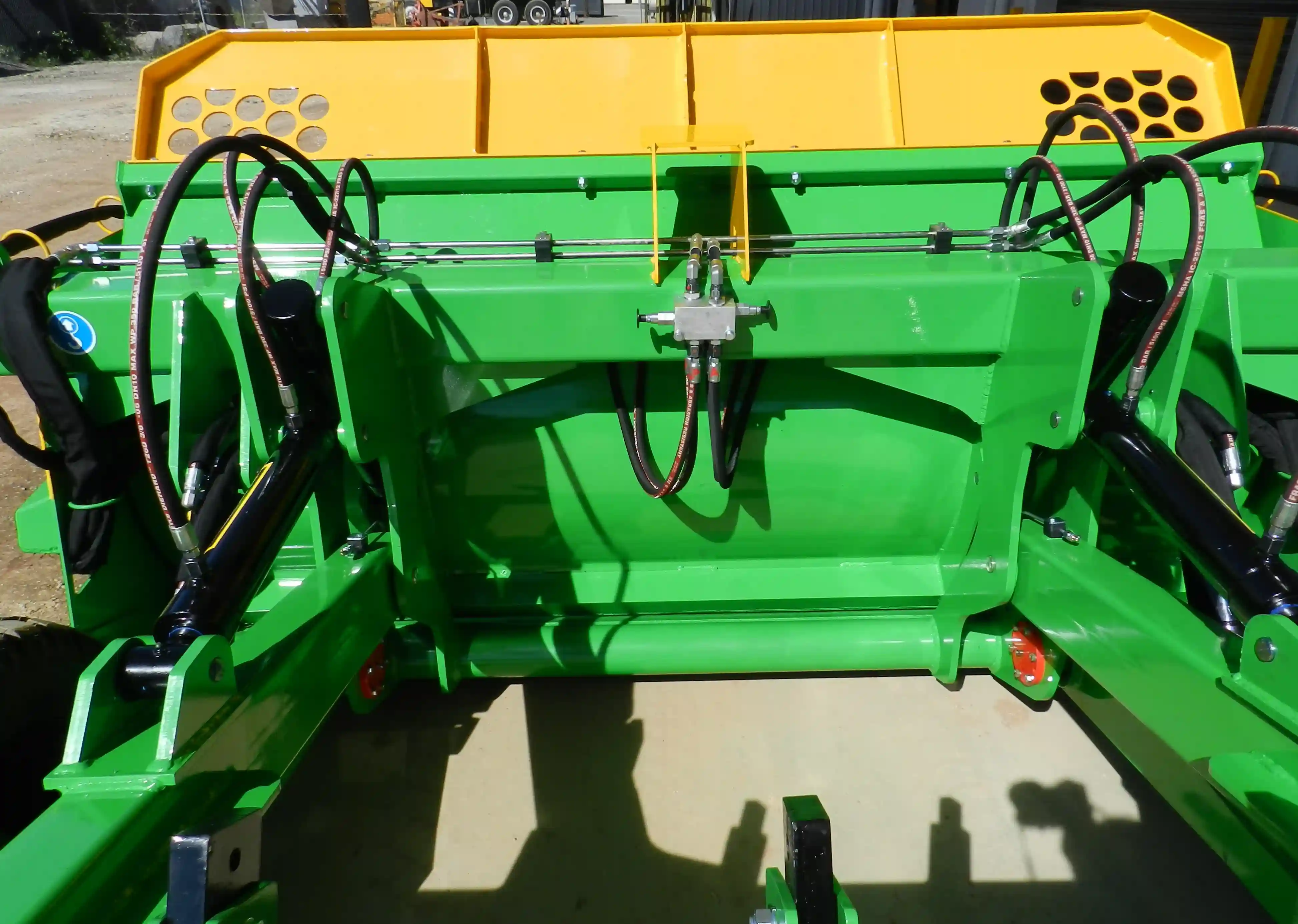

  • honey badger dual apron view 6

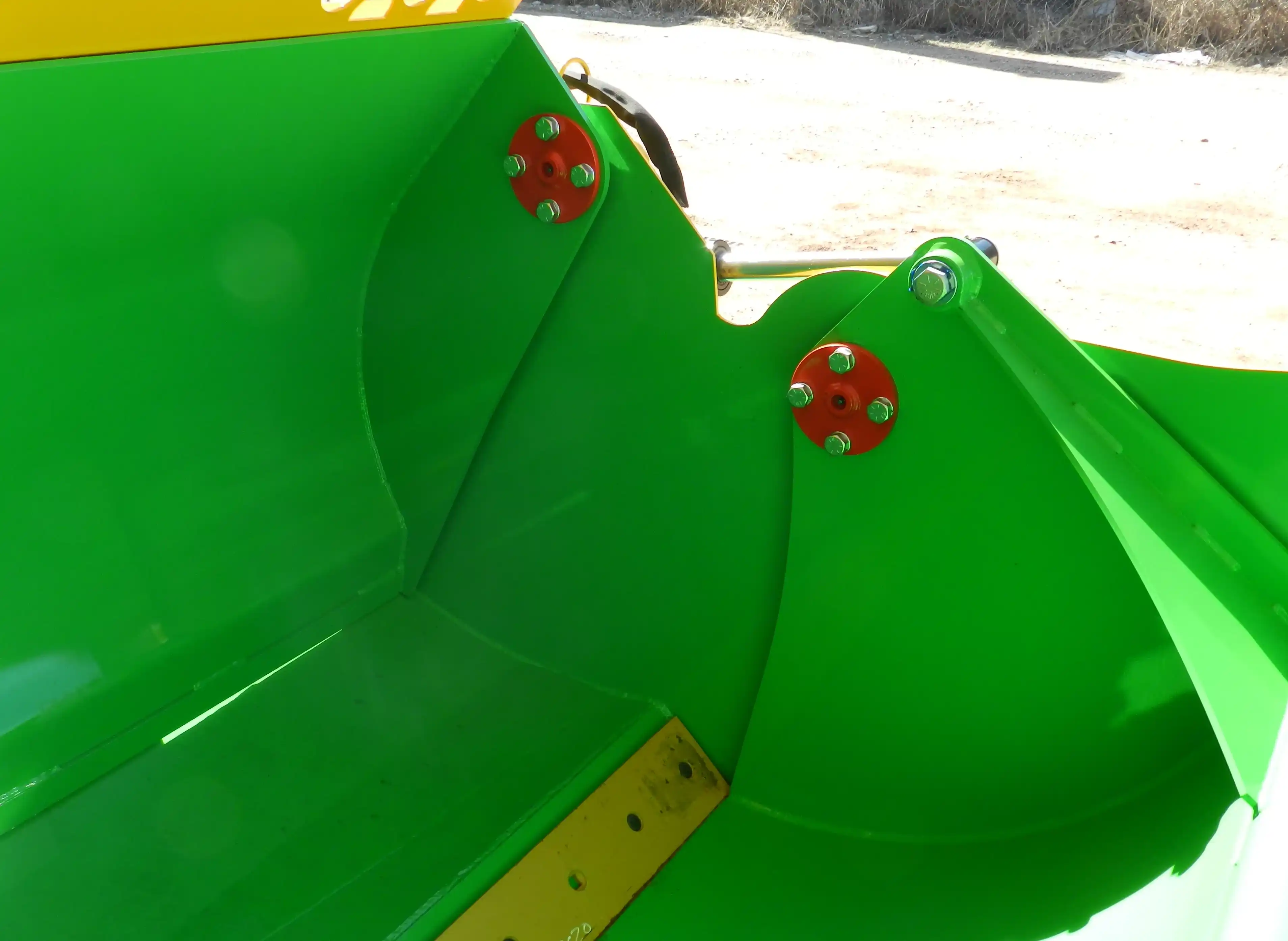

  • honey badger dual apron view 7

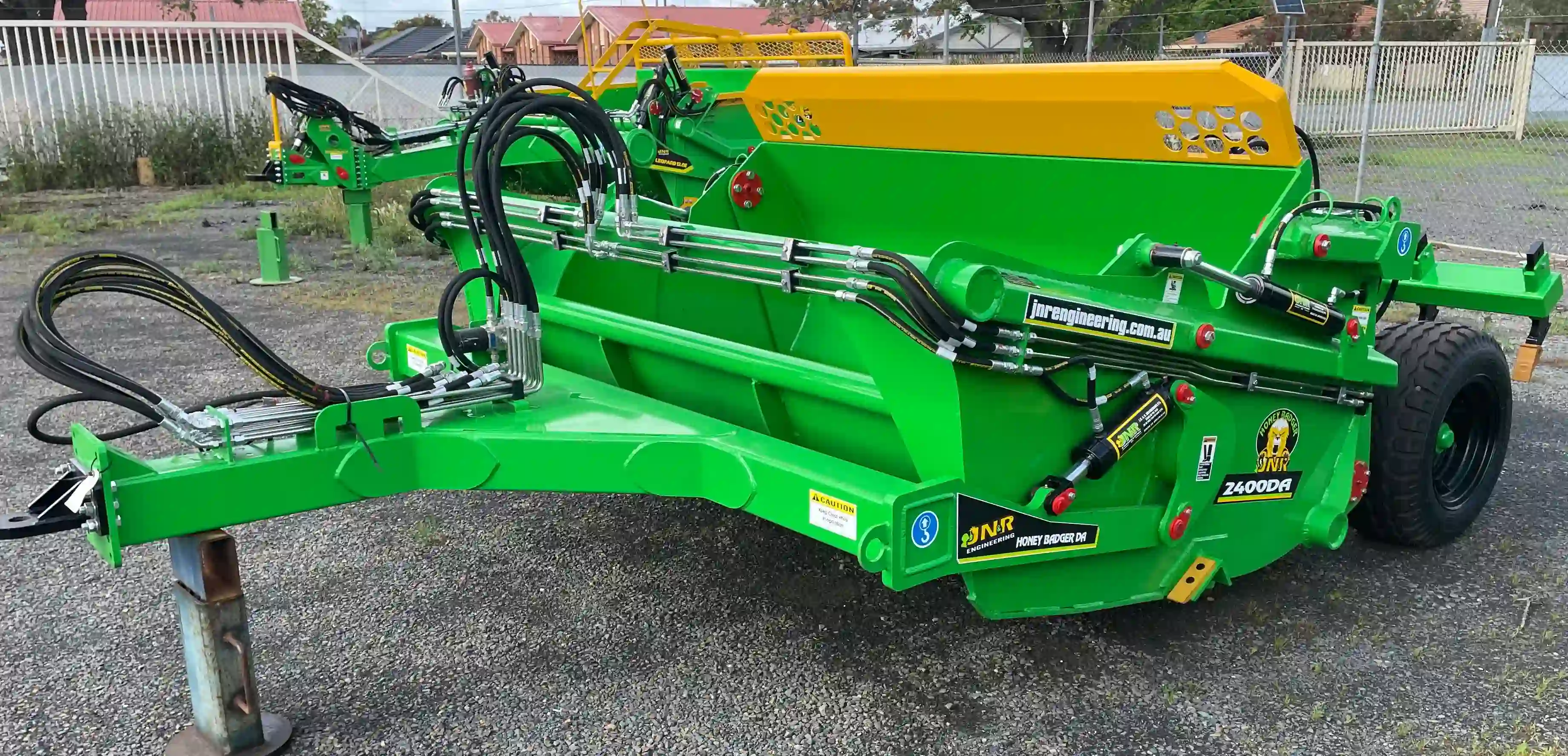

  • honey badger dual apron view 8

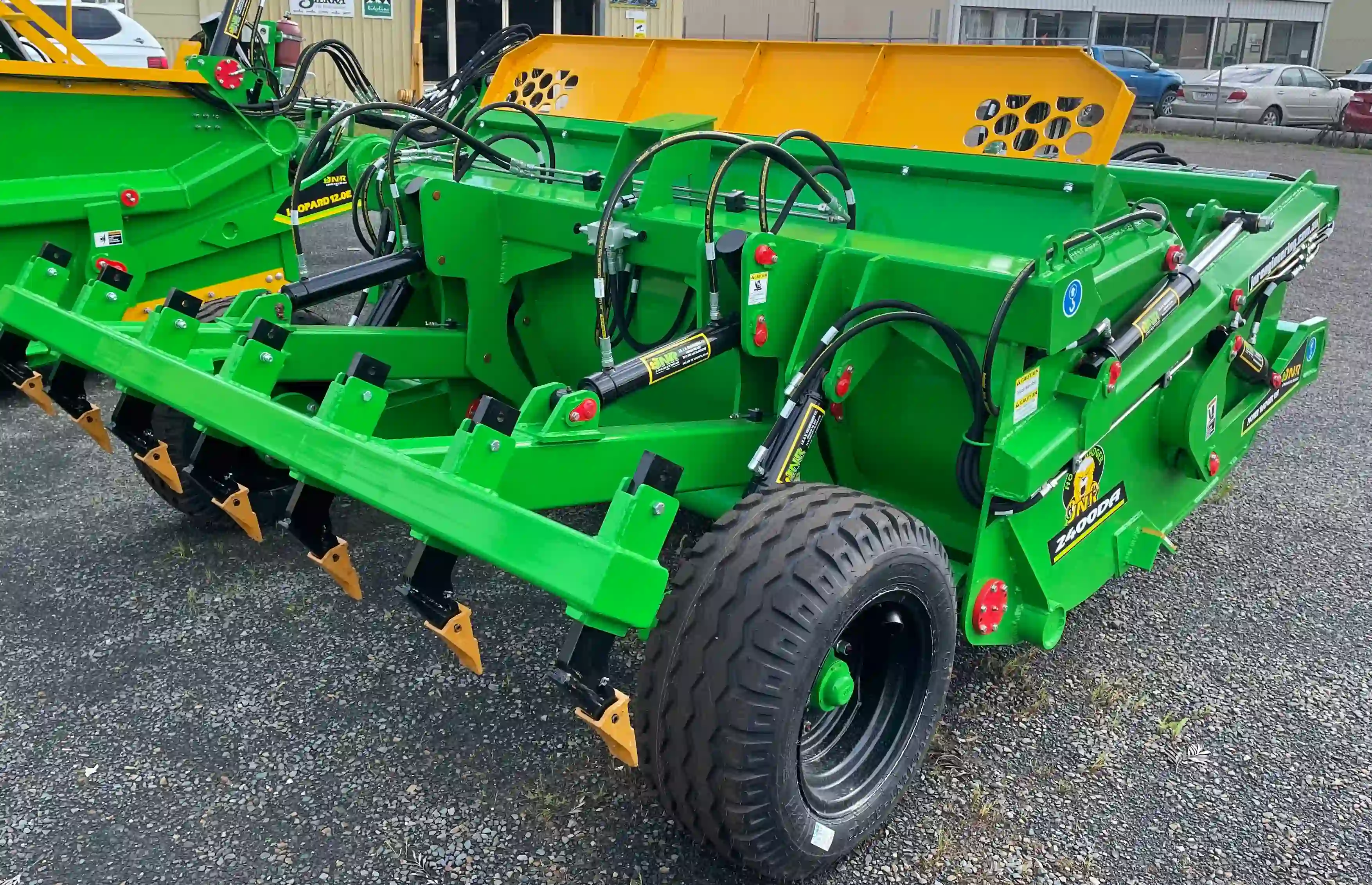

  • honey badger dual apron view 9

Worked behind slightly lower HP tractors, the DA will flawlessly build or touch up smaller areas such as lane ways, bowling greens and between orchard rows - think small spaces. The DA is perfect for shaping feed lots, feed pads or small paddocks. If you’re eager to move a larger amount of dirt though and see it spilling over the sides – look toward the Honey Badger Ejector or one of our bigger models again.

For such a small machine, the DA is quite boastful:

  • An extra-high lift clearance that gives precise maneuverability in tight confined areas.
  • Increased struck and heaped capacity with newly designed Chassis (replaces the old XSE model).
  • Optional extras such as a power pack oil supply, allows you to run a laser system precise enough to finish a football field with extreme accuracy.
  • Single row rippers tickle the ground helping to contain weeds and assist in getting a load full of dirt.

Ejector (DE)

DE(Straight): 160-260 HP, 7.5³ capacity. DE(Rocker): 180-260 HP, 7.5³ capacity. The most affordable and versatile machine excelling at digging, grading, carrying and ripping given its compact size and robust design.

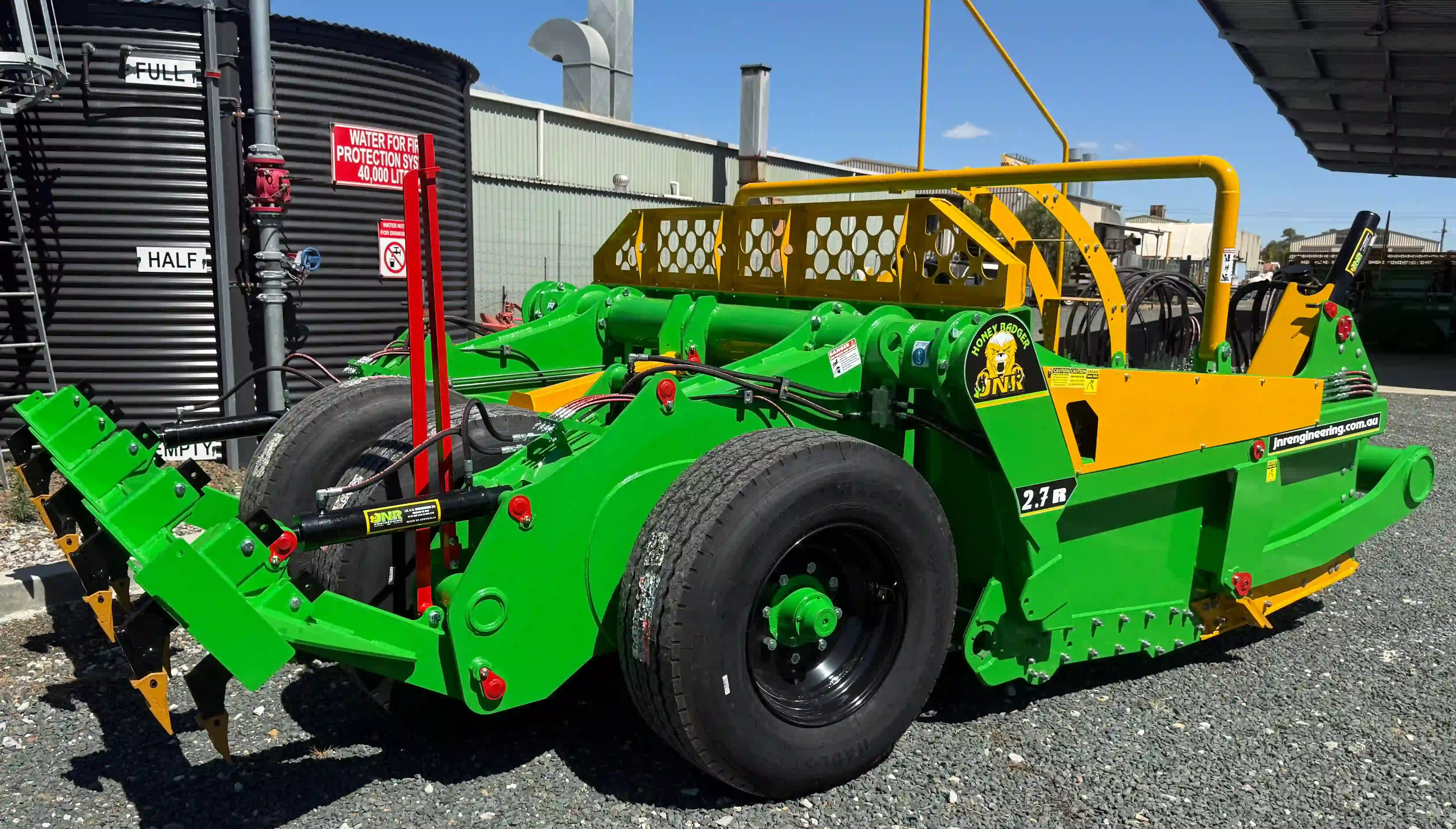

  • Honey Badger Ejector Rocker view 1

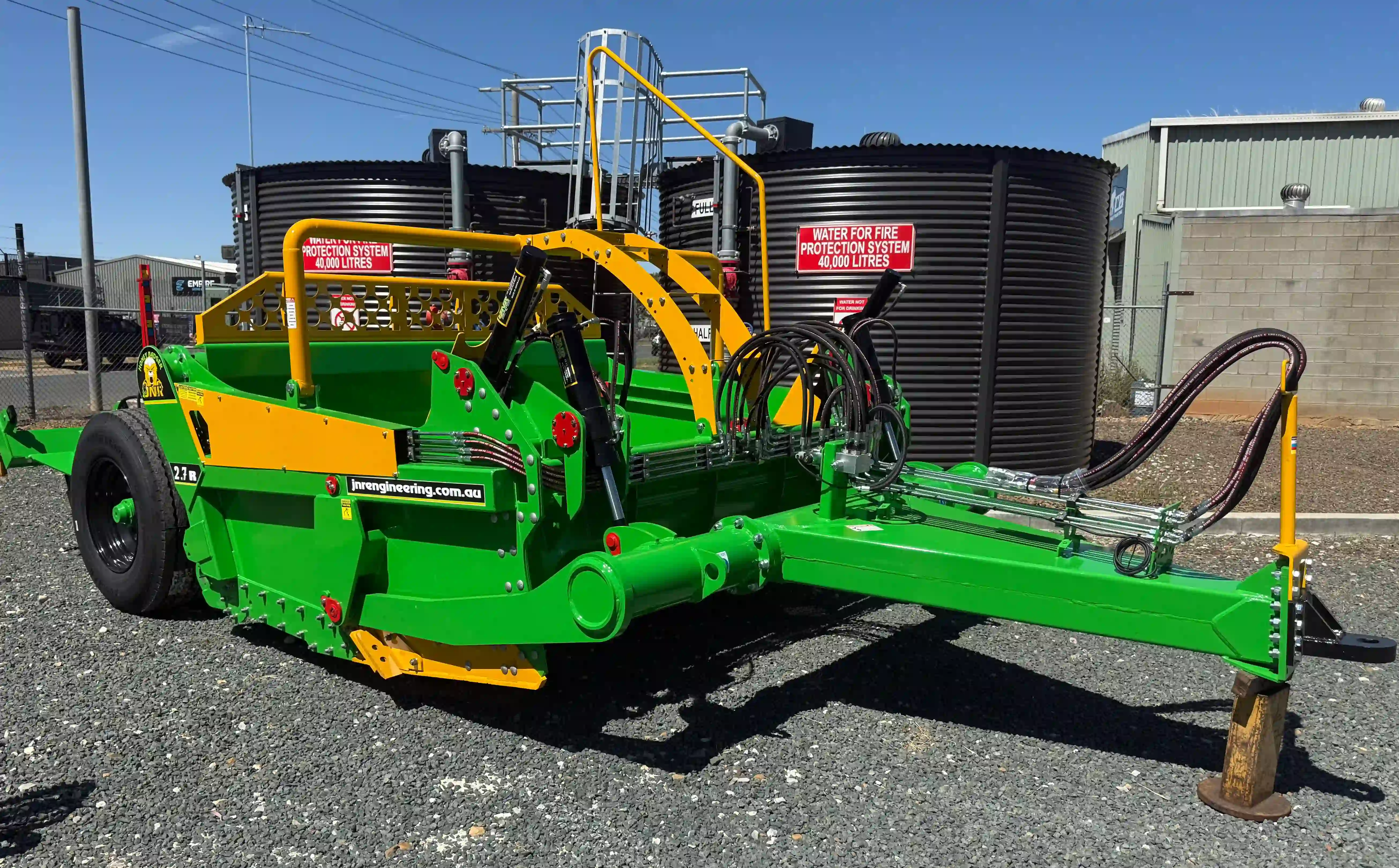

  • Honey Badger Ejector Rocker view 2

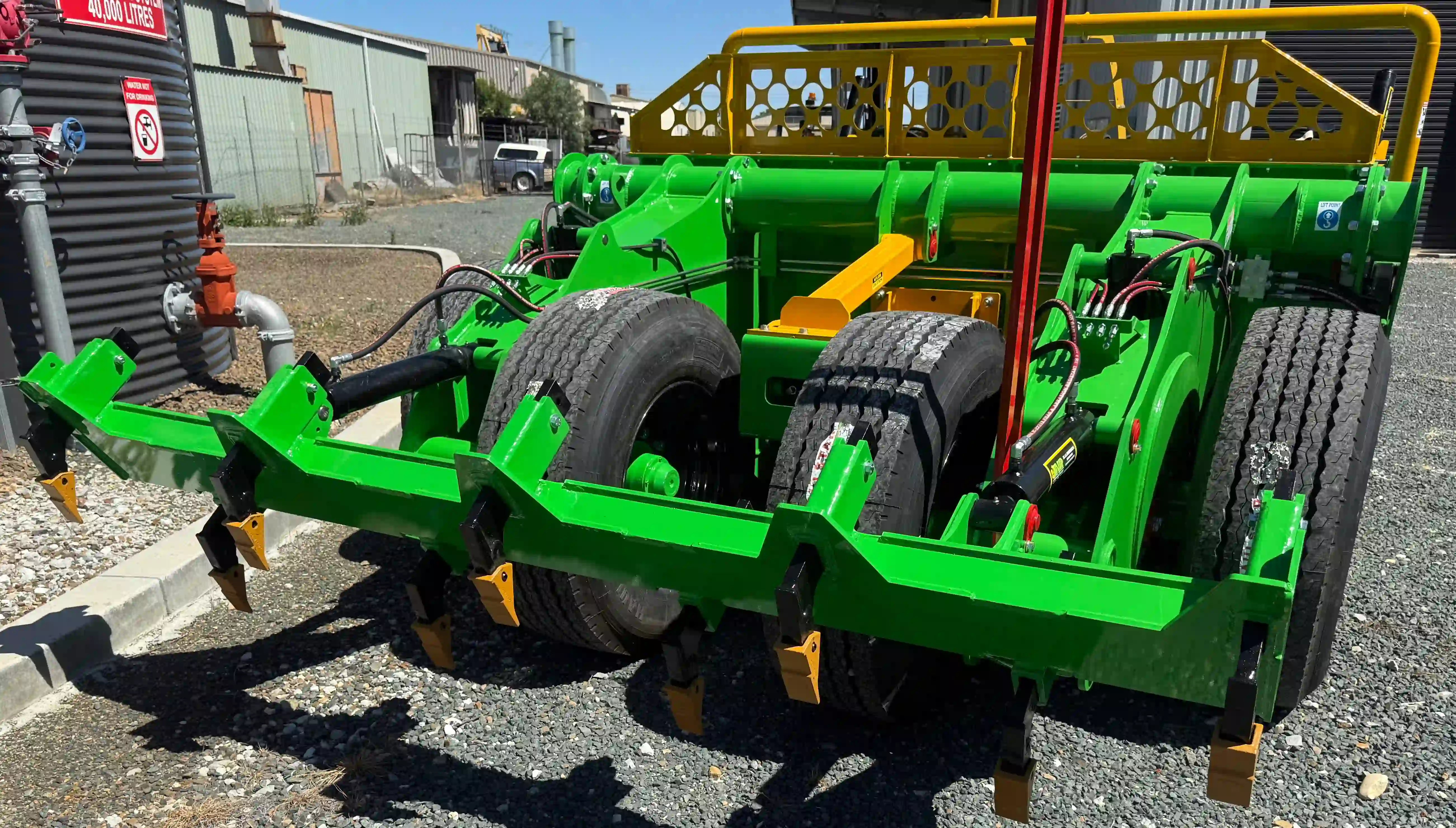

  • Honey Badger Ejector Rocker view 3

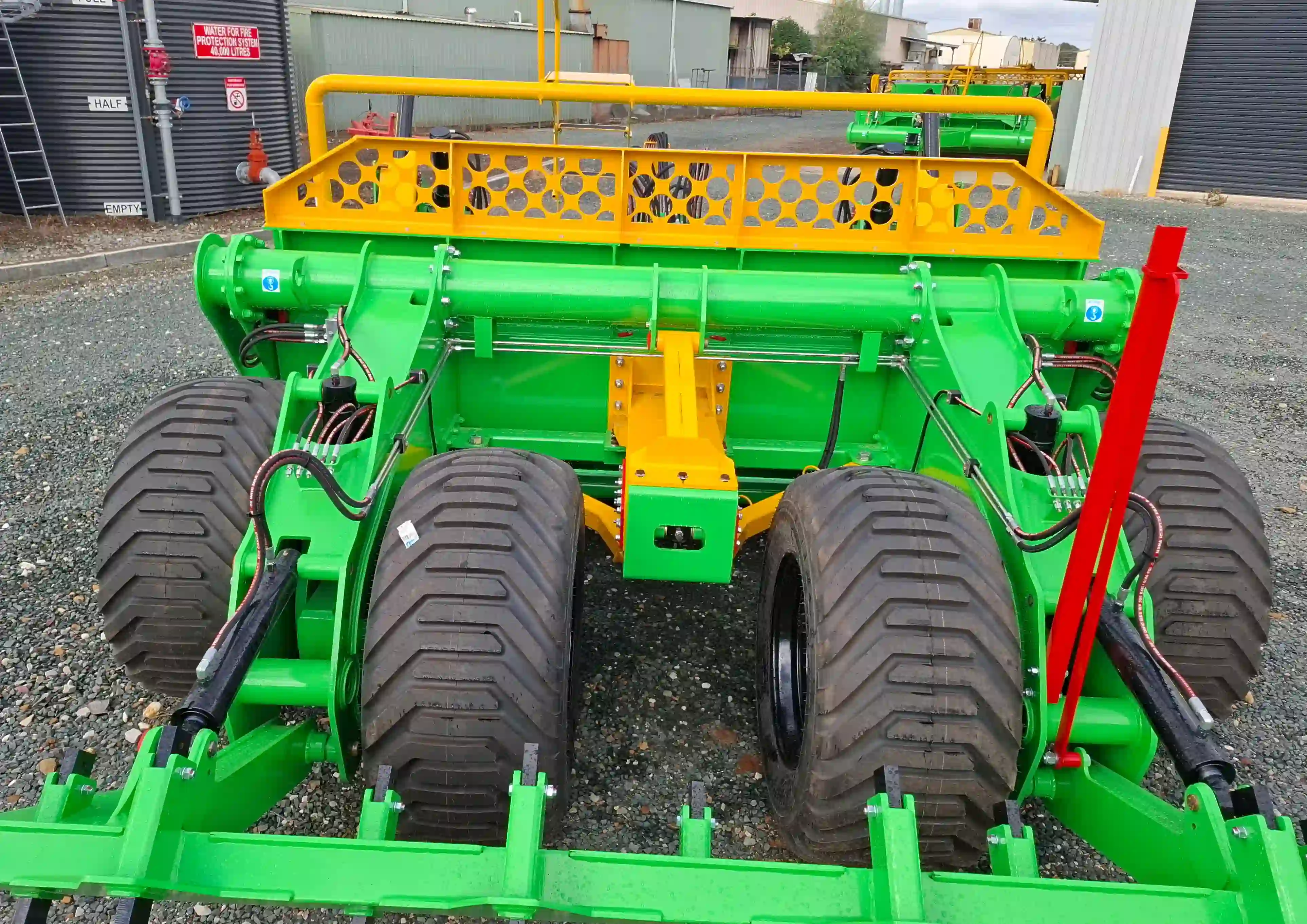

  • Honey Badger Ejector Rocker view 4

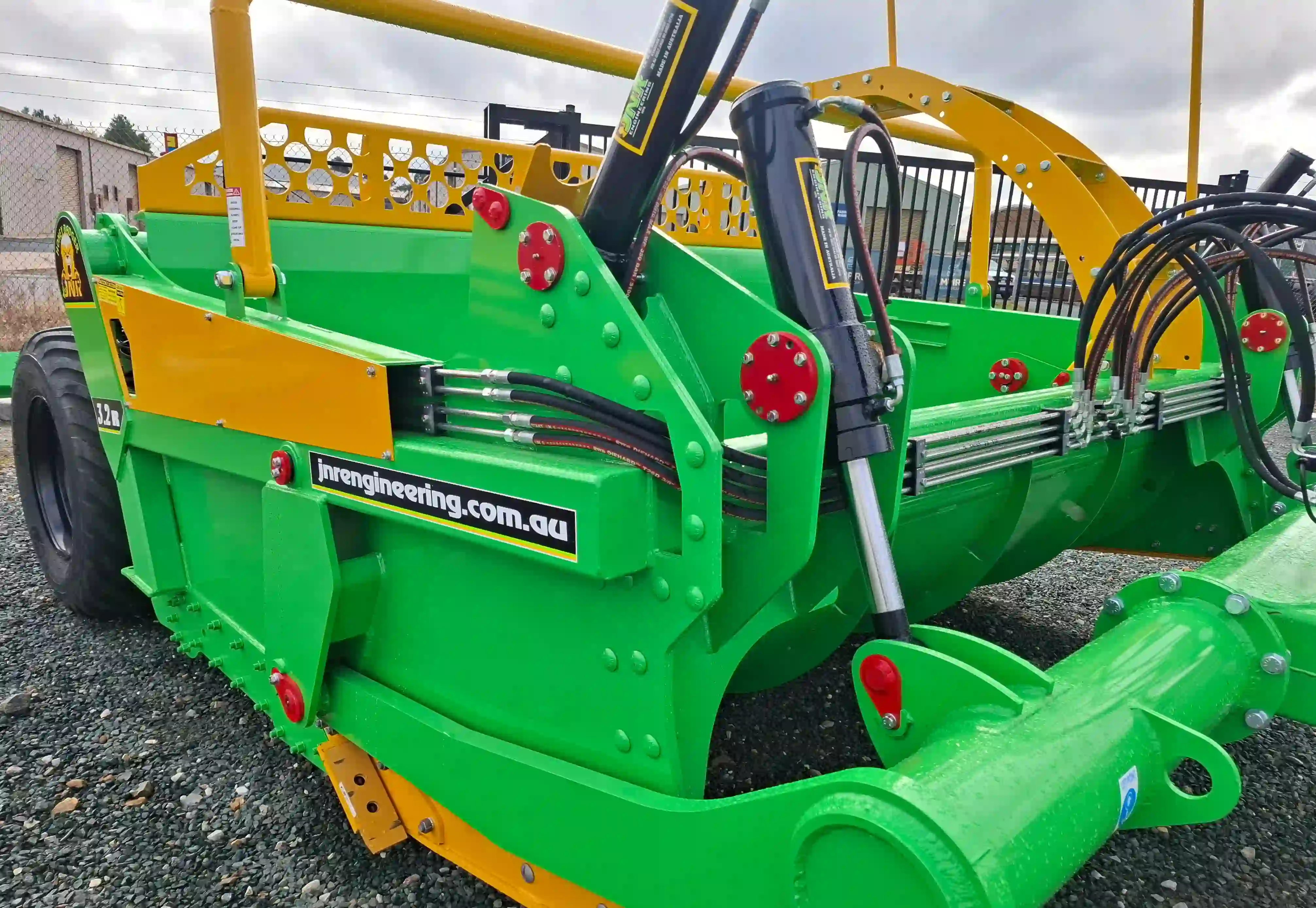

  • Honey Badger Ejector Rocker view 5

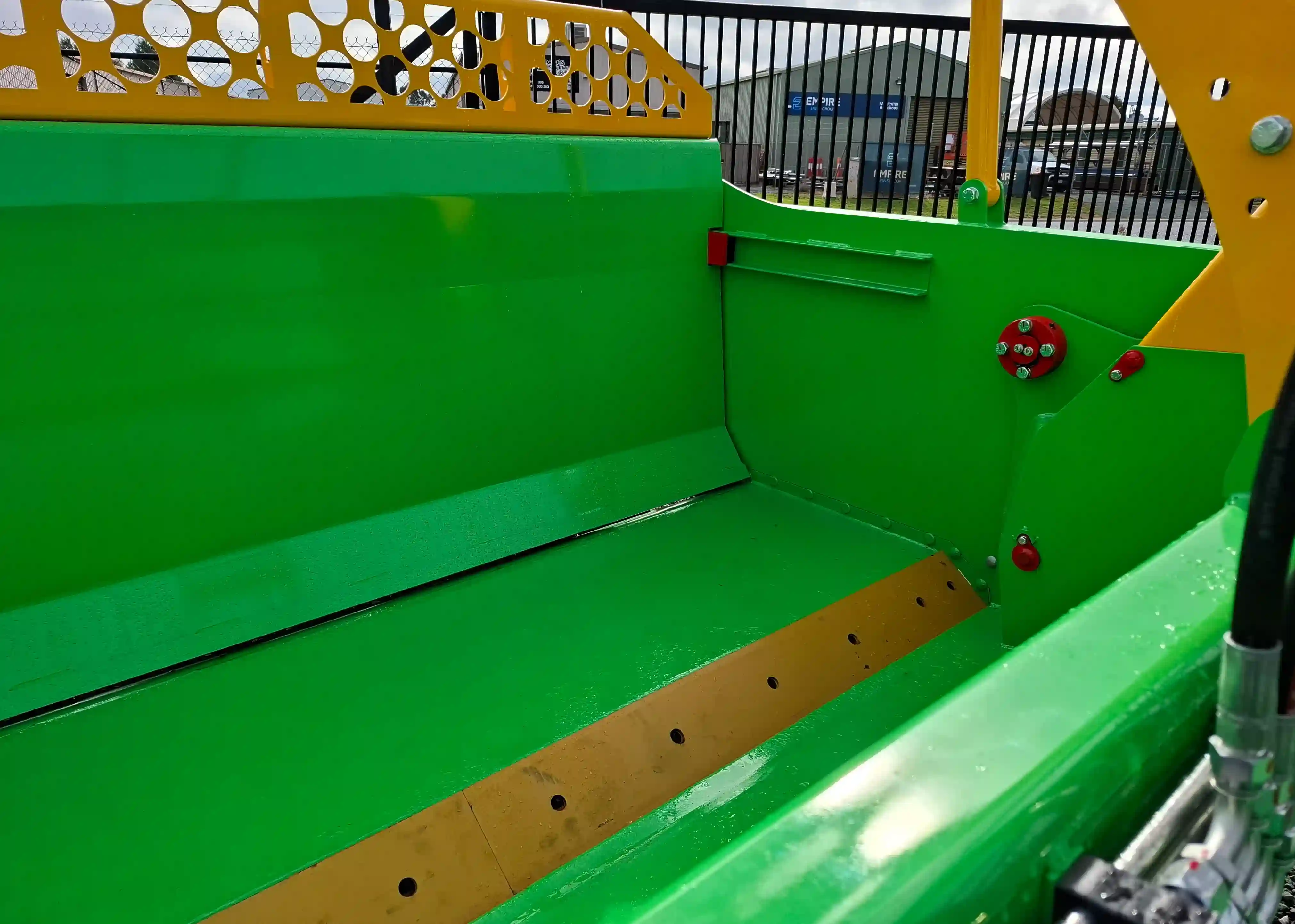

  • Honey Badger Ejector Rocker view 6

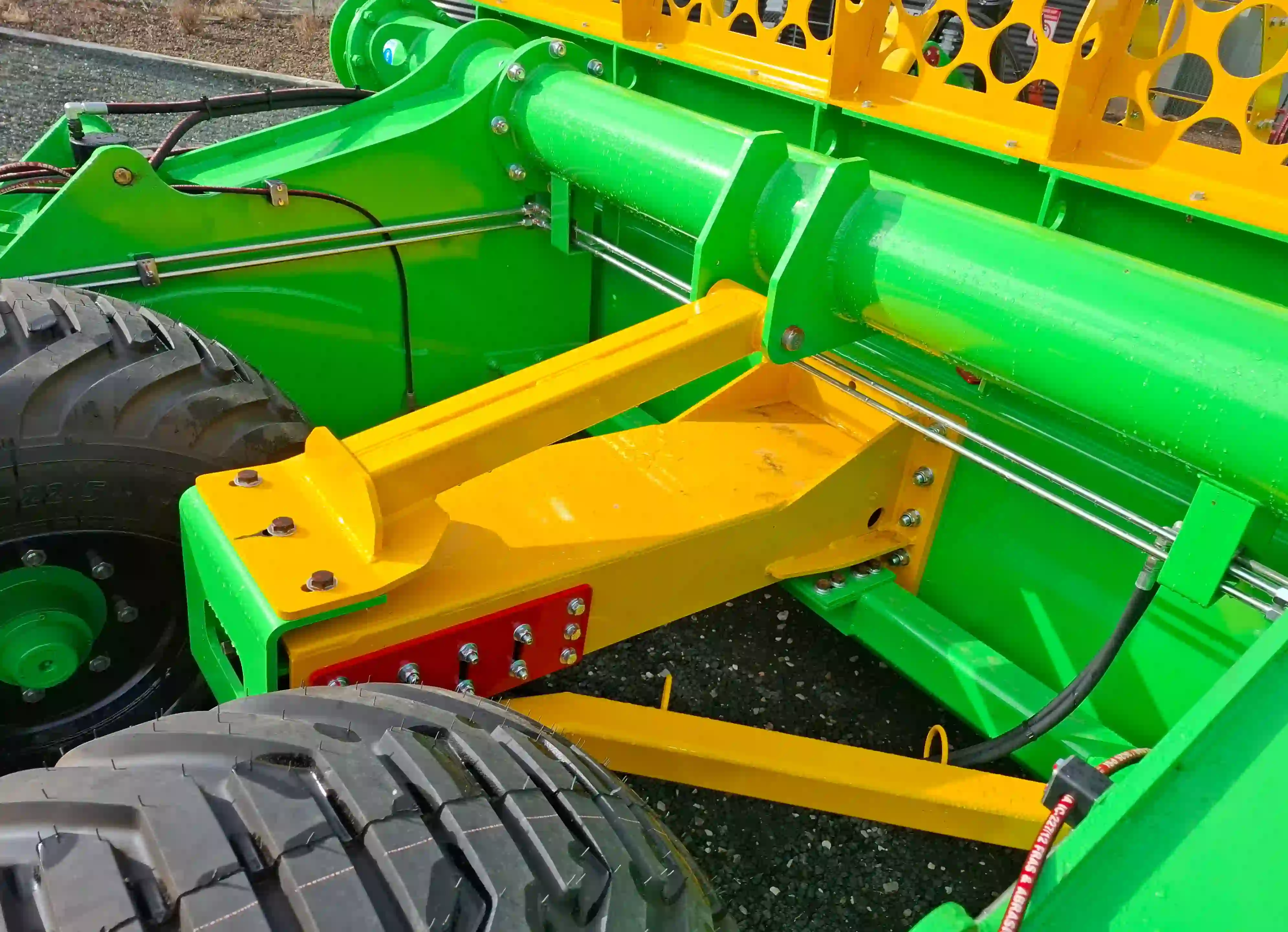

  • Honey Badger Ejector Rocker view 7

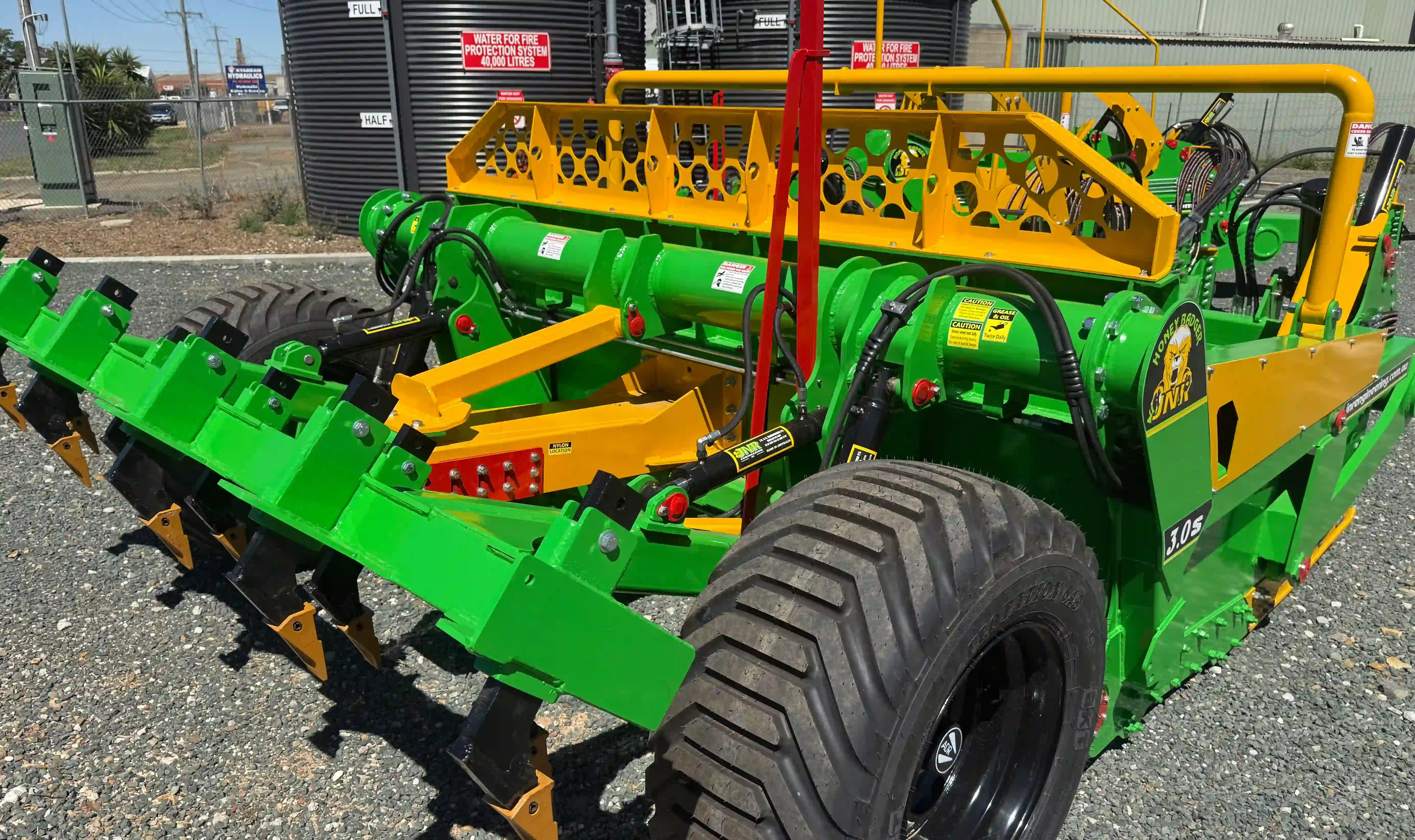

  • Honey Badger Ejector Straight view 1

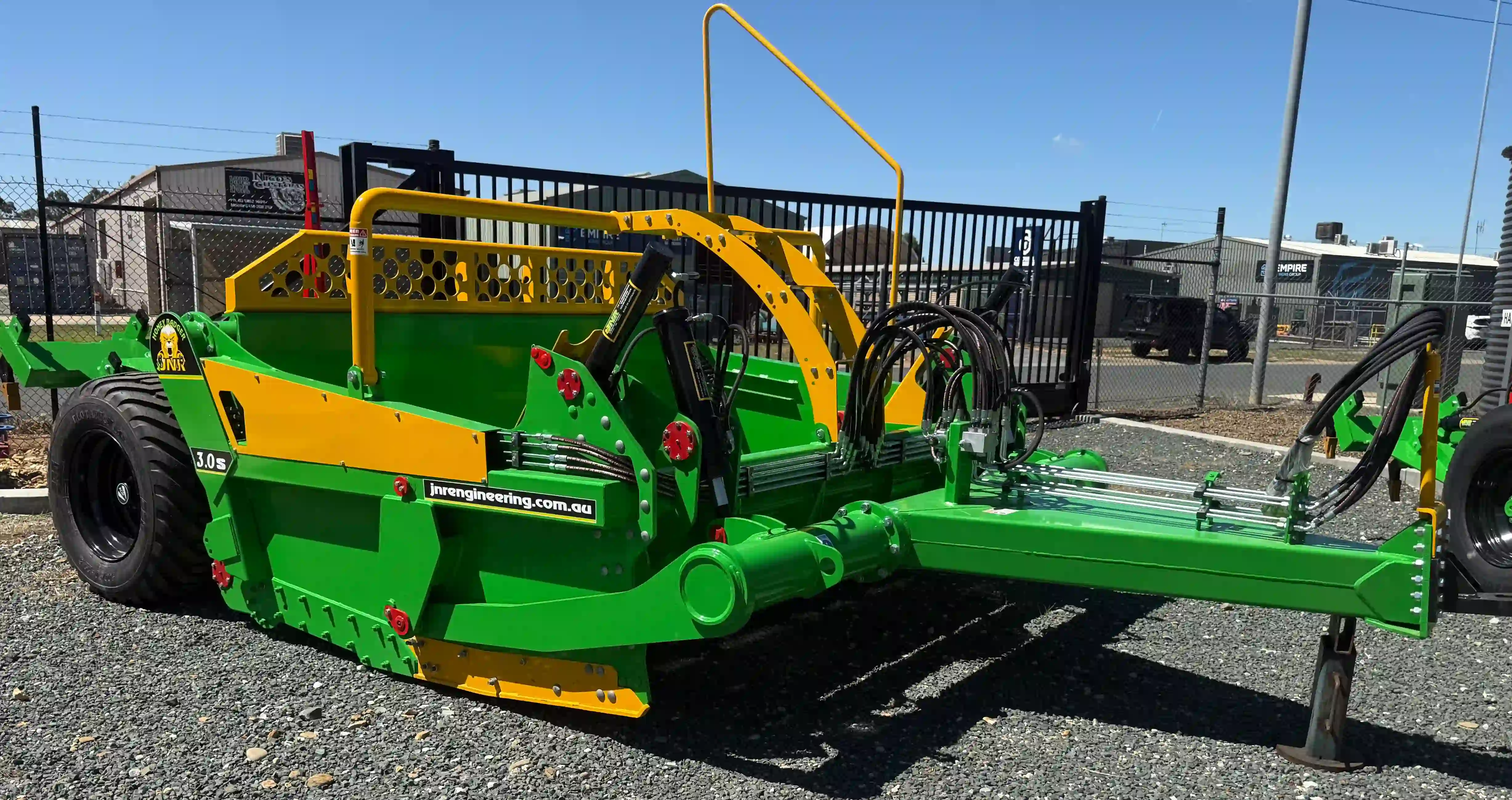

  • Honey Badger Ejector Straight view 2

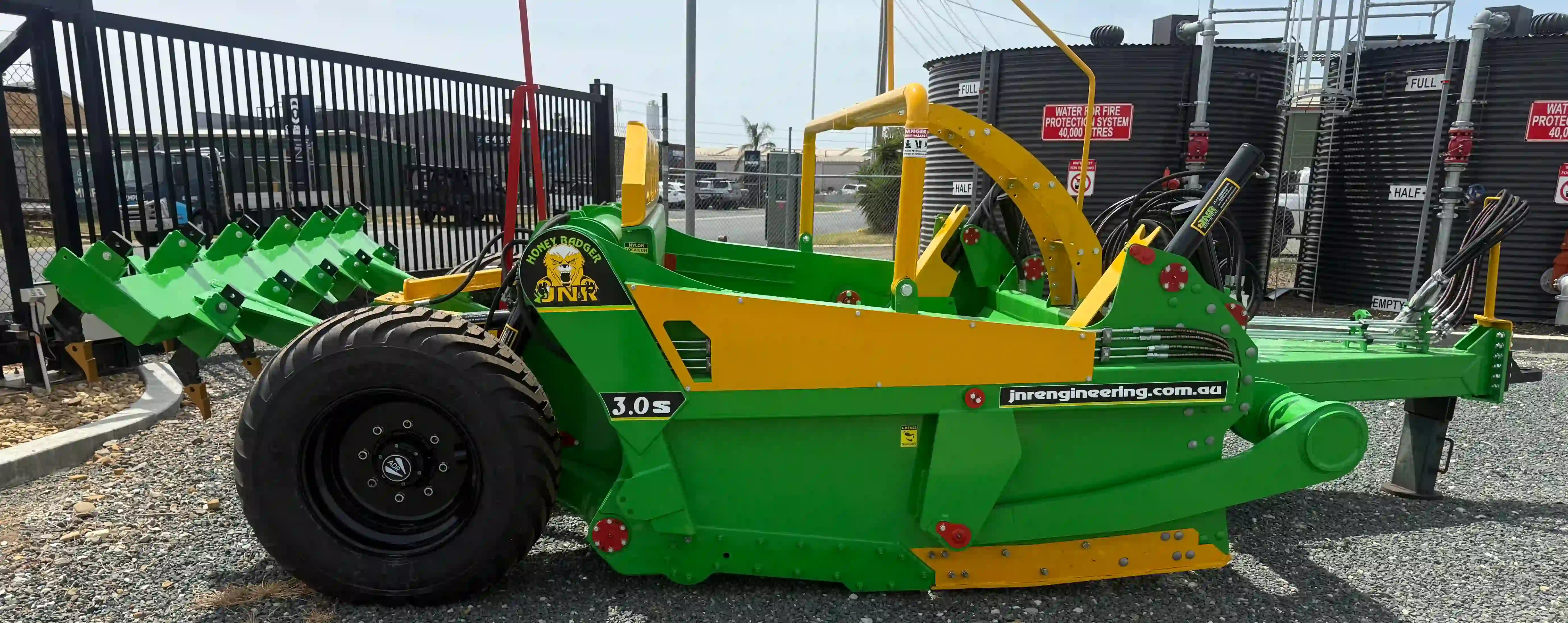

  • Honey Badger Ejector Straight view 3

The All NEW Honey Badger DE is a move away from our traditional ejecting mechanism. With this we believe we have created a more versatile easy to use machine excelling at digging, grading, carrying and ripping with a compact size and robust design. Equipped with extra-high lift and generous cross tilt, the newly designed single cylinder ejecting tailboard. This Ejector model is suitable for bigger areas, higher HP tractors and provides a more productive and higher capacity machine over the DA. Offering 2 versions, DE S (straight axle, 2 Tyres) and DE R (rocker, 4 tyres)

  • Removable overhead frame now adds the possibility of top loading.
  • Straight axle using 500mm wide flotation tyres create a stable ride, resulting in a precise finish.
  • Rocker axle uses 4 of 15R super single tyres offering superior ground speed and offering a better finish.
  • Power Pack available for feeding behind Ute
  • String Box safely and conveniently stores away your string and wrap
  • Additional extras include adjustable skids and a double row ripper system giving you the luxury of softening the ground to be cut due to its ‘rear-wheelposition’, offering a better weight distribution. L series cushion hitch for a better ride for you the tractor and the machine.
