Polar Bear
Polar Bear product icon

Polar Bear

500 - 600 HP

Ejector (PB)

The supreme bulking work machine and our largest. Ideal for contractors and larger farmers. Cushion Hitch and Sequence Valve included as standard.

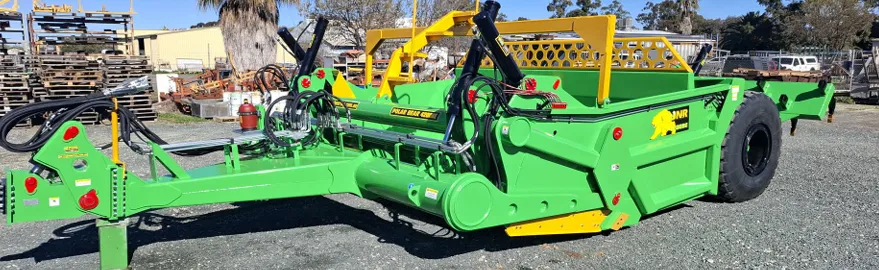

Polar Bear PB product

What's in Polar Bear

Ejector (PB)
Specs Polar Bear 3.6 Polar Bear 4.2
Tractor Horsepower Range 500 - 550 550 - 600
Struck Capacity (approx.) 12.9 m³ 15 m³
Heaped Capacity (approx.) 19 m³ 22 m³
Cutting Width 3600 mm 4200 mm
Overall Width 3900 mm 4500 mm
Overall Length 9015 mm 9015 mm
Overall Height 2477 mm 2477 mm
Apron Opening 1400 mm 1400 mm
Maximum Cutting Depth 142 mm 142 mm
Cutting Edge Clearance 781 mm 781 mm
Clearance Under Rear 669 mm 669 mm
Cross-Level Standard Standard
Shipping Weight (approx.) 15000 kg 17000 kg
Weight at Drawbar (approx.) 4500 kg 5100 kg
Floating Axle Standard Standard
Tyres 26.5 x 25 26.5 x 25
Cutting Edge 10" Bevel Dual Hole 10" Bevel Dual Hole

Ejector (PB)

500-600 HP, 22.0³ capacity. Built for supreme bulking performance, the Polar Bear combines 3° cross-levelling, X-Series cushion hitch comfort, sequence-valve safety, and versatile ripper/blade/hitch options.

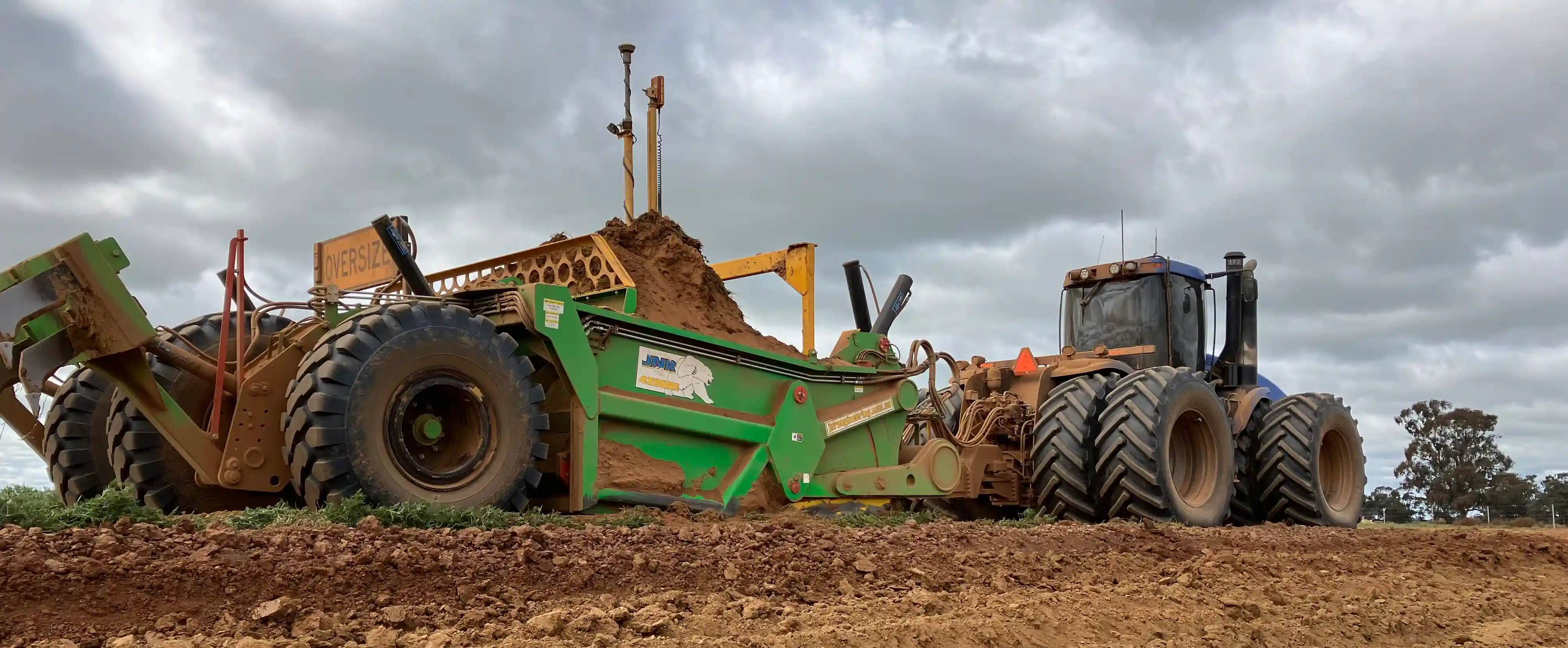

  • Polar Bear Ejector view 1

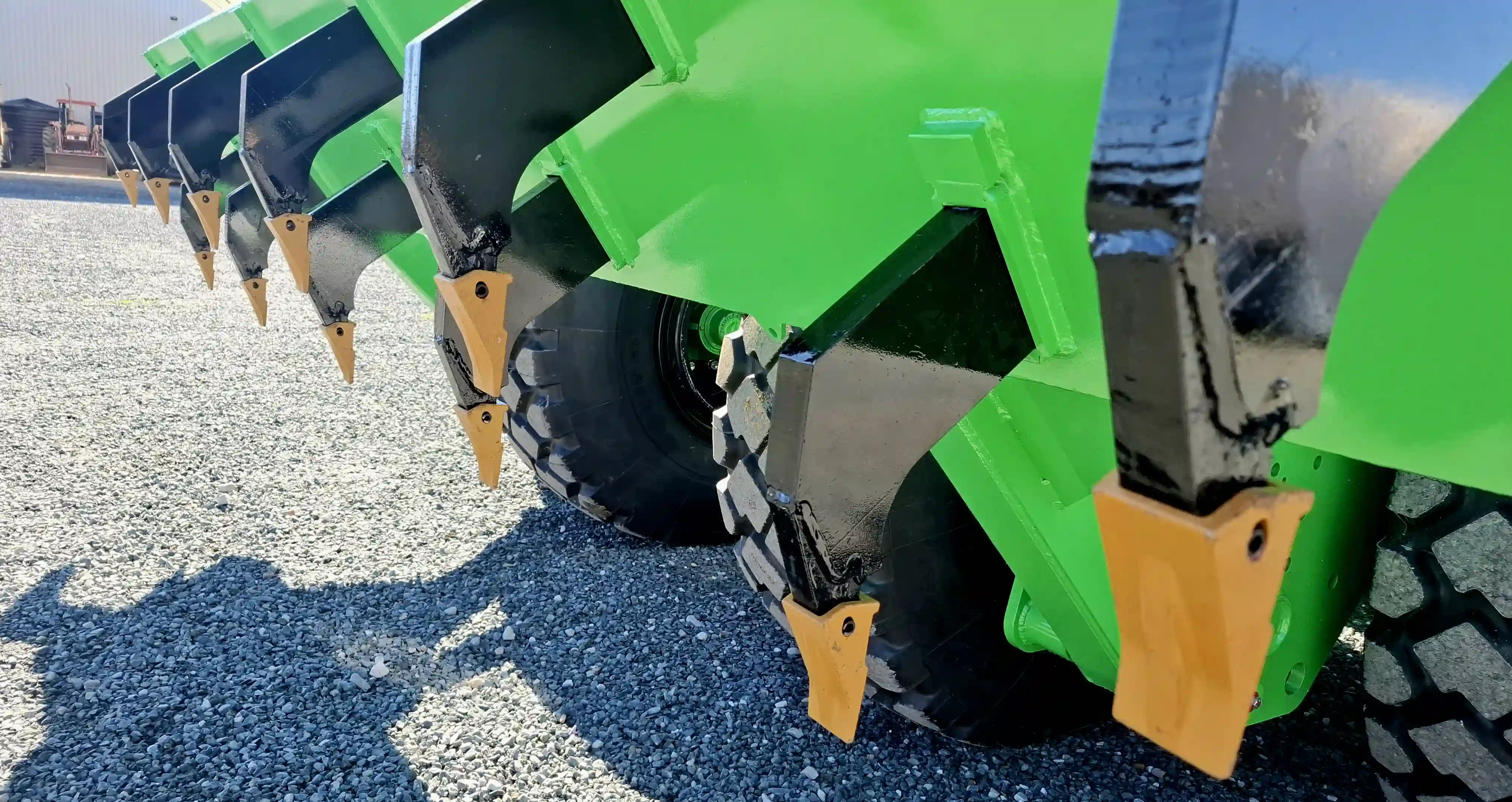

  • Polar Bear Ejector view 2

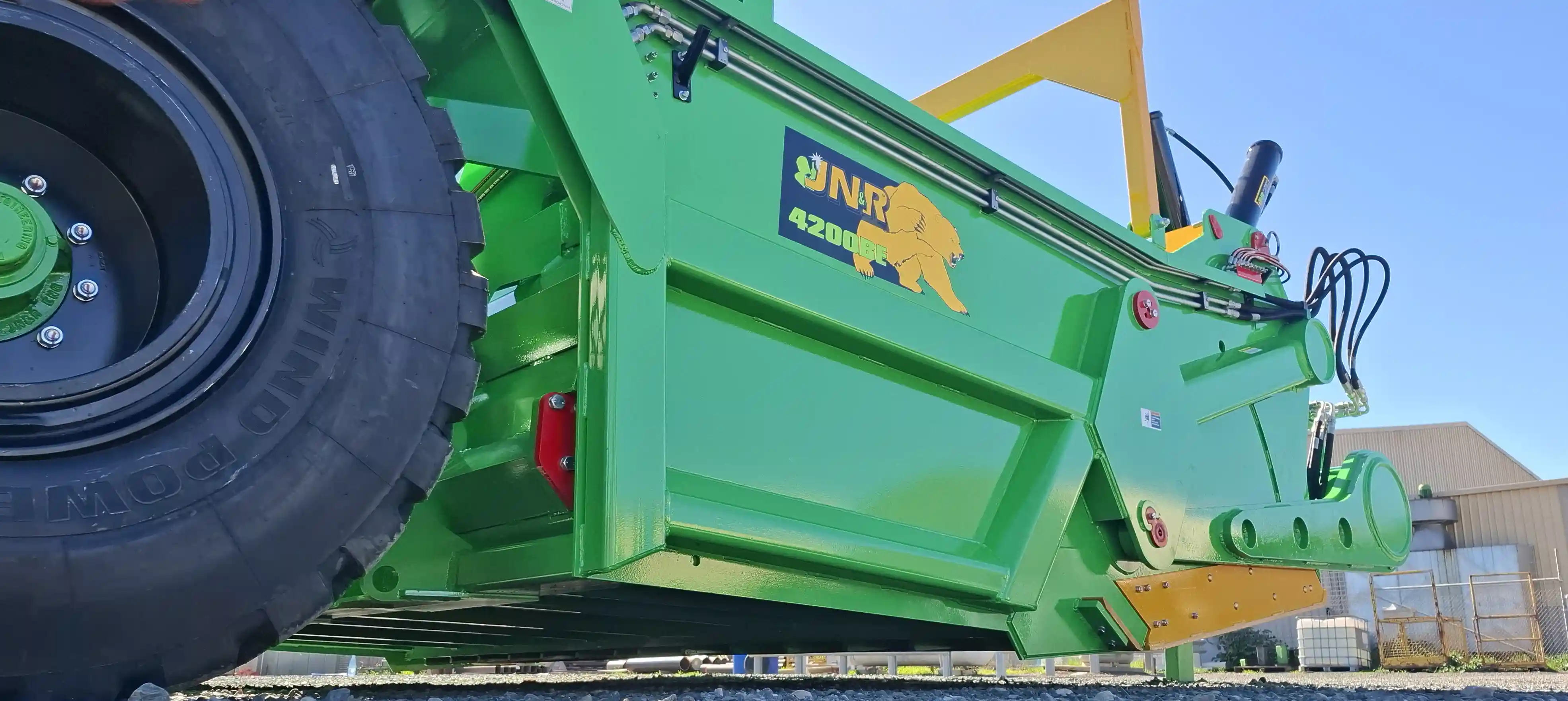

  • Polar Bear Ejector view 3

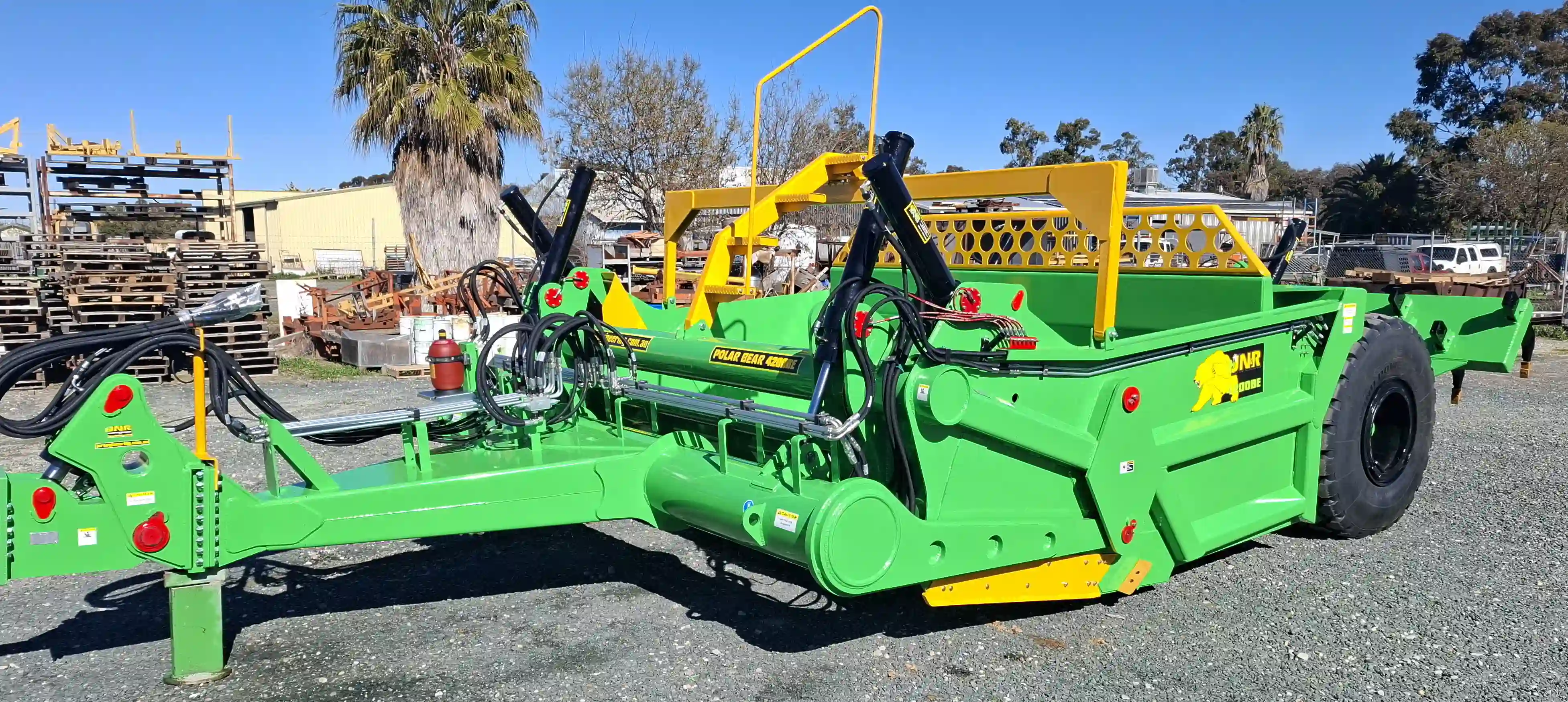

  • Polar Bear Ejector view 4

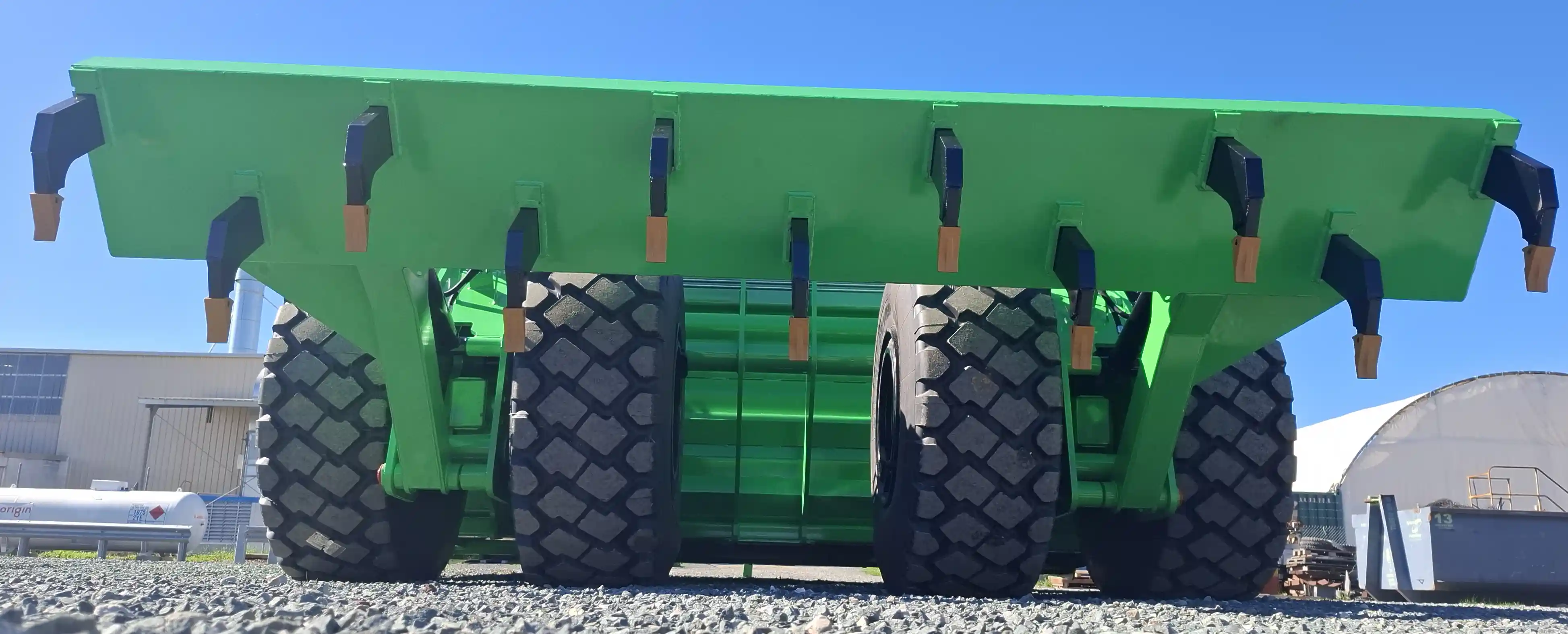

  • Polar Bear Ejector view 5

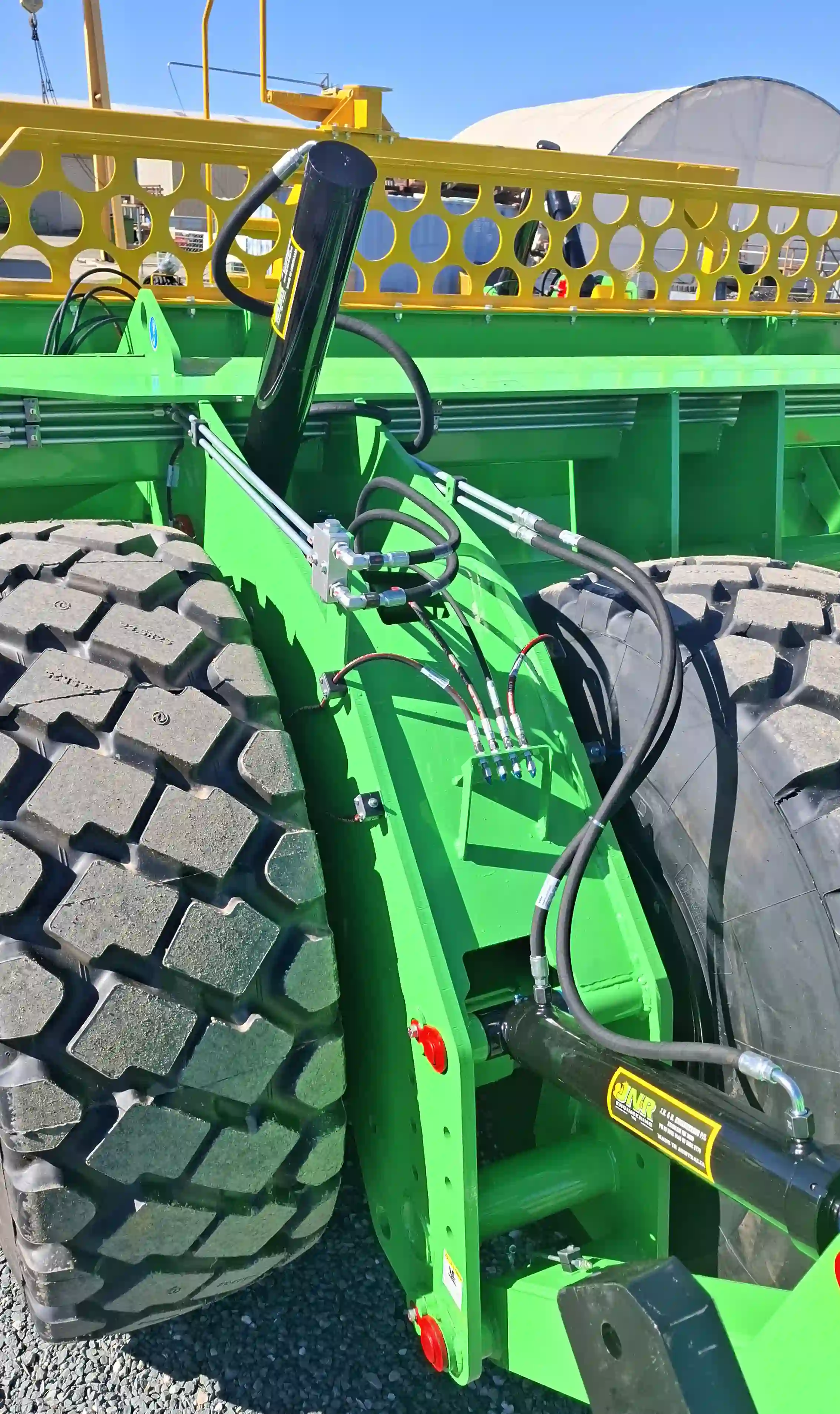

  • Polar Bear Ejector view 6

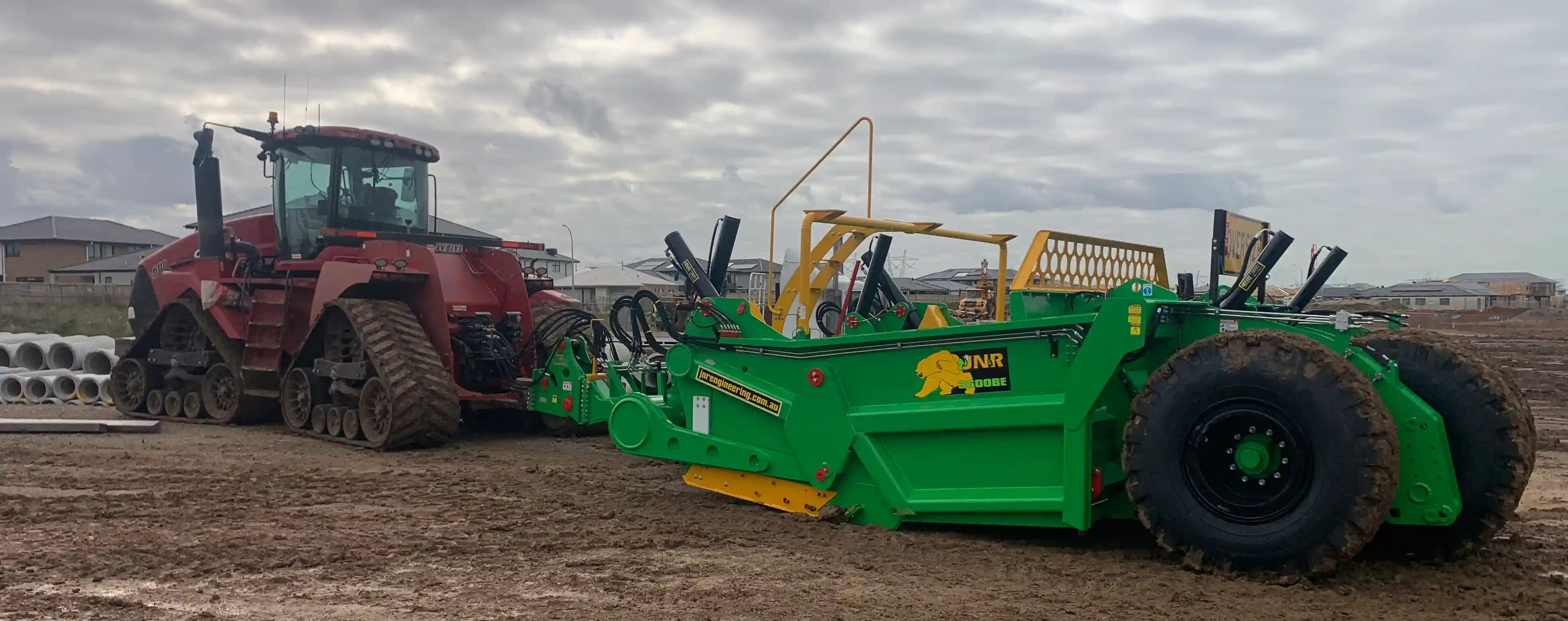

  • Polar Bear Ejector view 7

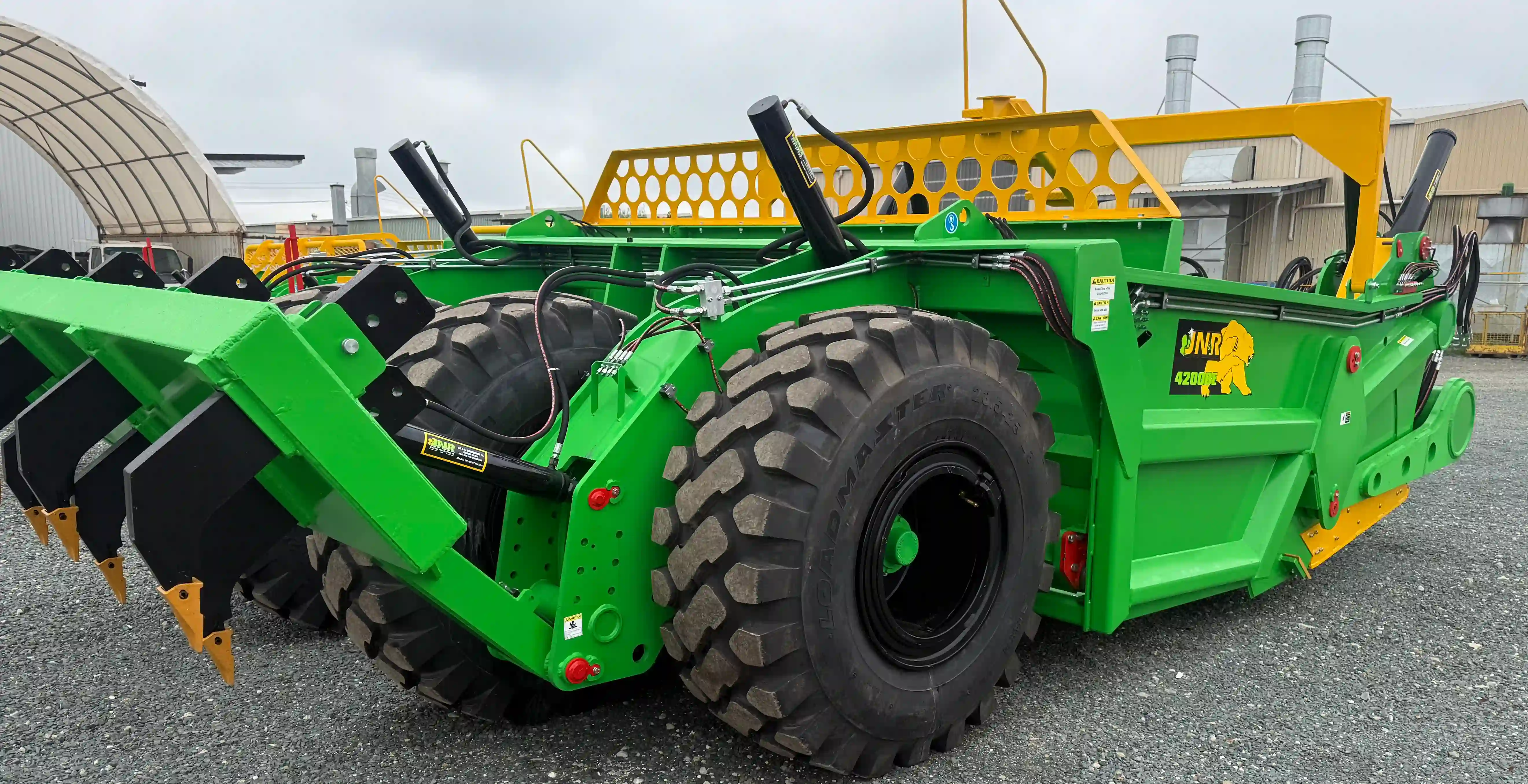

  • Polar Bear Ejector view 8

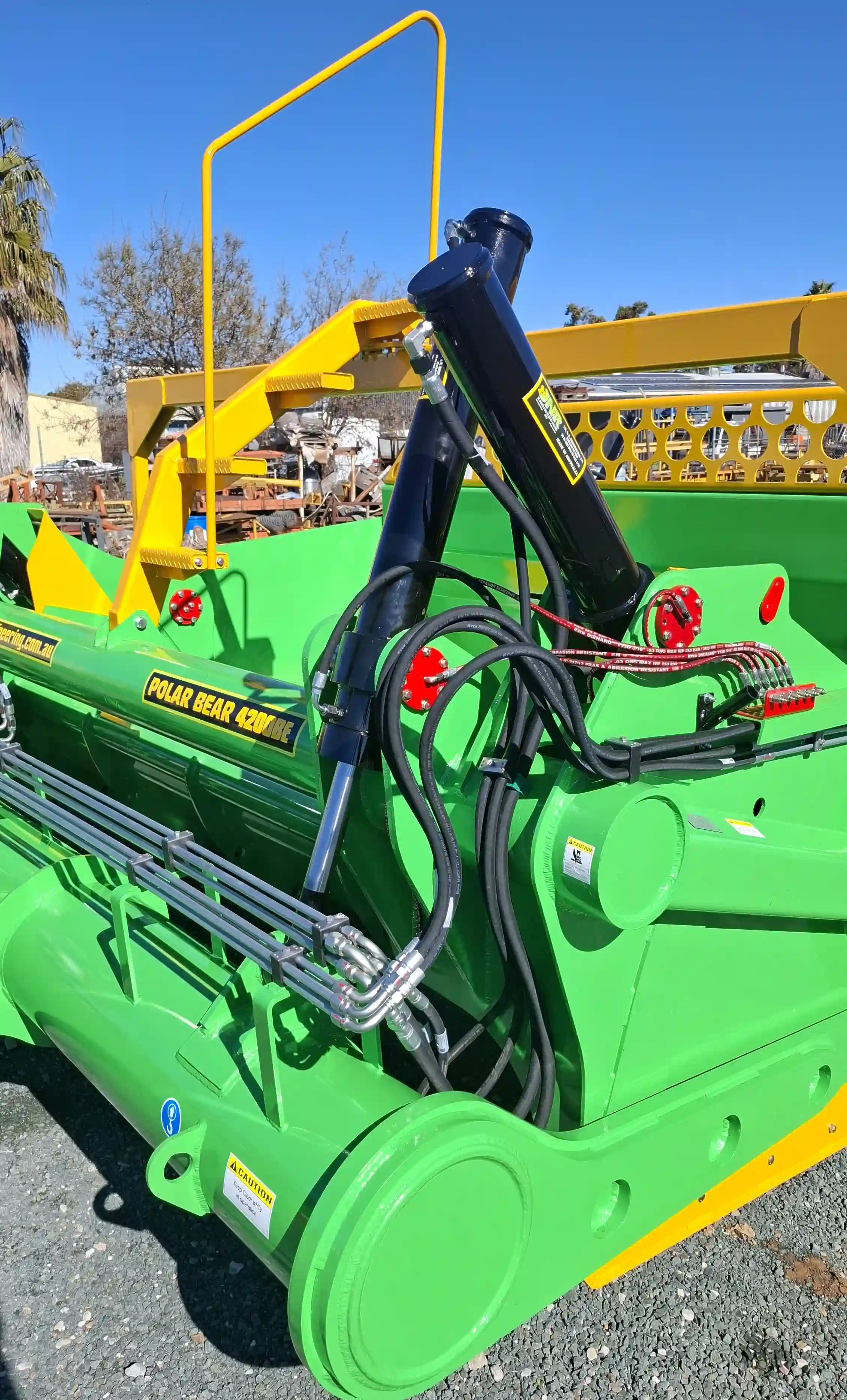

  • Polar Bear Ejector view 9

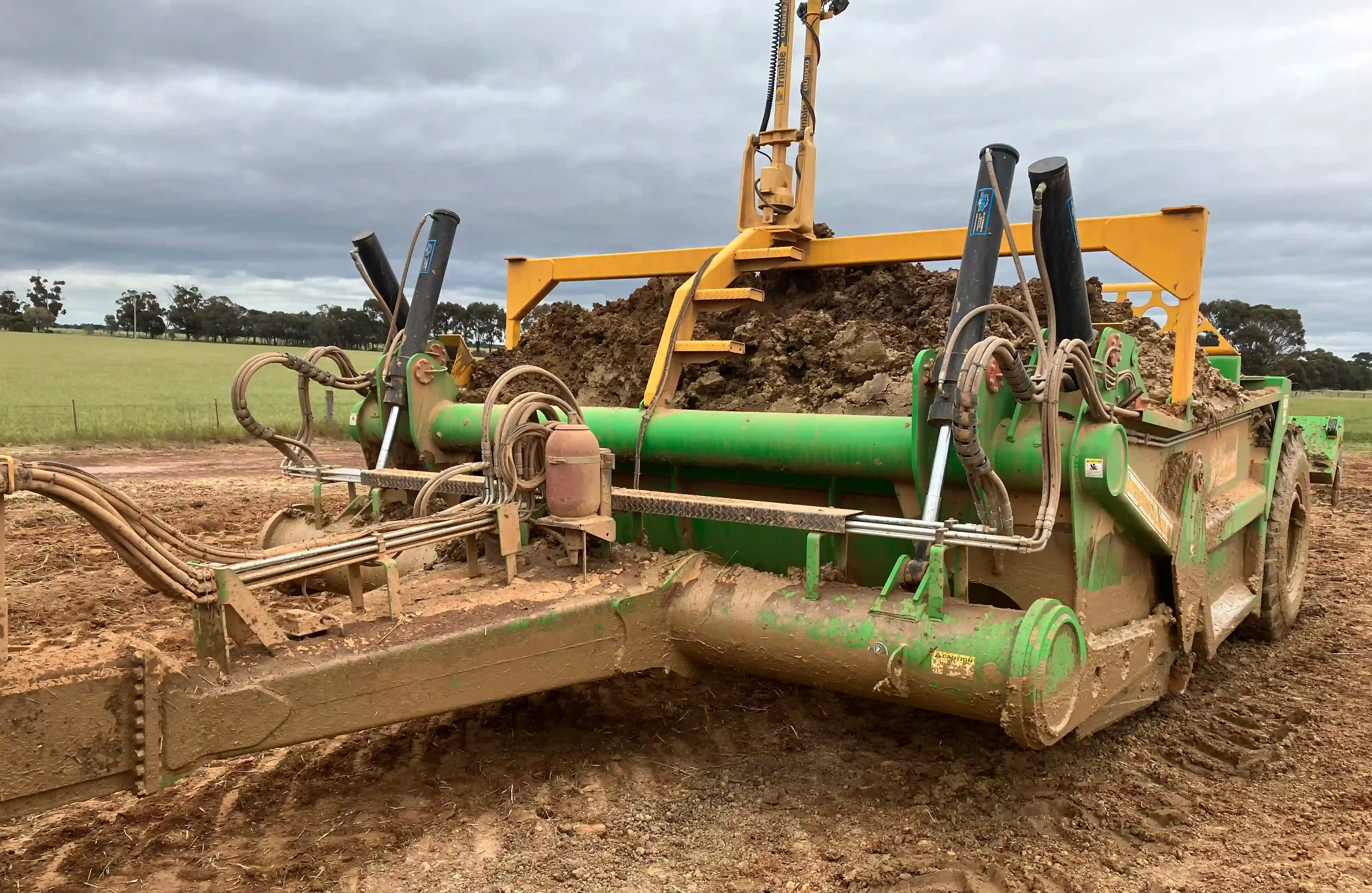

  • Polar Bear Ejector view 10

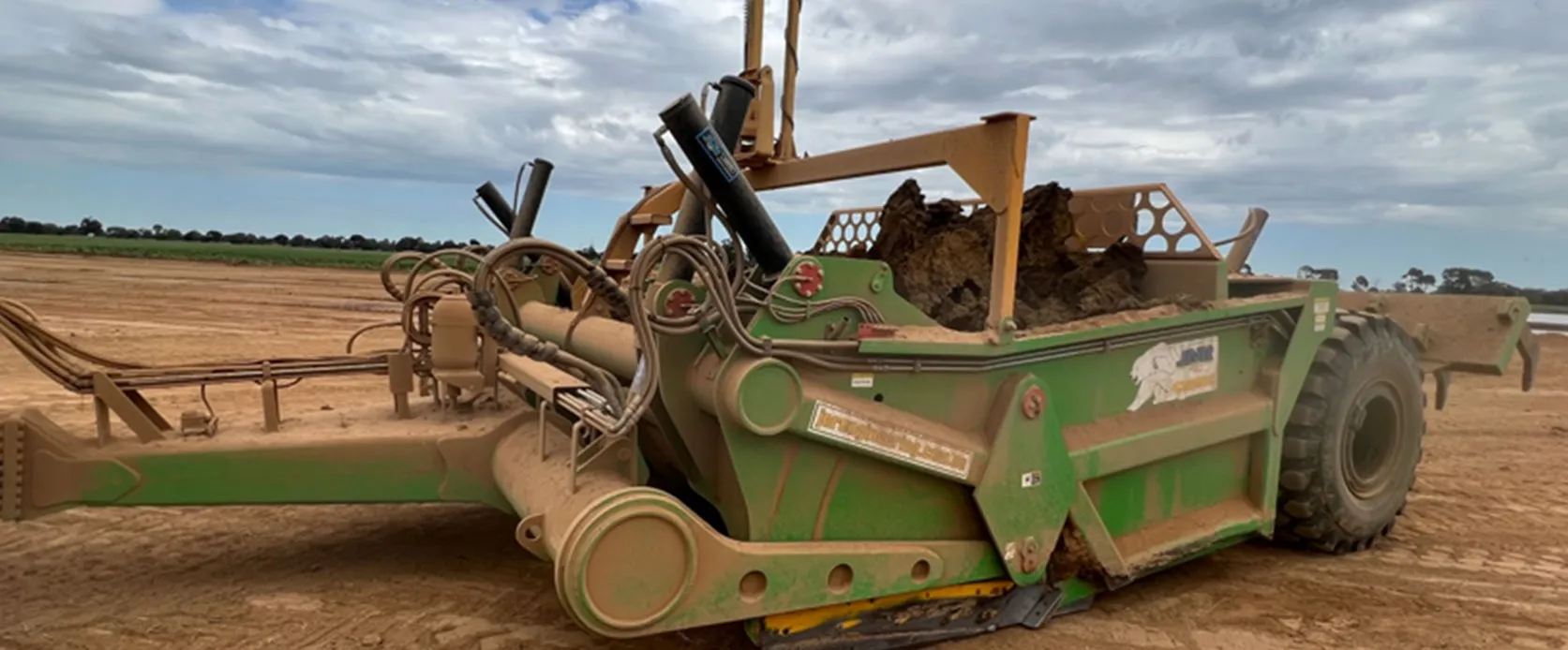

  • Polar Bear Ejector view 11

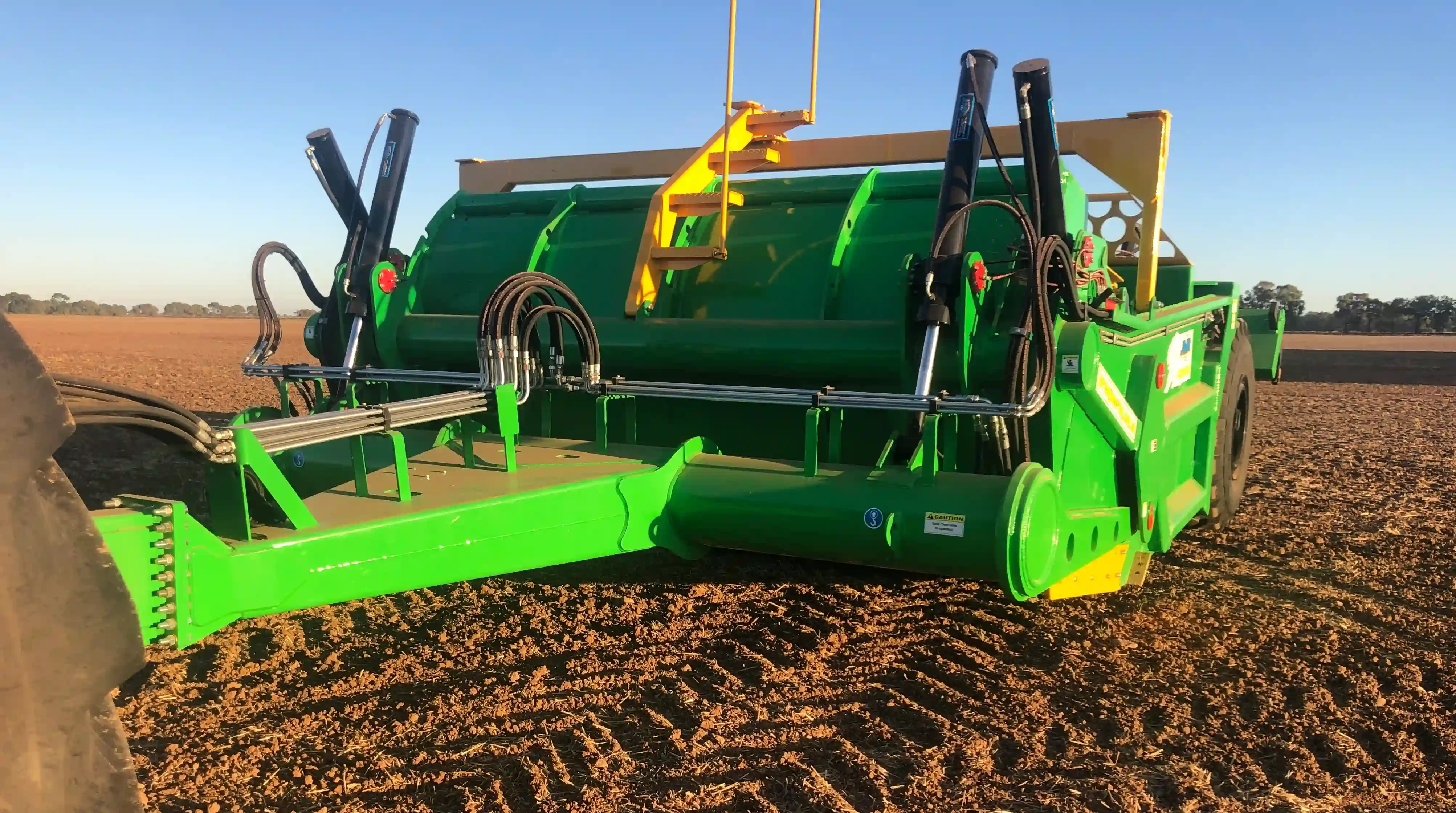

  • Polar Bear Ejector view 12

Your search is over. The Polar Bear is by far the most supreme machine for bulking work on the market today and with operating features and benefits as impressive as these, you’ll be blown away by the Polar Bear’s performance.

  • Skilfully engineered Cross-Leveller provides an advantageous 3° side tilt - left and right. As a bonus, these Cross-Levellers also function as dual lift which alters the cutting angle allowing for a different angle of contact to the earth. Generous clearance to the underside of the machine is also achieved.
  • Enjoy ultimate performance and driver comfort with an X-Series Cushion Hitch and incorporated Cup on the Polar Bear. You’ll be glad for this standard inclusion arrangement on such a hefty machine.
  • Your safety is our priority which is why we’ve included, as a standard feature on the Polar Bear, a Sequence Valve marrying the Apron / Tailboard functions together. This acts as a fail-safe, preventing damage to the machine by eliminating potential incorrect operation.
  • Single row rippers tickle the ground helping to contain weeds and assist in getting a load full of dirt.

Boost the already impressive working specifications with modifications from our range of optional inclusions to customize the Polar Bear just how you like it:

  • An optional 50mm tyne Ripper system with the choice of single (9) or double row (11) tyne configuration
  • Bolt on Stinger Blade allowing for a more aggressive cut.
  • Tandem Hitch option, giving you the ability to double your work, not your effort.
