Shark
Shark icon

Shark

100 - 450 HP

CF, DG, LP

Finishing Range. From confined spaces to broad acreage, our Shark finishers: Compact Finisher | Drag Grader | Land Plane, are perfect for all types of finishing and touch ups.

Shark product LP series

What's in Shark

Agricultural scraping. The CS, DG and LP have all sizes and functions covered. From the smallest scrapers: 1.8m to the very biggest: 9.0m, there's no room left in the market for anything other than a JNR Shark Scraper.

Shark CF Shark DG Shark LP
Specs Shark 2100 Shark 2400 Shark 2700 Shark 3000 DG 3600 DG 4200 LP 6000 LP 7000 LP 8000 LP 9000
Tractor Horsepower Range 100-130 120-140 140-160 160-180 160-190 180-220 250-300 300-350 350-400 400-450
Cutting Width 2100mm 2400mm 2700mm 3000mm 3600mm 4200mm 6000mm 7000mm 8000mm 9000mm
Overall Width 2100 mm 2400 mm 2700 mm 3000 mm 3646 mm 4246 mm 6130 mm 7130 mm 8130 mm 9130 mm
Overall Length 3075 mm 3075 mm 3075 mm 3075 mm 6034 mm 6034 mm 7460 mm 7460 mm 7460 mm 7460 mm
* Overall Length (Floating Axle) *3360mm *3360mm *3360mm *3360mm N/A N/A N/A N/A N/A N/A
Overall Height 730 mm 730 mm 730 mm 730 mm 1473 mm 1473 mm 2150 mm 2150 mm 2150 mm 2150 mm
Maximum Cutting Depth 60mm 60mm 60mm 60mm 115mm 115mm 115mm 115mm 115mm 115mm
Cutting Edge Clearance 280mm 280mm 280mm 280mm 240mm 240mm 410mm 410mm 410mm 410mm
Cross-Level 3° 3° 3° 3° 9° 9° N/A N/A N/A N/A
Shipping Weight (approx.) 674 kg 770 kg 866 kg 952 kg 2170 kg 2540 kg 3303 kg 3854 kg 4405 kg 4955 kg
Weight at Drawbar (approx.) 202 kg 231 kg 260 kg 286 kg 651 kg 762 kg 991 kg 1156 kg 1322 kg 1487 kg
Floating Axle Optional Optional Optional Optional Standard Standard Standard Standard Standard Standard
Tyres 26 x 12/12 26 x 12/12 26 x 12/12 26 x 12/12 13/55 x 16 13/55 x 16 13/55 x 16 13/55 x 16 13/55 x 16 13/55 x 16
Cutting Edge 6" Curved 6" Curved 6" Curved 6" Curved 6" Curved 6" Curved 6" Curved 6" Curved 6" Curved 6" Curved

Shark CF

100-180 HP, sizes: 2.1m-3.0m. The smallest in the range - the Shark CF, is perfectly suited to laying out pads or for sporting precincts. Small areas or confined space is where the Shark shines.

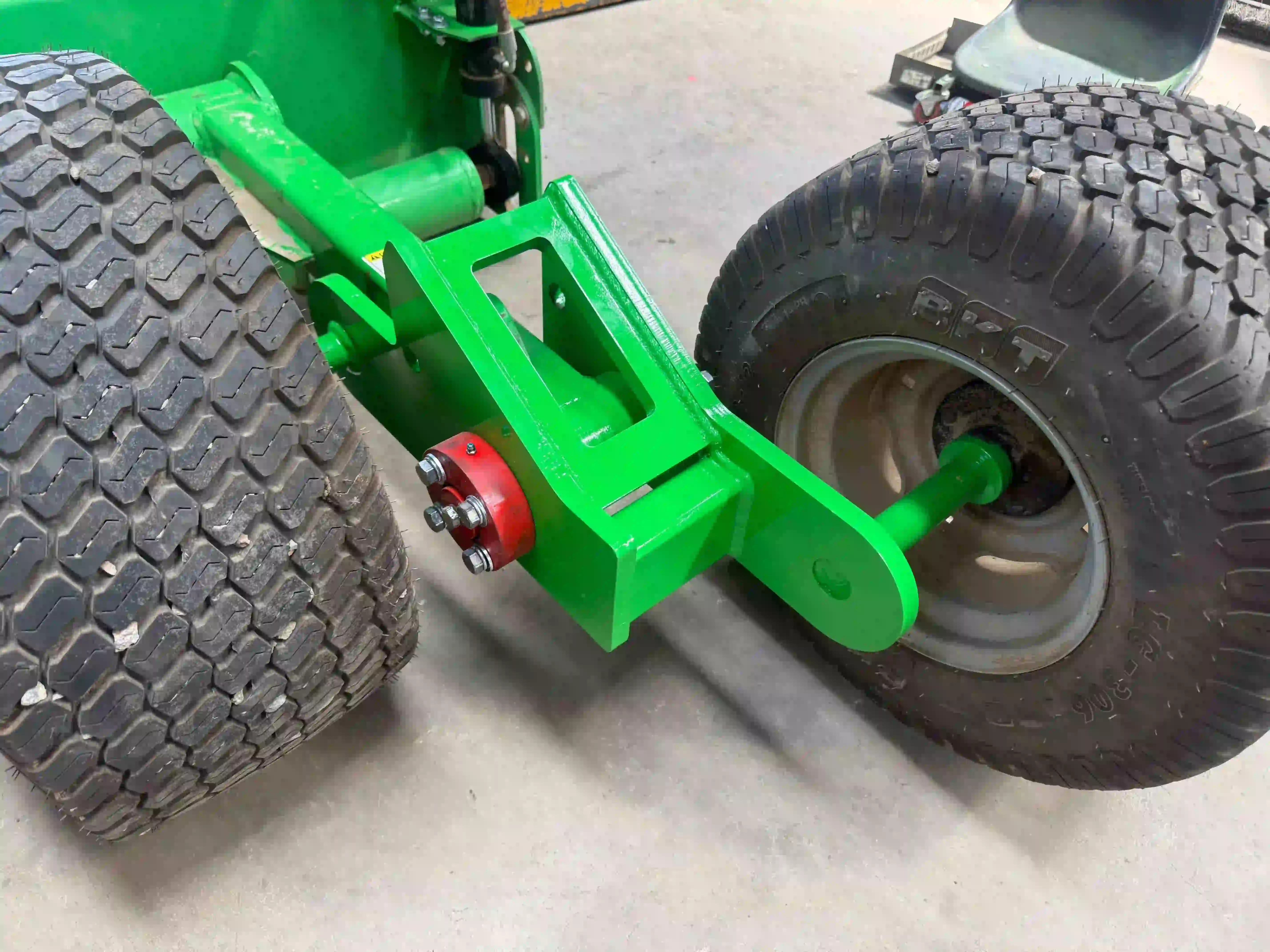

  • Shark cf view 1

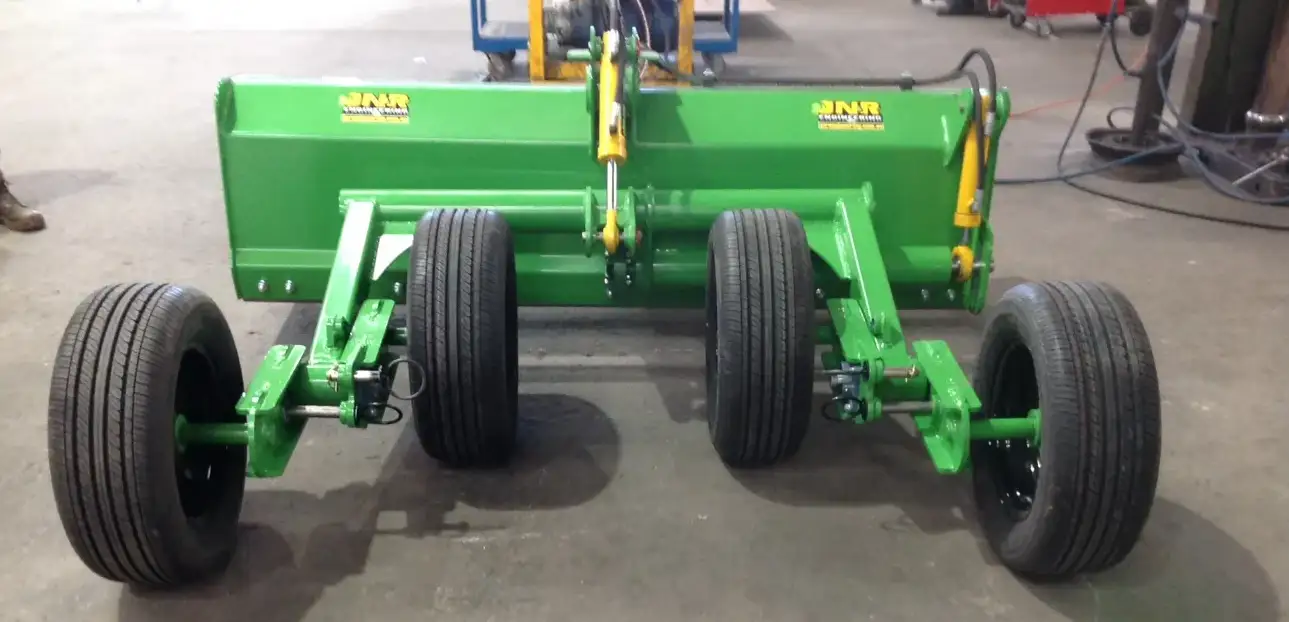

  • Shark cf view 2

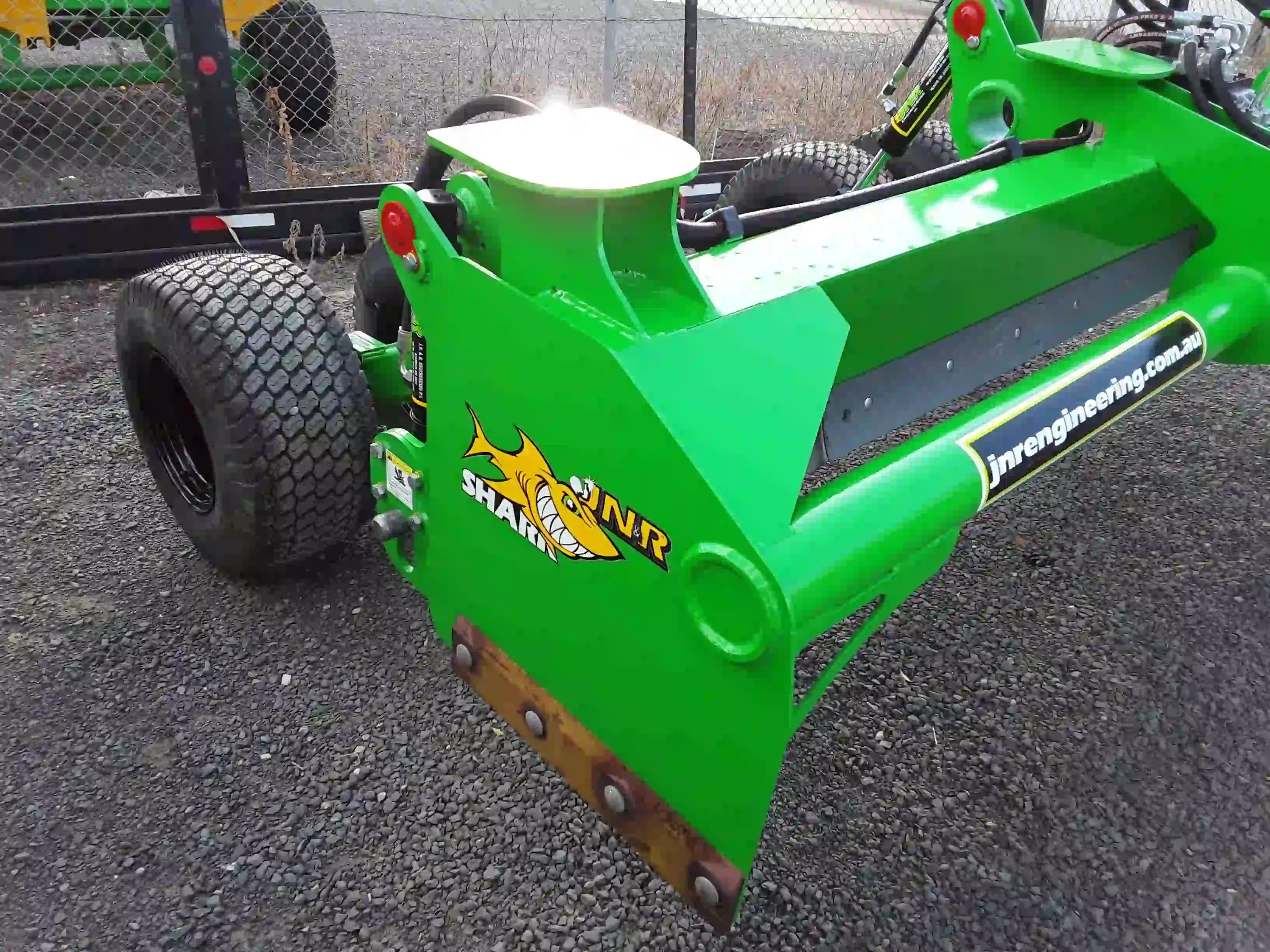

  • Shark cf view 3

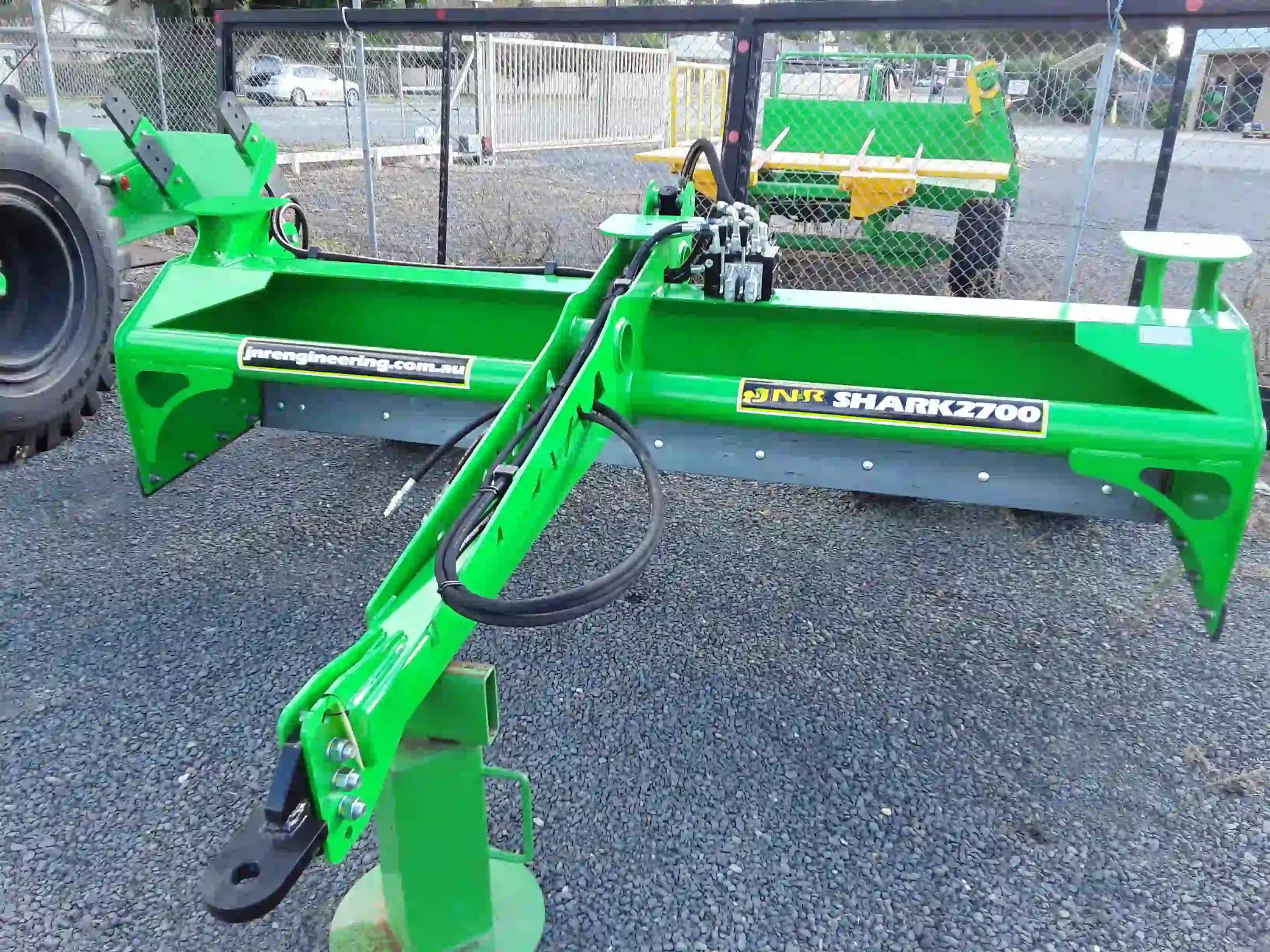

  • Shark cf view 4

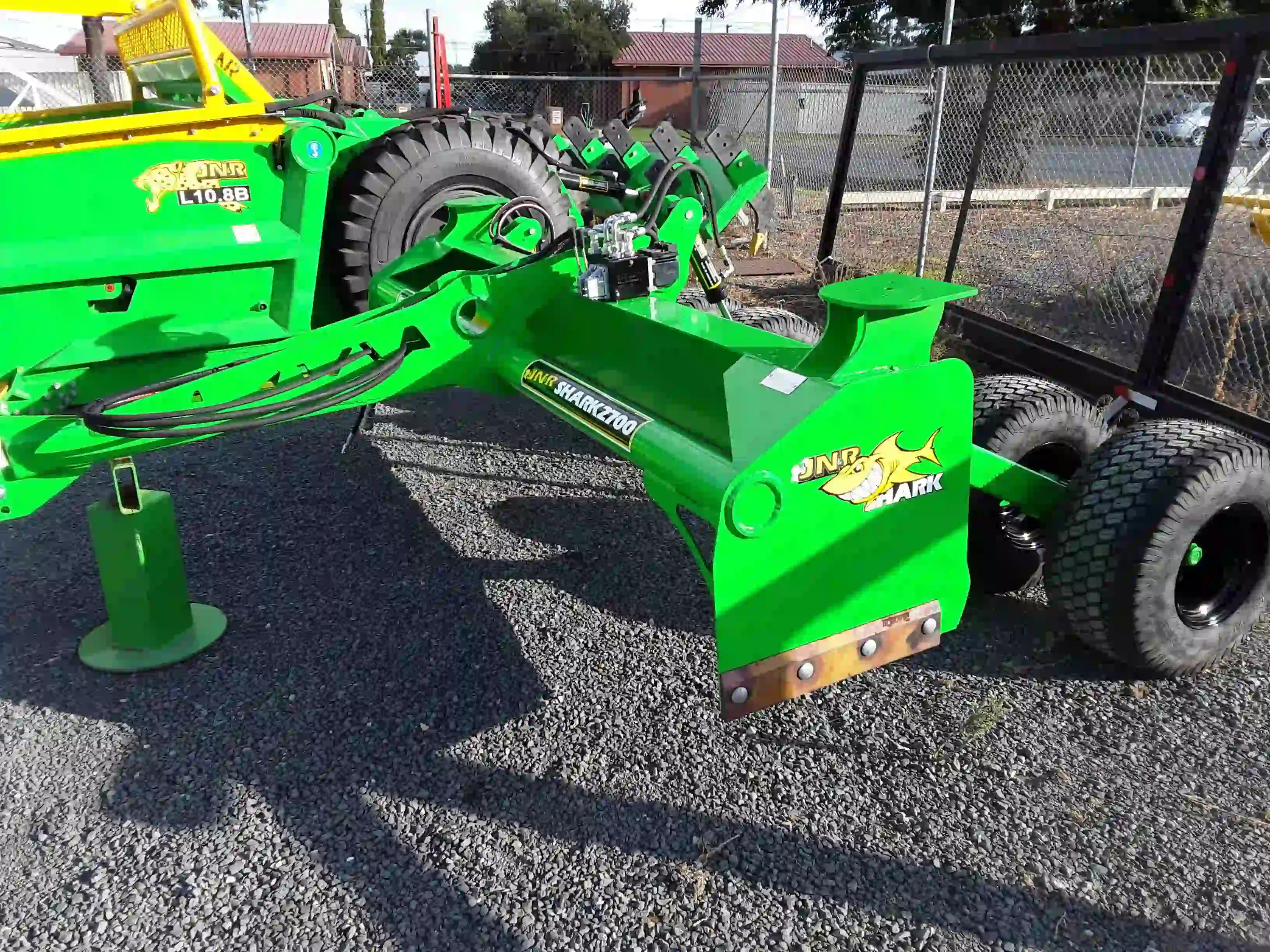

  • Shark cf view 5

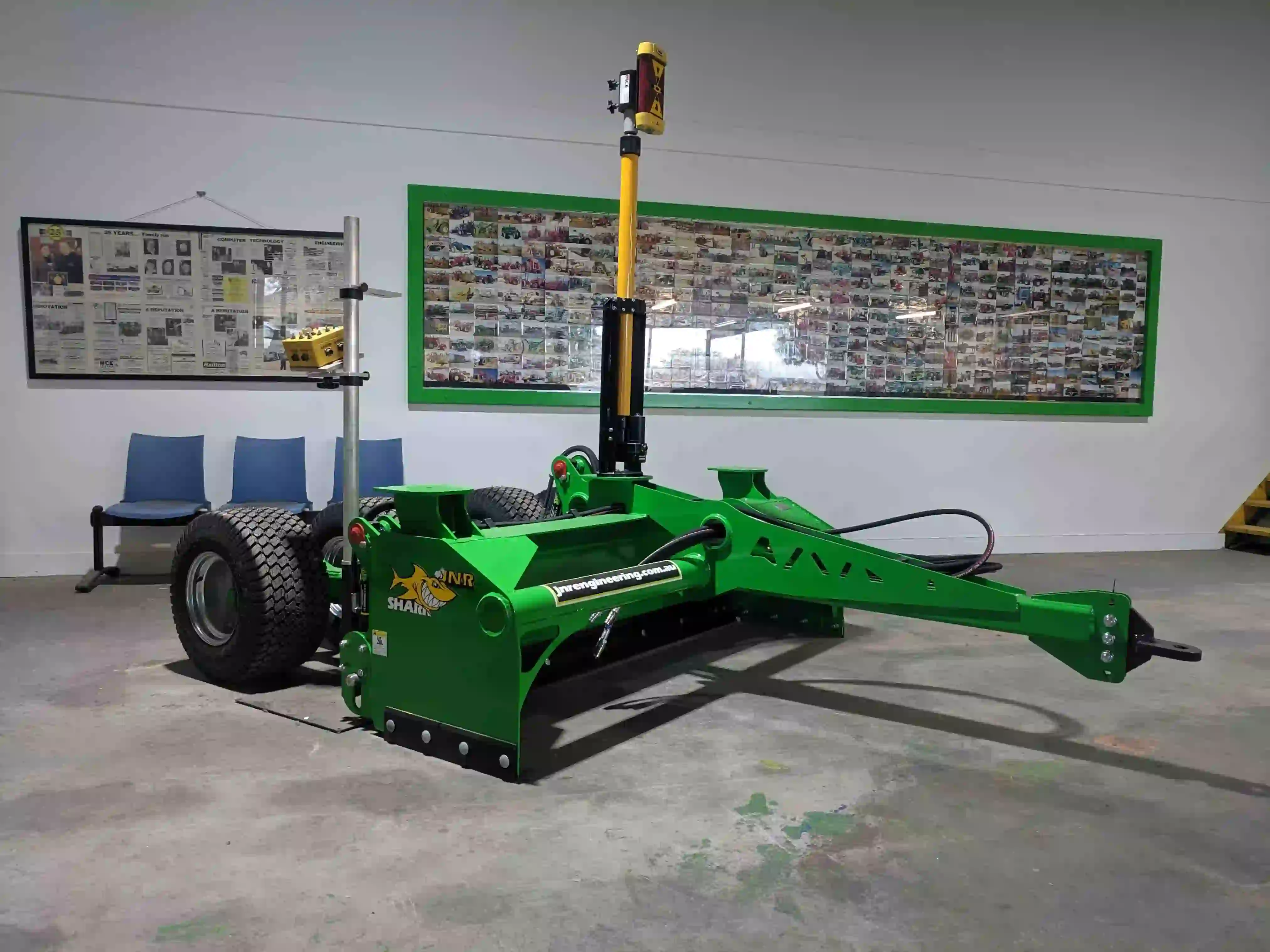

  • Shark cf view 6

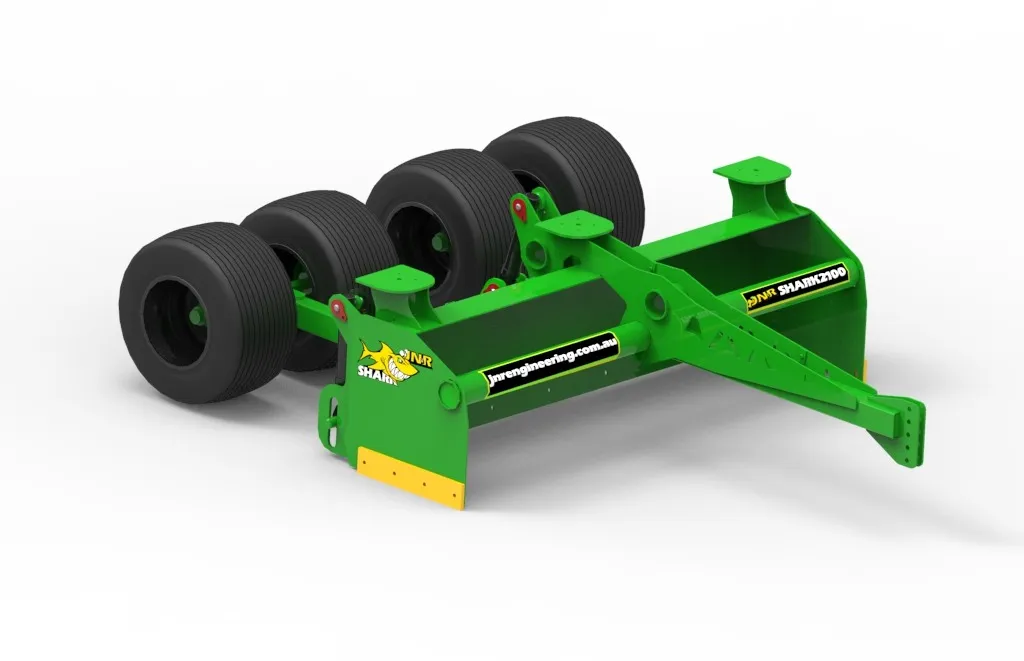

  • Shark cf view 7

Multiple size and tyre configurations allow you to customize your Shark to suit your specific needs as the size of the machine (five sizes ranging from 1.8m to 3.0m) directly correlates with the precision and accuracy of the work being performed. Choose from a straight axle design with tyre combinations of 2, 4 or 6 or floating axles with a 4-tyre set up:

  • The smallest 1.8m machine with a 2-tyre setup is great for tight, fiddly areas or touch-up work.
  • Our biggest 3.0m machine running a 6-tyre combination is ideal for when you need something big, but not a full size scraper like our Land Plane (LP).

Designed with a side tilt function to create an increased cutting angle, cutting drains will be like cutting butter. The Shark can also be fitted with a hydraulic valve or plug into remotes if needed.

Shark DG

160-220 HP, sizes: 3.6m-4.2m. For precision levelling, grading, soil preparation with suspension-like comfort and independent lift capabilities.

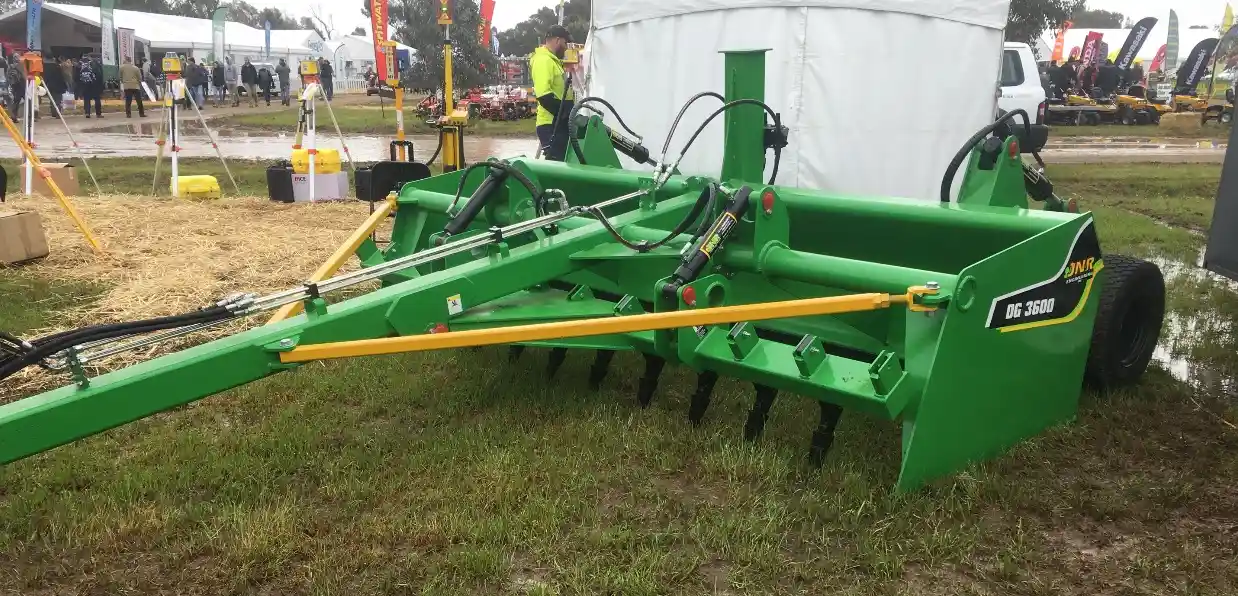

  • Shark DG view 1

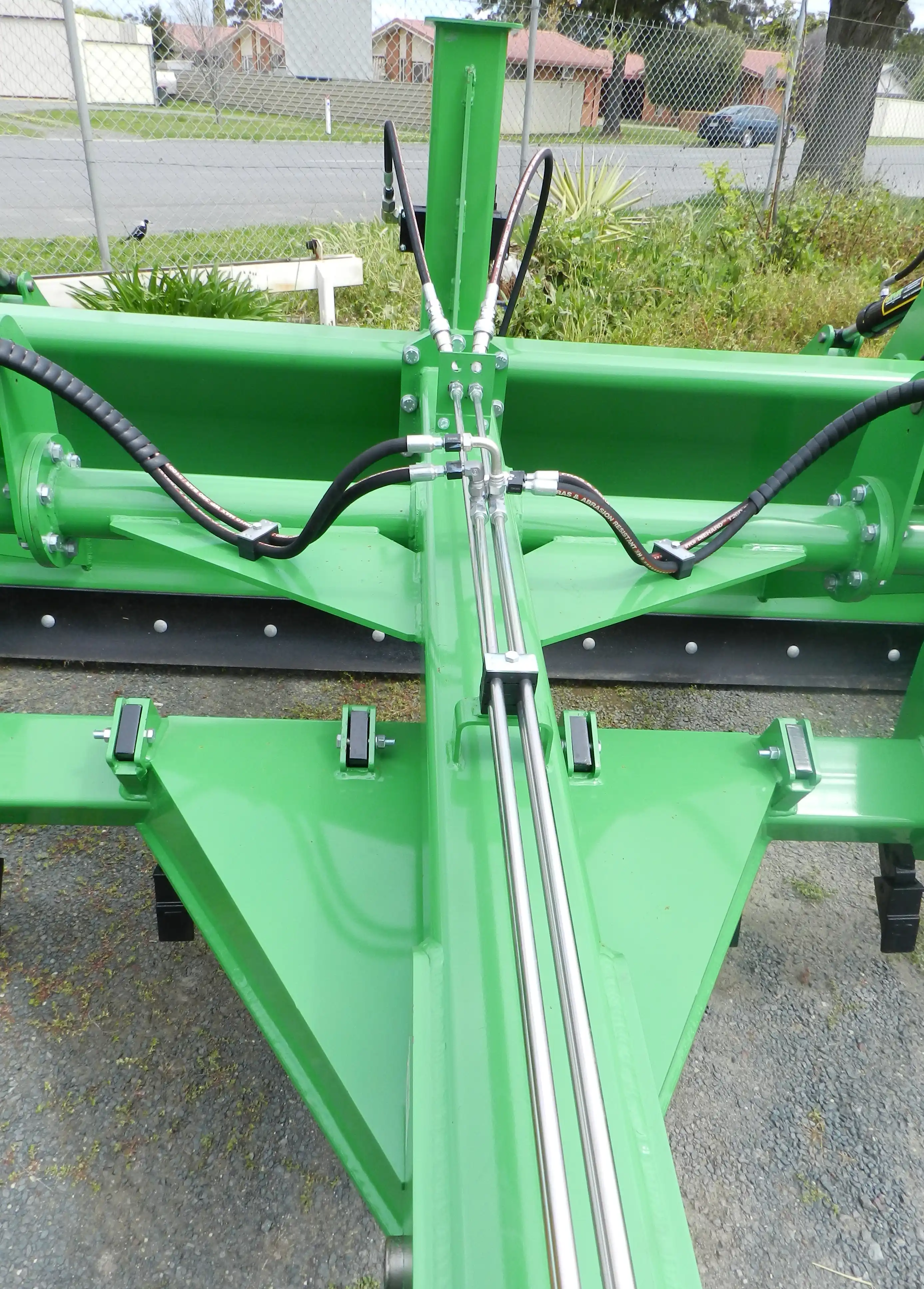

  • Shark DG view 2

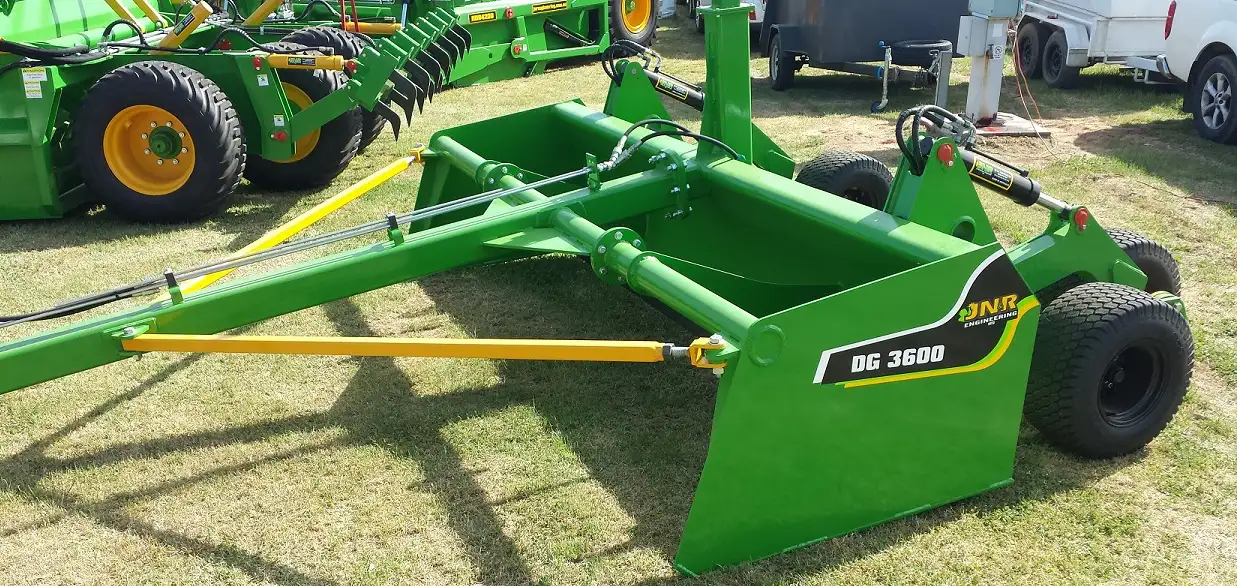

  • Shark DG view 3

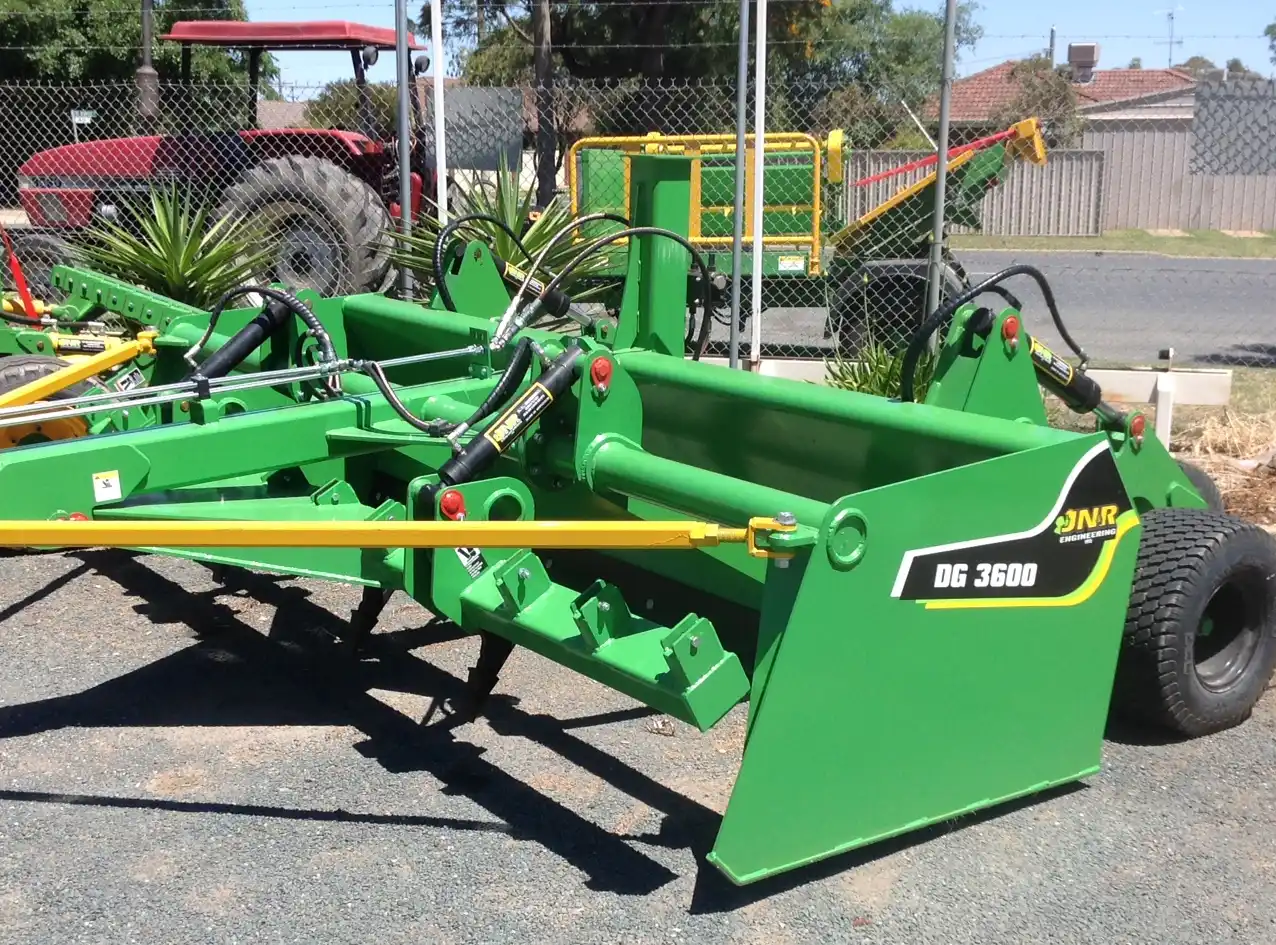

  • Shark DG view 4

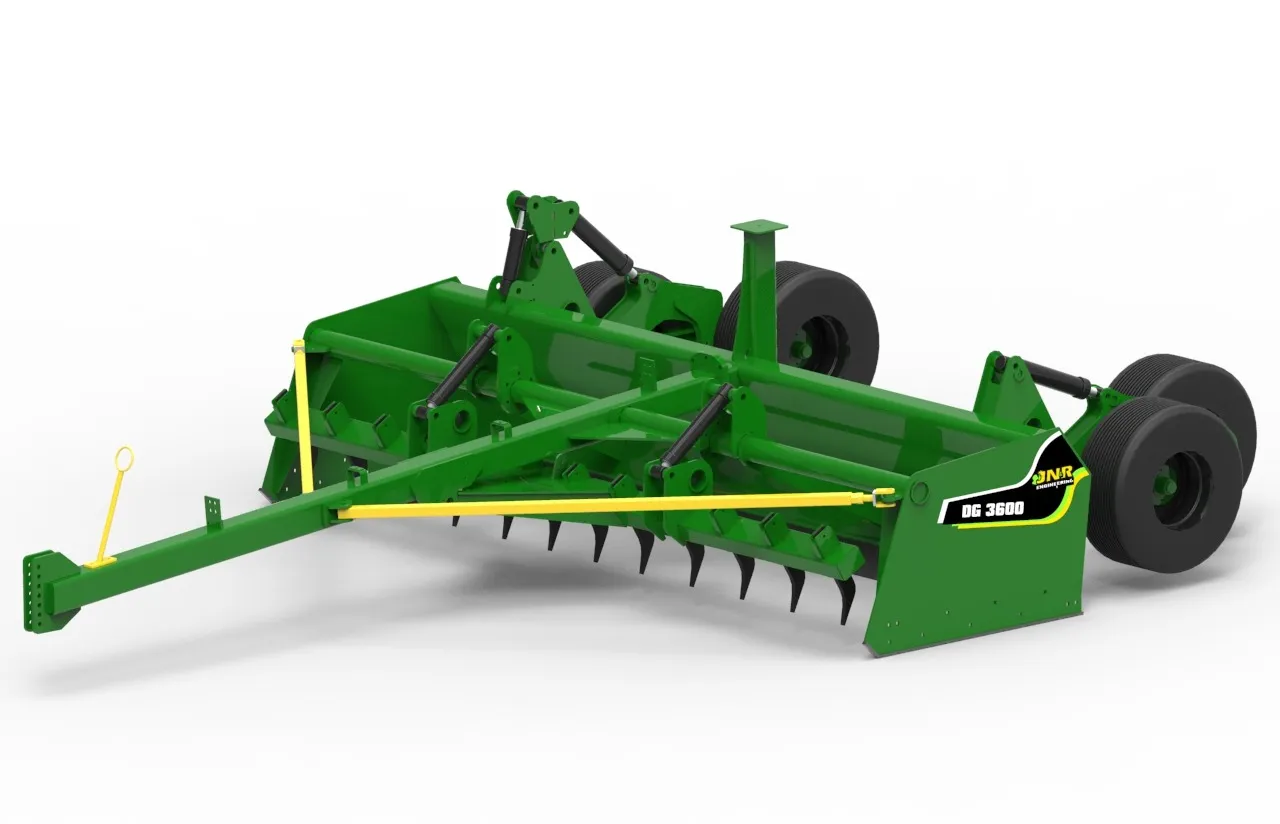

  • Shark DG view 5

The Shark DG is a farmer's dream. Its high sides and blade construction provide impressive cutting and dragging specifications making levelling roughed out fields, forming checkbanks and even rolling simple tasks. The 4-tyre floating axle provides suspension-like qualities increasing grading effectiveness and driver comfort.

  • Available in 3.6m (12') or 4.2m (14'), the DG has independent lift, laser mast plates and skids plates providing precision laser or GPS levelling every time.
  • Optional rippers with heavy duty ripper tynes improve the effectiveness of the DG as the single ripper row gently digs up the earth for a more even finish. Controls can be plugged into remotes or hydraulic valve.

Shark LP

250-450 HP, sizes: 6.0m-9.0m. Serious groundwork machines with auto-fold transport and precision grading for finishing work.

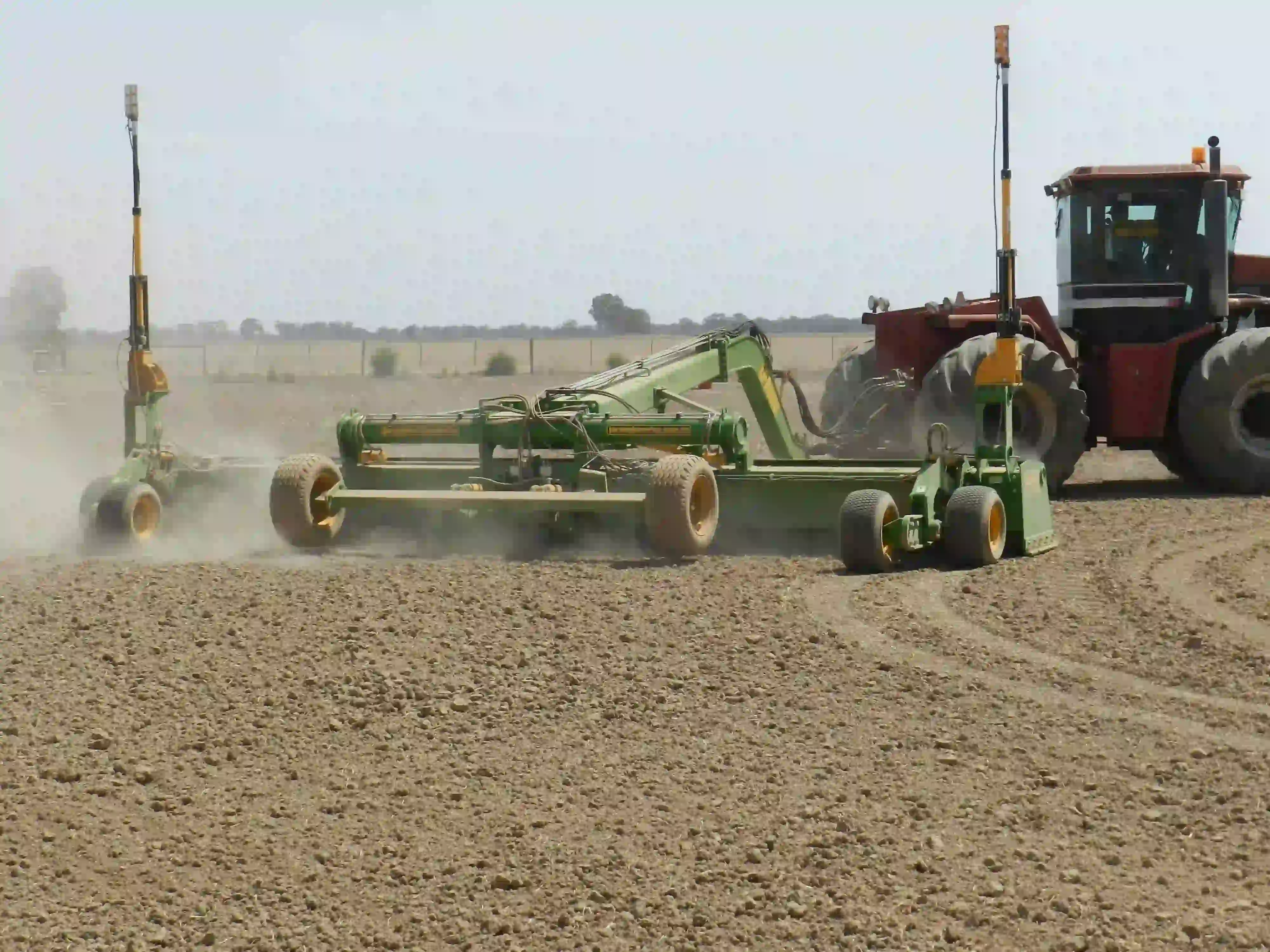

  • Shark LP view 1

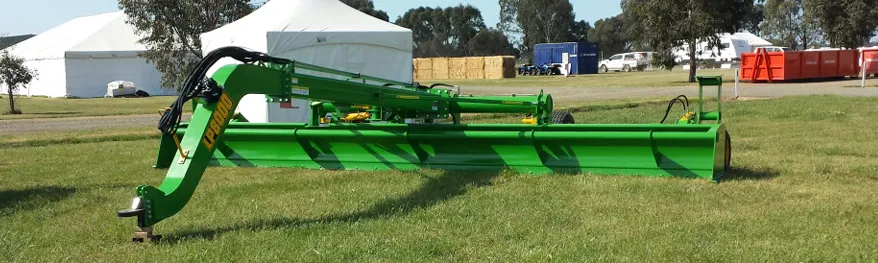

  • Shark LP view 2

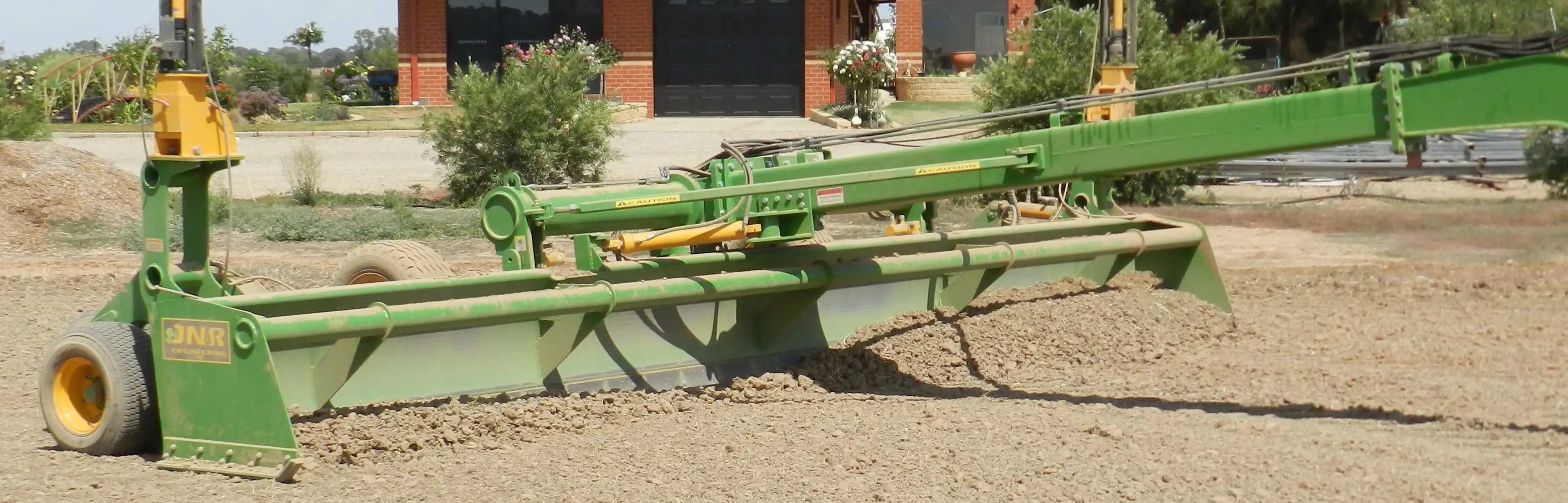

  • Shark LP view 3

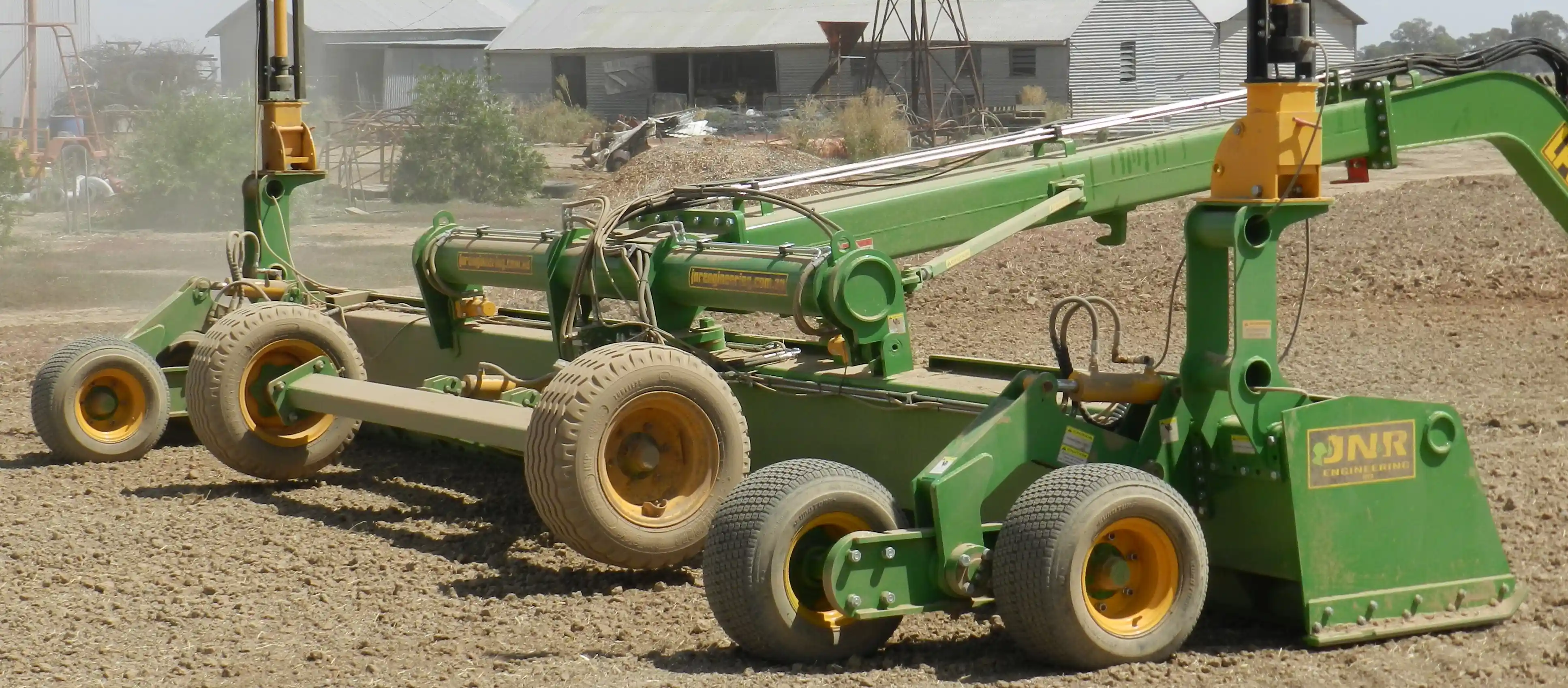

  • Shark LP view 4

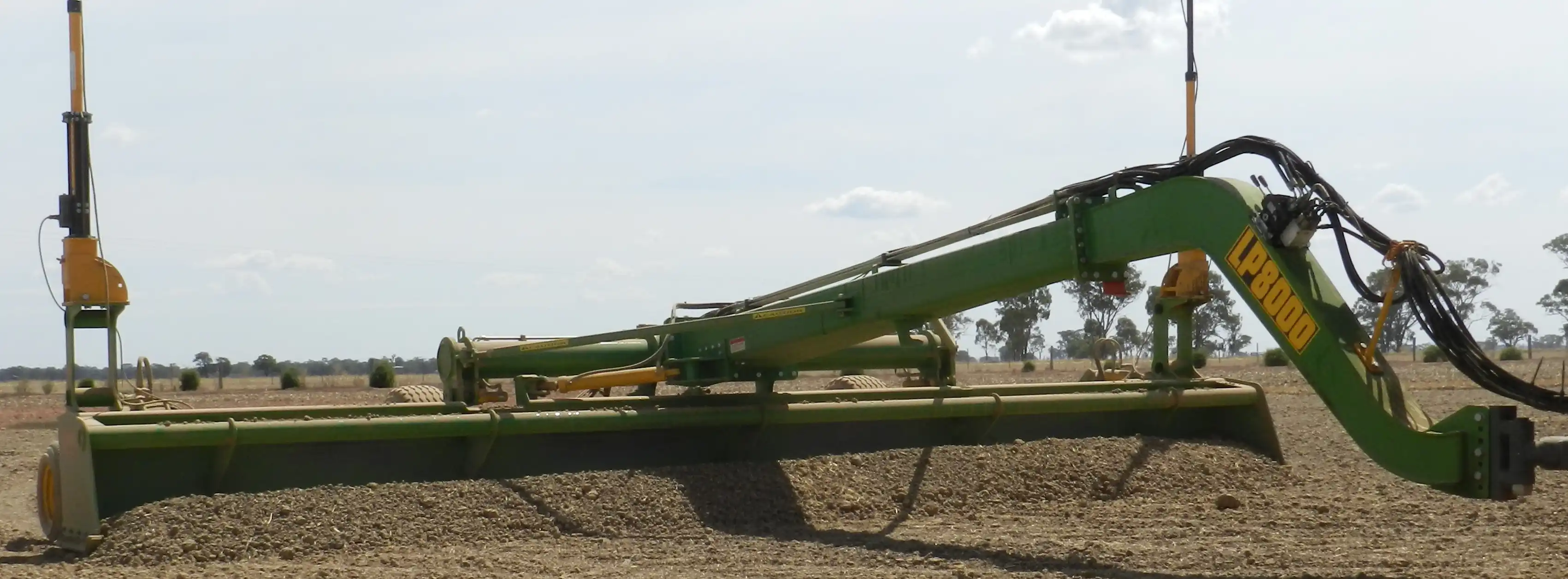

  • Shark LP view 5

Need some fair dinkum width? Shark LP are seriously formidable machines. Best for finishing and touch-ups, they'll take all the effort out of any groundwork and with its auto fold function for transport, you really can't go past the LP range in the field.

  • Hydraulic auto-fold operating system shrinks machine to a mere 3.6 meters - suitable for road transport.
  • Independent twin mast for lift precision.
  • Floating axle design provides suspension-like qualities increasing grading effectiveness
  • Unique blade design delivers impressive cutting and dragging specifications.
  • Can be fitted with a hydraulic valve or plug into remotes.
