Lion
Lion product icon

Lion

340 - 600 HP

Ejector (HDE), Dump (HDB)

Fleet Machine - Tandem capability makes the Lion an ideal option for contractors and larger farmers. Specialising in irrigation work and clay spreading. Size range 3.2m – 4.8m.

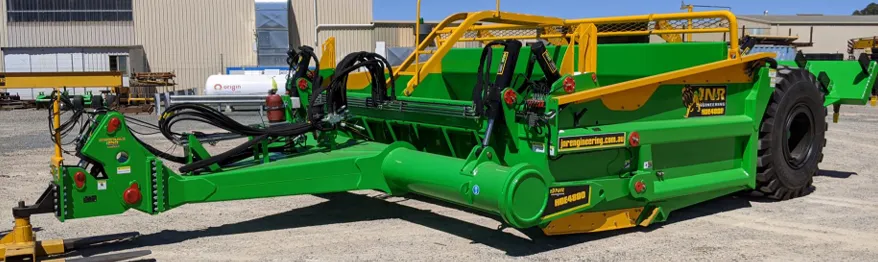

Lion product HDE4800

What's in Lion

Drawing on our experience and knowledge from the last 50+ years, we have created the flagship Lion range.

Ejector (HDE), Dump (HDB)
Specs 3200 3600 3900 4200 4800
Model HDE HDB HDE HDB HDE HDB HDE HDB HDE HDB
Tractor Horsepower Range 340 - 380 400 - 450 460 - 480 480 - 550 550 - 600
Struck Capacity (approx.) 11.5 m³ 8 m³ 13 m³ 9 m³ 14 m³ 10 m³ 15 m³ 11 m³ 17 m³ 12.5 m³
Heaped Capacity (approx.) 14.5 m³ 12 m³ 16 m³ 13 m³ 17 m³ 14 m³ 18 m³ 15 m³ 20.5 m³ 17 m³
Cutting Width 3200 mm 3600 mm 3900 mm 4200 mm 4800 mm
Overall Width 3500 mm 3900 mm 4200 mm 4500 mm 5100 mm
Overall Length 8917 mm 8917 mm 8917 mm 8917 mm 8917 mm
Overall Height 2120 mm 2120 mm 2120 mm 2120 mm 2120 mm
Apron Opening 898 mm 898 mm 898 mm 898 mm 898 mm
Maximum Cutting Depth 125 mm 125 mm 125 mm 125 mm 125 mm
Cutting Edge Clearance 435 mm 435 mm 435 mm 435 mm 435 mm
Clearance Under Rear 360 mm 360 mm 360 mm 360 mm 360 mm
Cross-Level Standard Standard Standard Standard Standard
Shipping Weight (approx.) 10100 kg 11350 kg 12330 kg 13200 kg 15100 kg
Weight at Drawbar (approx.) 3030 kg 3405 kg 3699 kg 3960 kg 4530 kg
Floating Axle Standard Standard Standard Standard Standard
Tyres * 20.5 x 25 20.5 x 25 20.5 x 25 * (23.5 x 25) 20.5 x 25 20.5 x 25 * (23.5 x 25) 20.5 x 25 20.5 x 25 * (23.5 x 25) 20.5 x 25 20.5 x 25 * (23.5 x 25) 20.5 x 25
Cutting Edge 8" or 10" Single or Dual 8" or 10" Single or Dual 8" or 10" Single or Dual 8" or 10" Single or Dual 8" or 10" Single or Dual

Ejector (HDE), Dump (HDB)

HDE, HDB

HDE: 500-600 HP, 20.5³ capacity. HDB: 340-600 HP, 17.0³ capacity. Market-leading performance with superior visibility, durability, and versatility for ejecting or bucket-style spreading in all conditions.

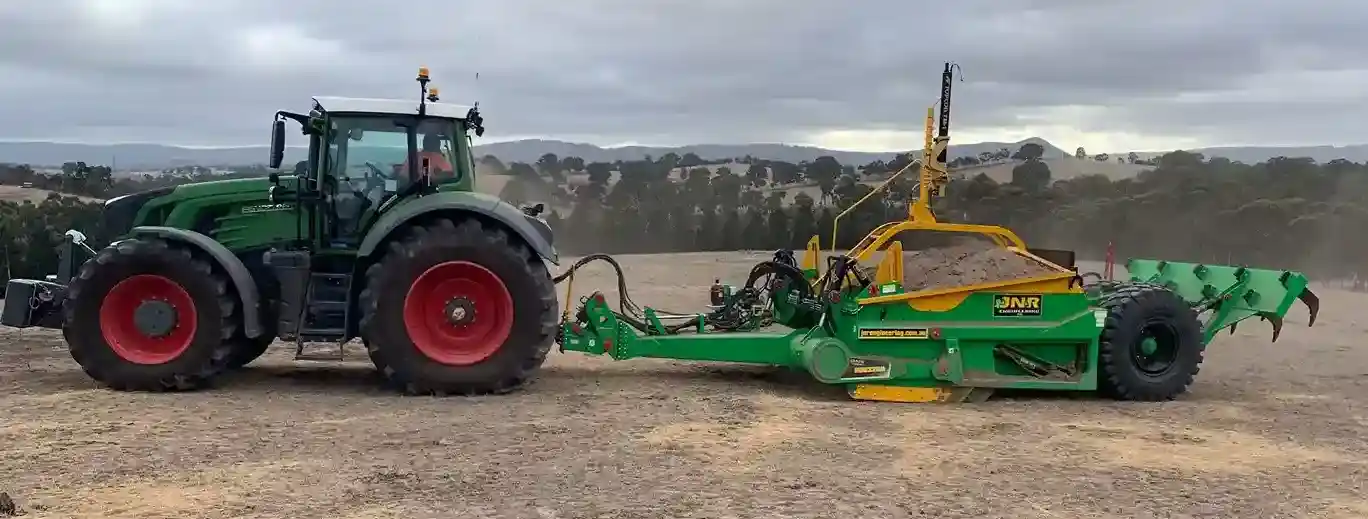

  • Lion HDE model view 1

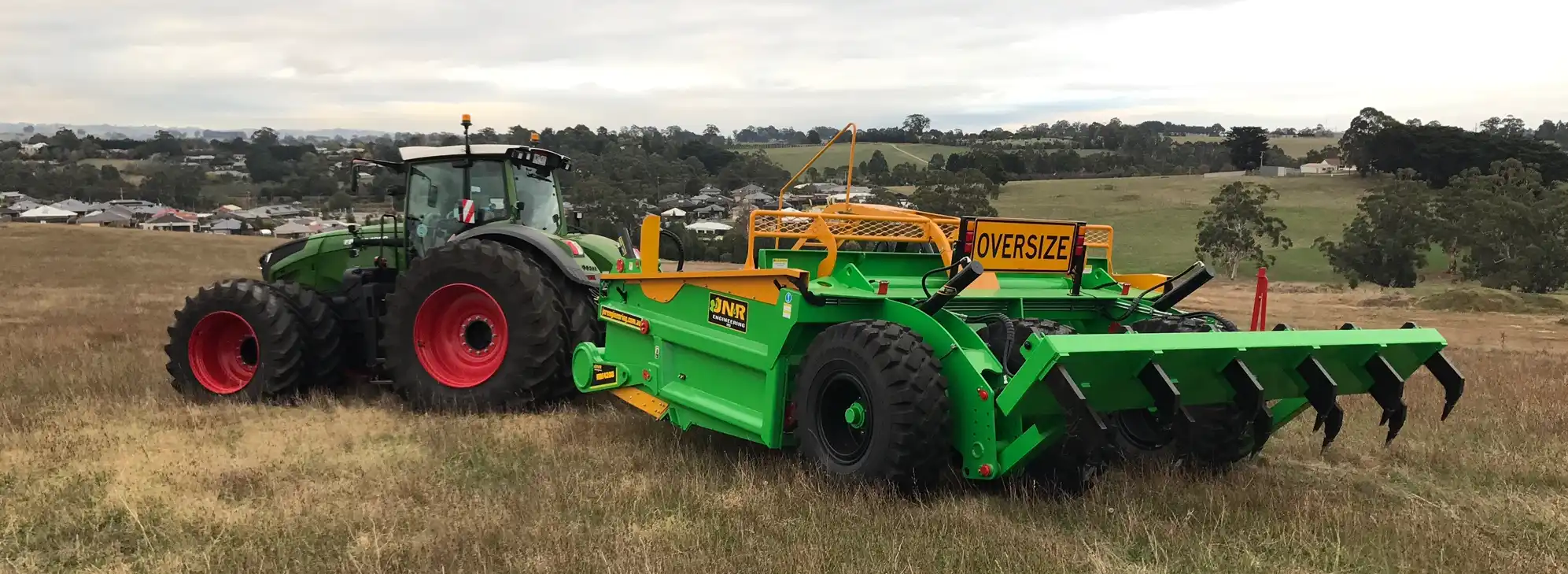

  • Lion model view 1

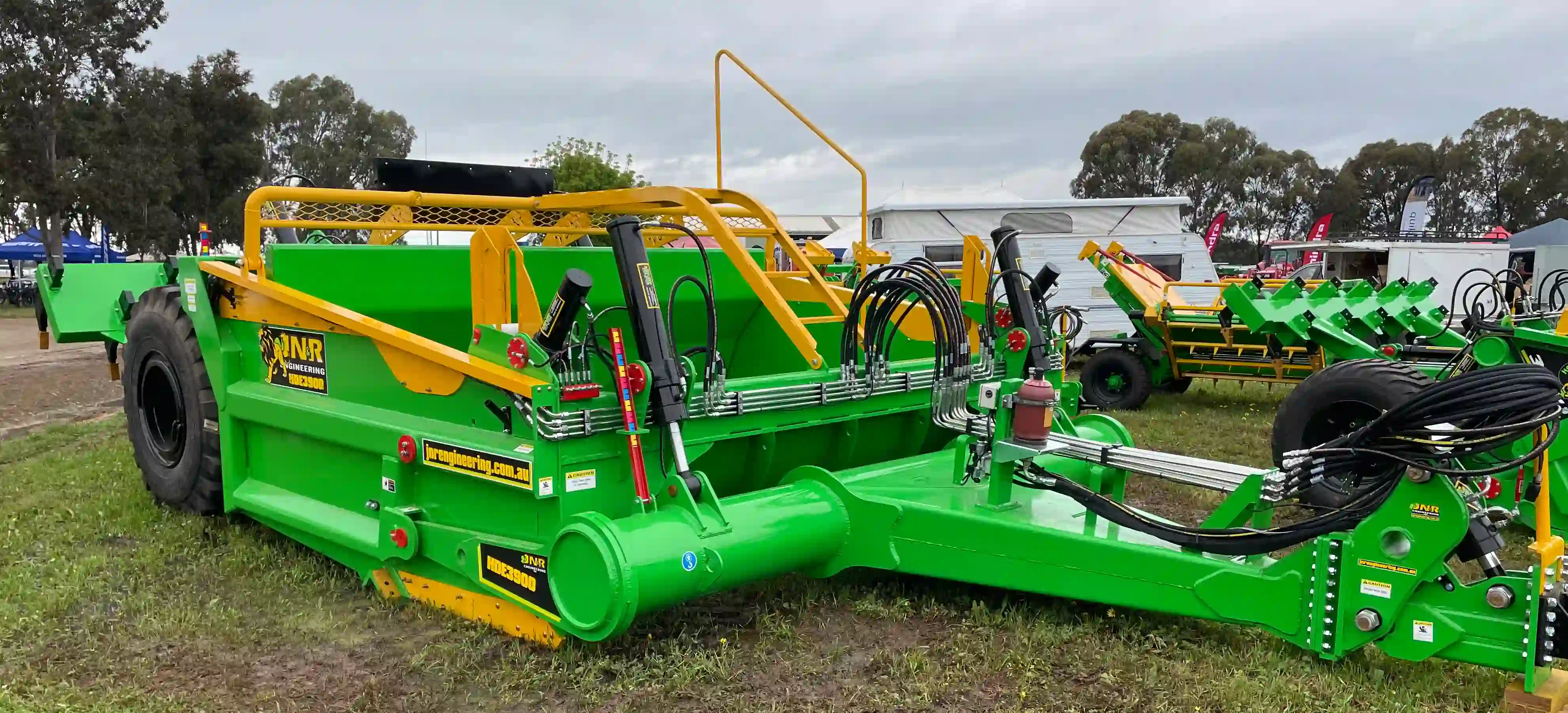

  • Lion model view 2

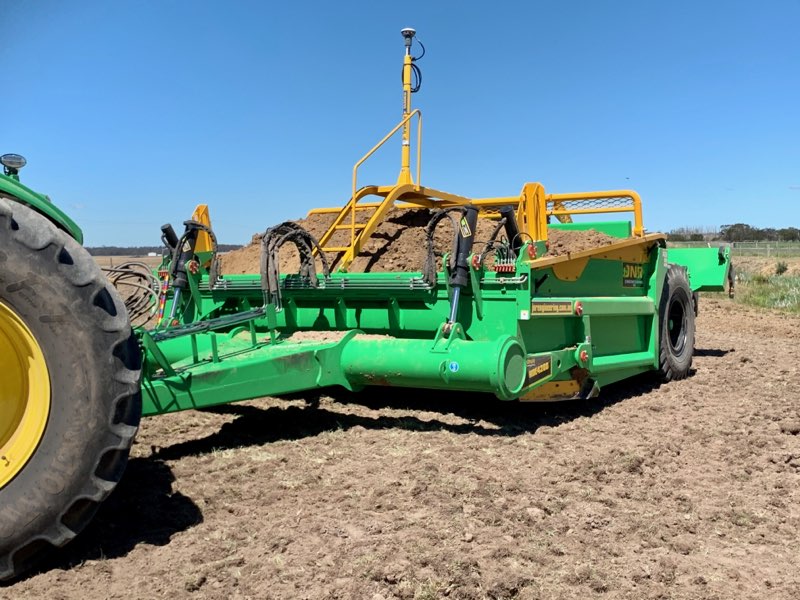

  • Lion model view 3

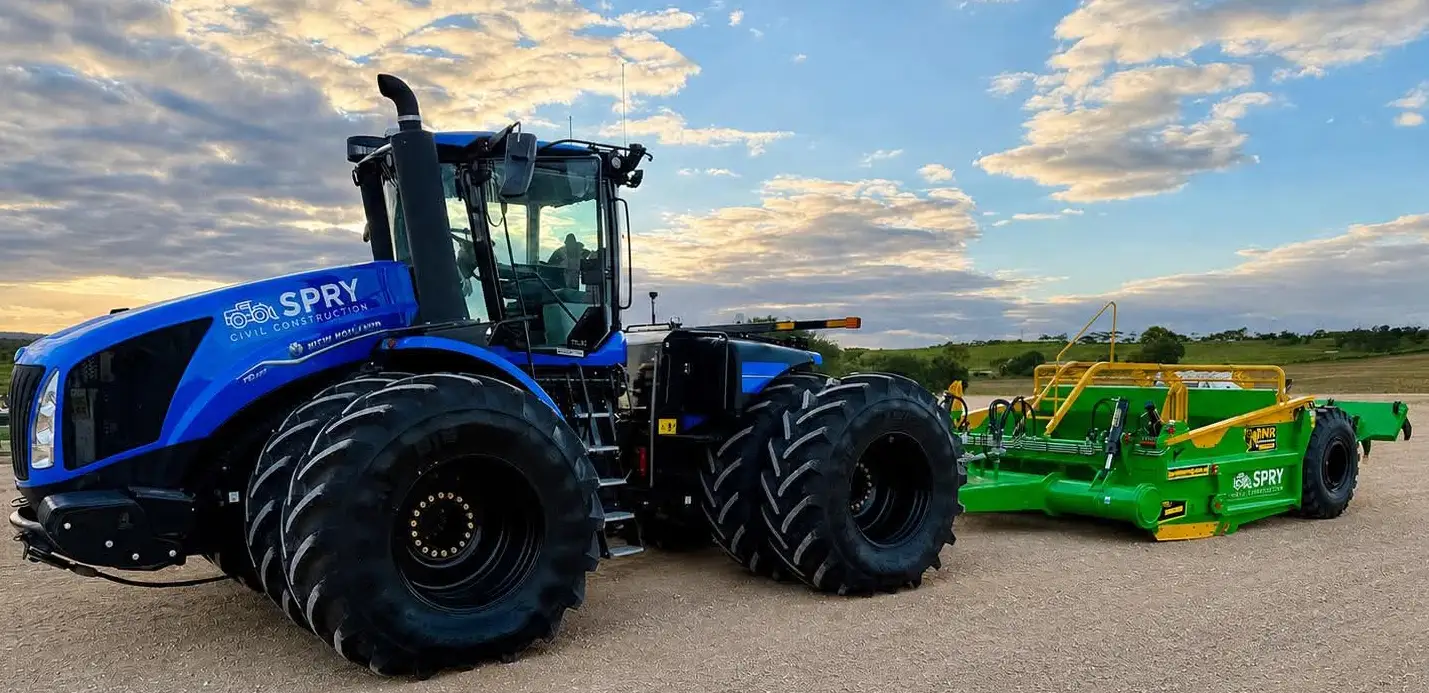

  • Lion model view 4

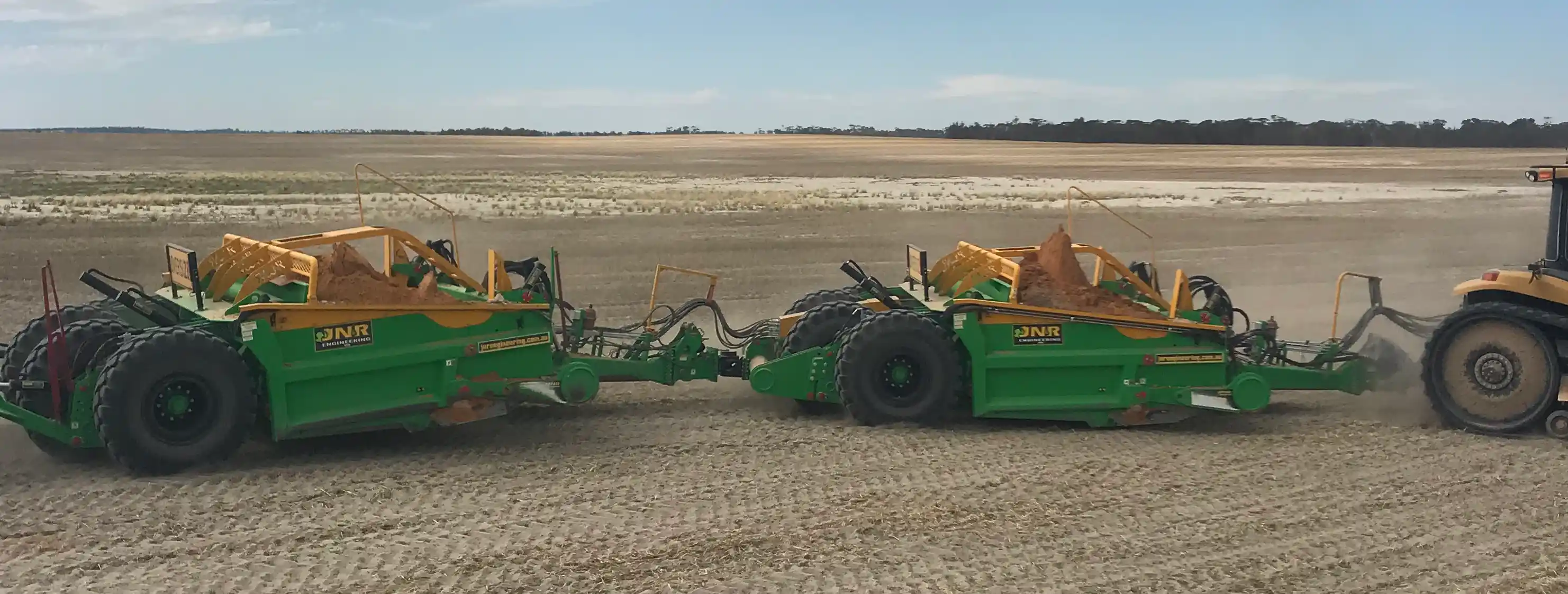

  • Lion model view 5

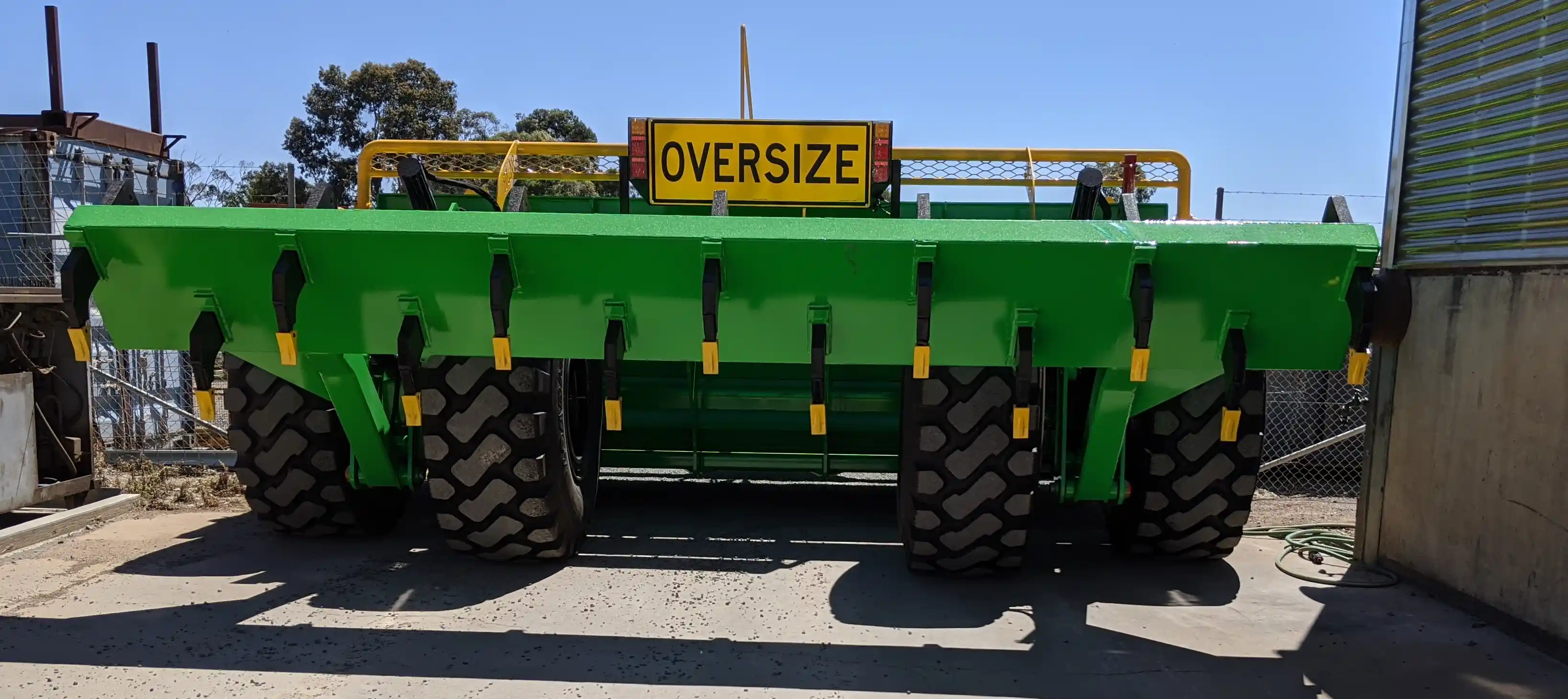

  • Lion model view 6

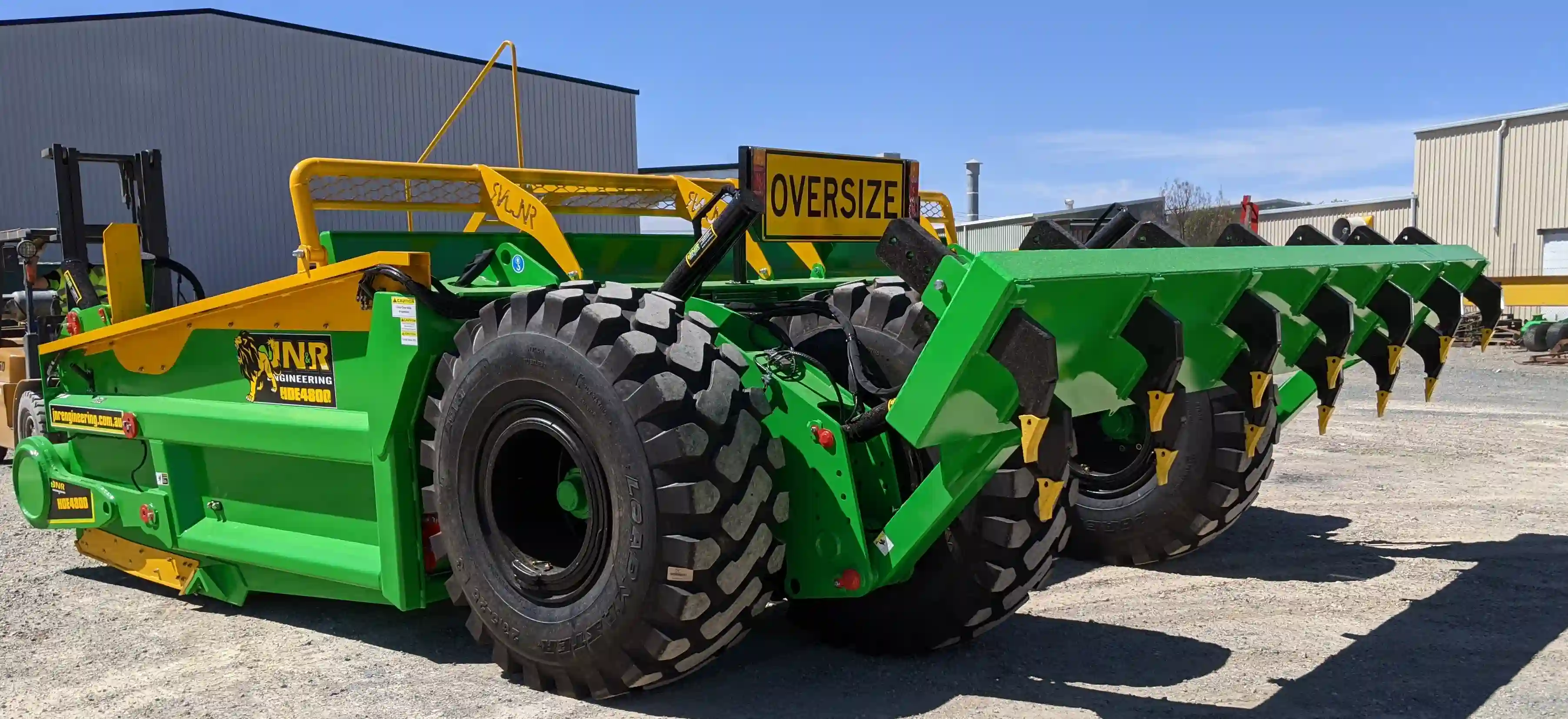

  • Lion model view 7

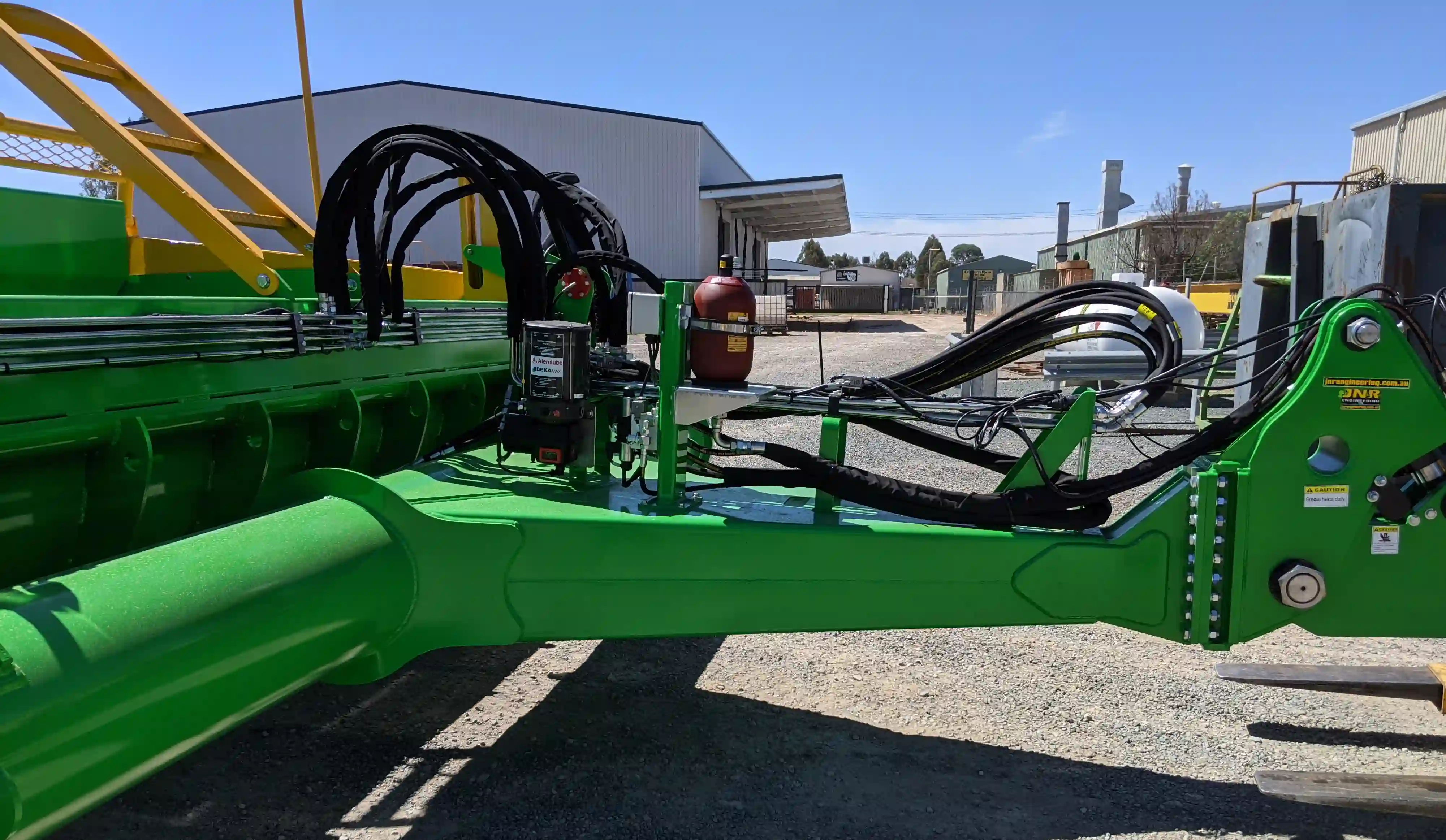

  • Lion model view 8

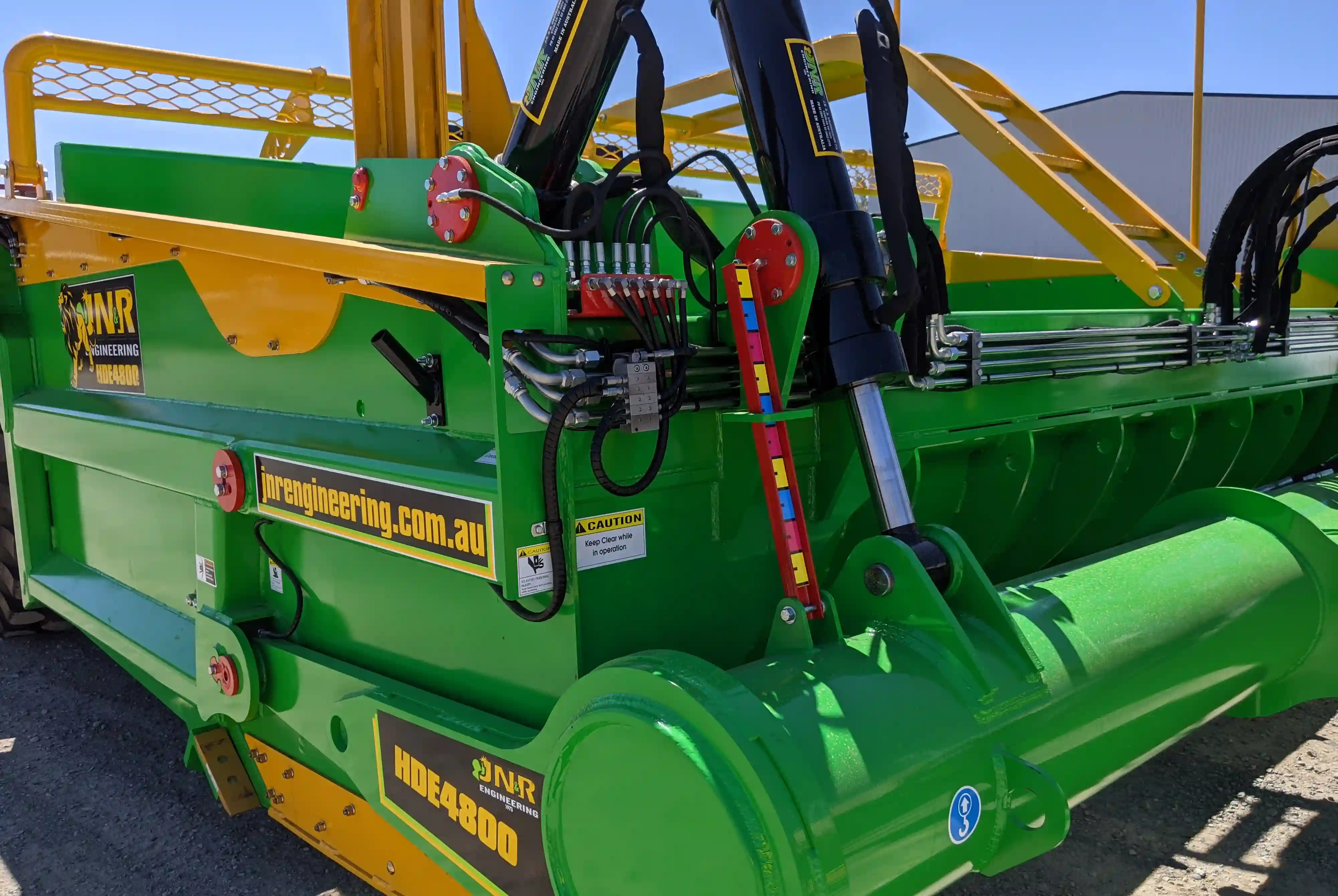

  • Lion model view 9

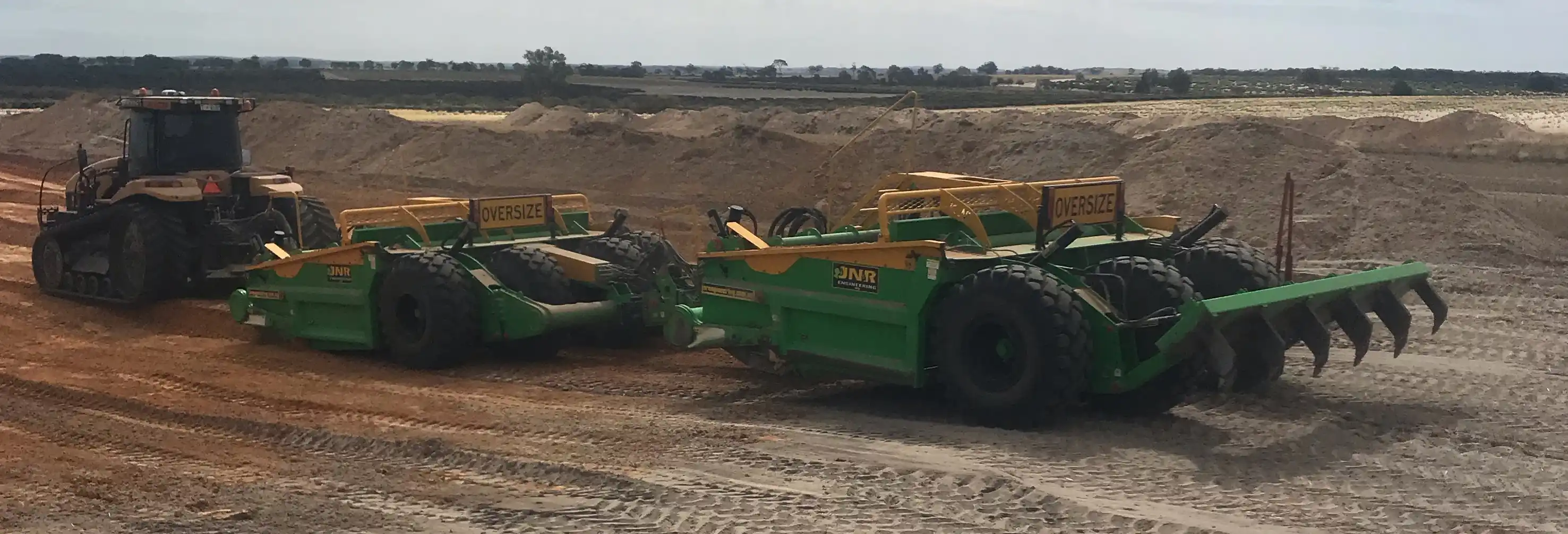

  • Lion model view 10

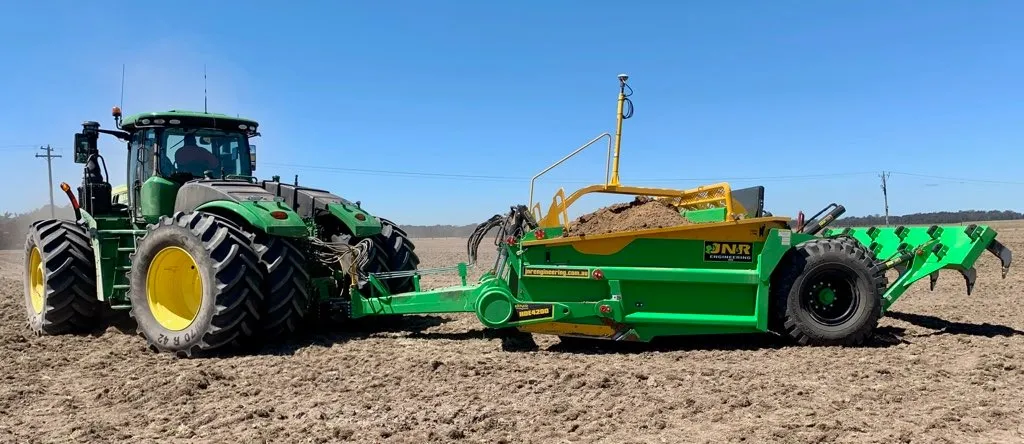

  • Lion HDE model view 2

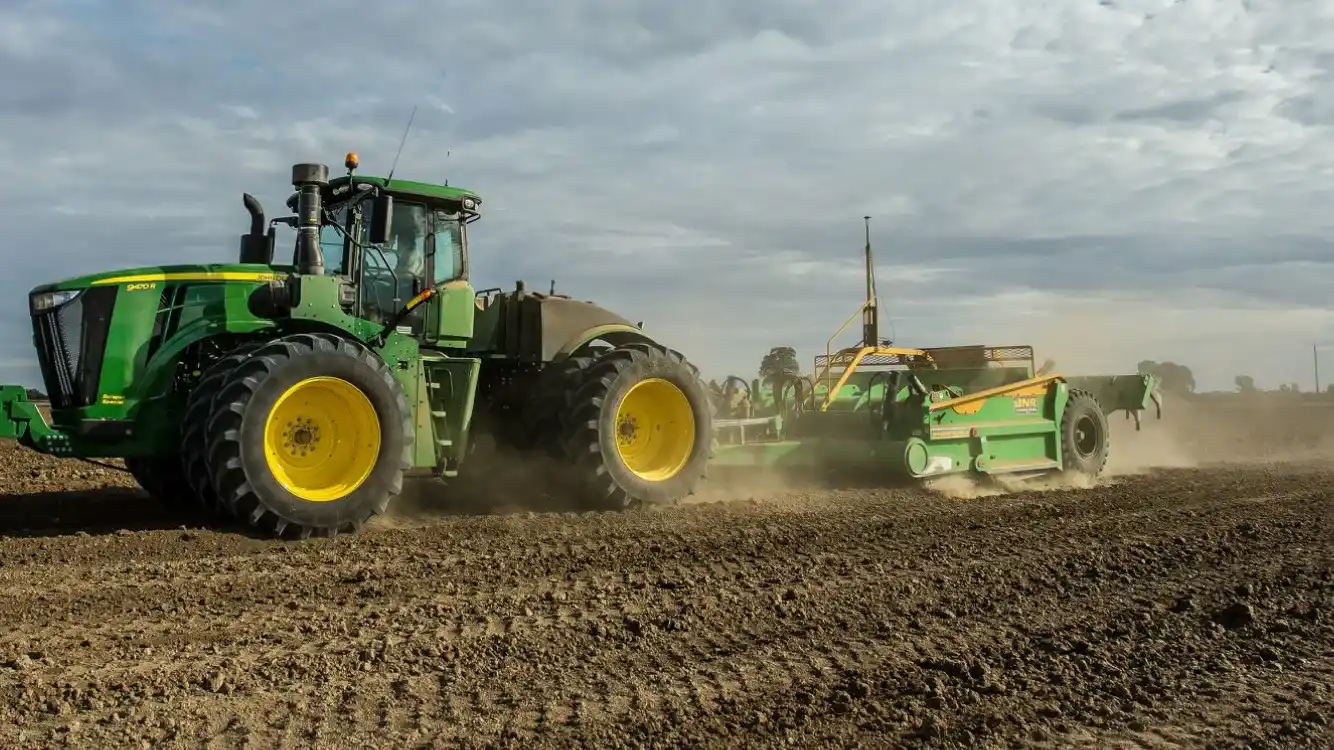

  • Lion HDB model view 1

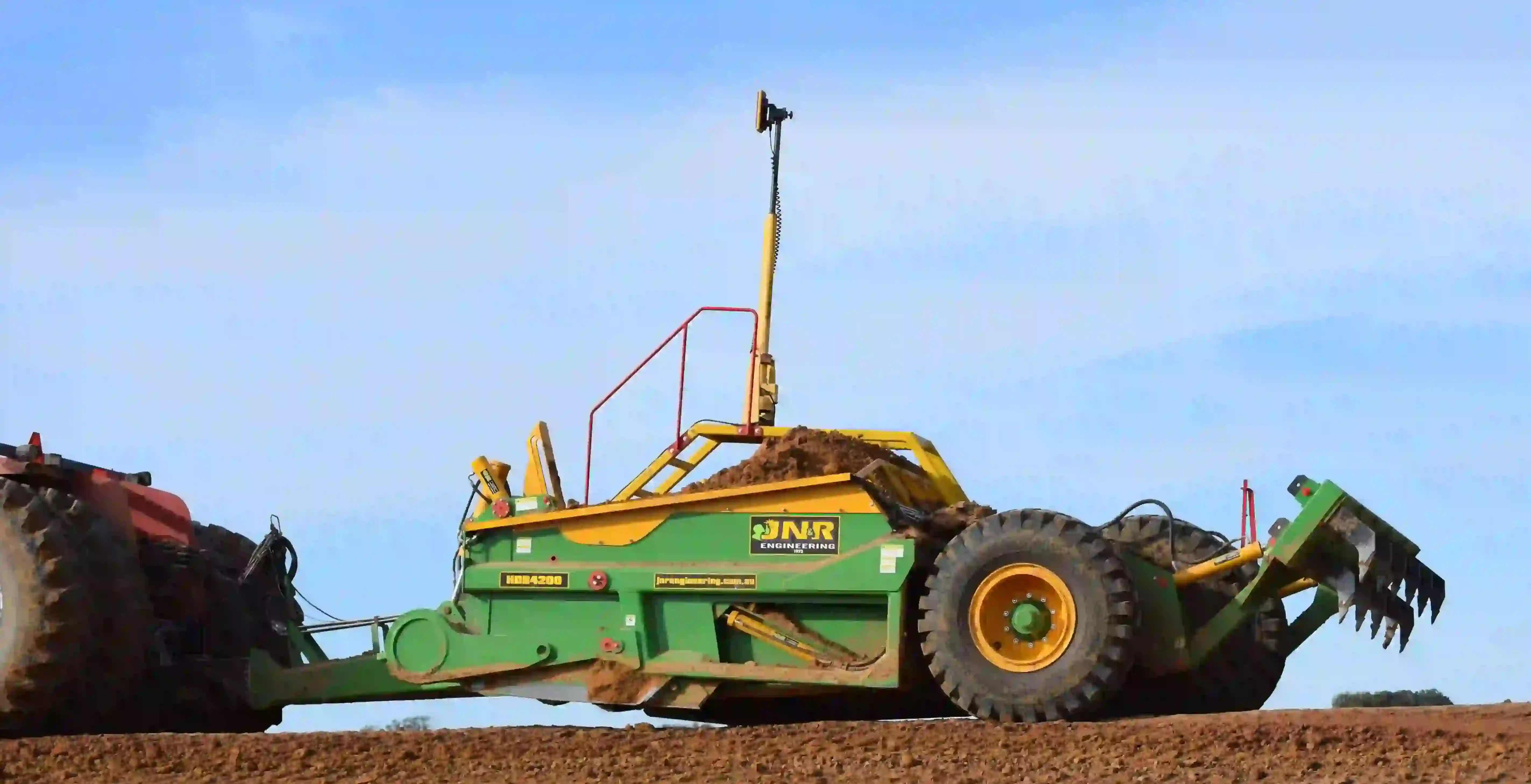

  • Lion HDB model view 2

Applying real world finds by listening to our customers, we have engineered this range to be stronger and more durable without being an immoveable brick! Whether you’re in camp ‘Ejector’ or camp ‘Bucket’, the Lion is by far the market leader doing everything faster and better than anything else on the market today. Highly suited to larger farmers or contractors, the HDE and HDB are the perfect solutions for irrigation work and clay spreading. Effortlessly performing in many different conditions making it the most versatile and robust machine not only in our range but across the industry.

There’s no machine in the world that rivals the Lion for value for money - just look at the features and compare:

  • A low-slung V style pull allows for increased blade visibility.
  • Hydraulic lines run in visual and protected areas, minimizing the amount of damage and down time. This also includes making the (minimal) consumable parts easily accessible and easy to maintain.
  • Front mounted lift cylinders for quicker response time and better blade control.
  • One-piece side wing allowing for a greater stuck and heaped capacity.
  • Standard 20.5 x 25 earth moving tyres on a 4-tyre floating system run on 110mm axles produces a better finish with lower fuel burn.
  • A cross leveller on the machine's right hand side allows for side tilt
  • An optional 50mm tyne Ripper system with the choice of single (9) or double row (11) tyne configuration.

The Lion range has been designed with standardized components in mind. This gives you the ability to own multiple Lion machines providing you with versatility and economy across your fleet. Buckets and Ejectors alike can employ a variety of setups, allowing for a cost-effective partnership between the models. Great idea for when the current financial climate calls for working smarter, not harder.

The Tandem Hitch option is another great addition to the entire Lion range, giving you the ability to double your work, not your effort.
