Leopard
Leopard product icon

Leopard

200 - 390 HP

Ejector, Dump

Suited to farms of all sizes, market gardeners and land forming needs. Size range 3.0m – 4.2m.

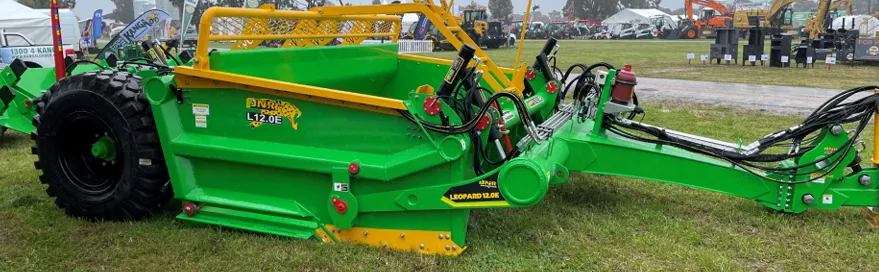

Leopard product

What's in Leopard

One of the most popular models available in the JNR range!

Ejector, Dump
Specs 3.0m (10.0) 3.2m (10.8) 3.6m (12.0) 3.9m (13.0) 4.2m (14.0)
Model Ejector Bucket Ejector Bucket Ejector Bucket Ejector Bucket Ejector Bucket
Tractor Horsepower Range 200 - 230 240 - 260 300 - 340 350 - 370 370 - 390
Struck Capacity (approx.) 6.85 m³ 6.0 m³ 7.3 m³ 6.50 m³ 8.2 m³ 7.4 m³ 8.9 m³ 8.10 m³ 9.60 m³ 8.80 m³
Heaped Capacity (approx.) 9.85 m³ 9.0 m³ 10.45 m³ 9.50 m³ 11.75 m³ 10.4 m³ 12.70 m³ 11.90 m³ 13.70 m³ 12.80 m³
Cutting Width 3000 mm 3200 mm 3600 mm 3900 mm 4200 mm
Overall Width 3290 mm 3490 mm 3890 mm 4190 mm 4490 mm
Overall Length 7650 mm 7650 mm 7650 mm 7650 mm 7650 mm
Overall Height 1940 mm 1940 mm 1940 mm 1940 mm 1940 mm
Apron Opening 898 mm 898 mm 898 mm 898 mm 898 mm
Maximum Cutting Depth 200 mm 200 mm 200 mm 200 mm 200 mm
Cutting Edge Clearance 411 mm 411 mm 411 mm 411 mm 411 mm
Clearance Under Rear 372 mm 372 mm 372 mm 372 mm 372 mm
Cross-Level 150 mm 150 mm 150 mm 150 mm 150 mm
Shipping Weight (approx.) 7250 kg 7744 kg 8712 kg 9438 kg 10164 kg
Weight at Drawbar (approx.) 2175 kg 2323 kg 2614 kg 2831 kg 3049 kg
Floating Axle Standard Standard Standard Standard Standard
Tyres 17.5 x 25 17.5 x 25 17.5 x 25 17.5 x 25 17.5 x 25
Cutting Edge 8" Single or Dual Holes 8" Single or Dual Holes 8" Single or Dual Holes 8" Single or Dual Holes 8" Single or Dual Holes

Ejector, Dump

Ejector: 180-390 HP, 13.70³ capacity. Dump: 180-390 HP, 12.80³ capacity. A versatile, value-packed land forming machine for farms, market gardeners and more.

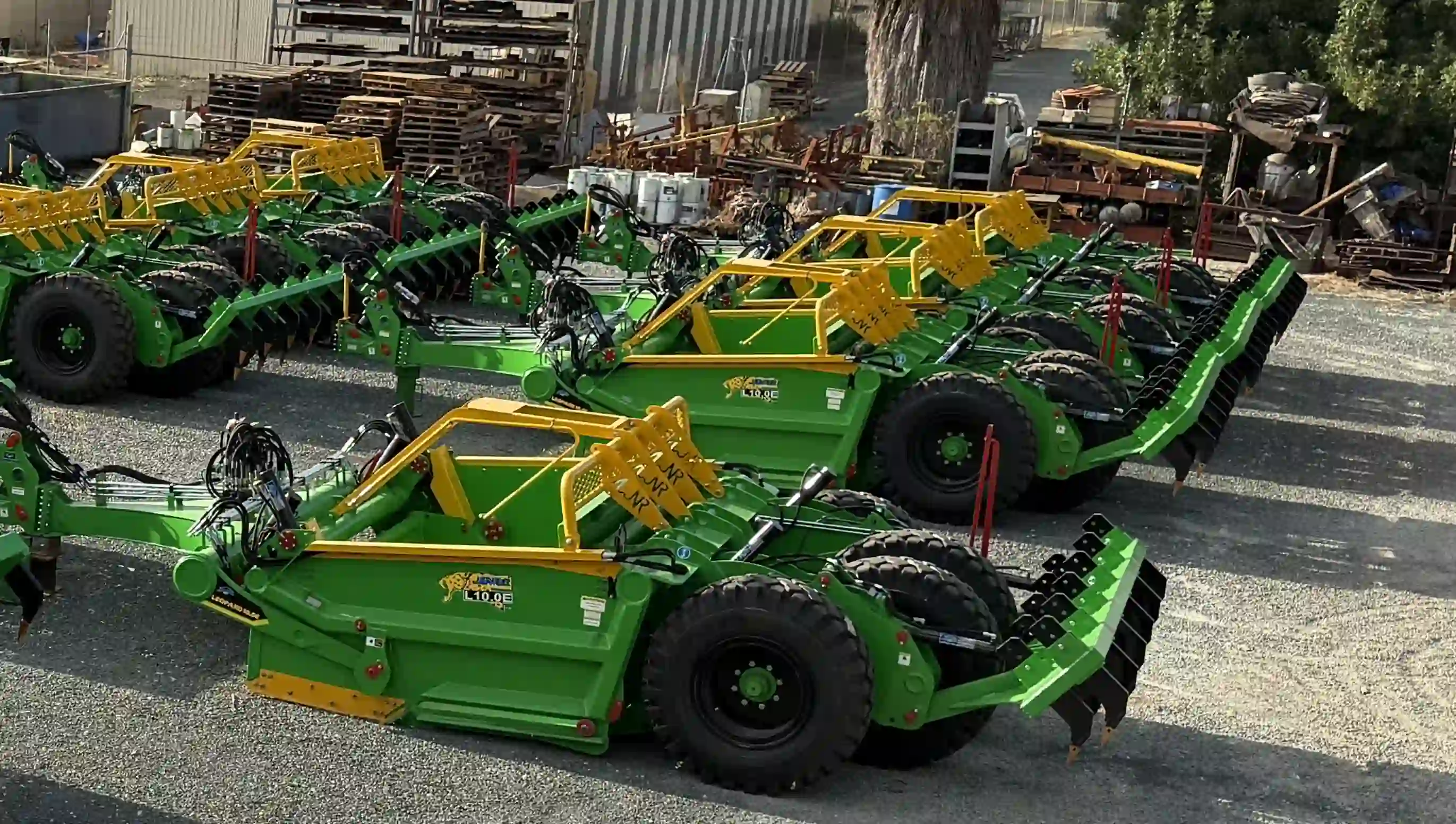

  • Leopard Ejector view 1

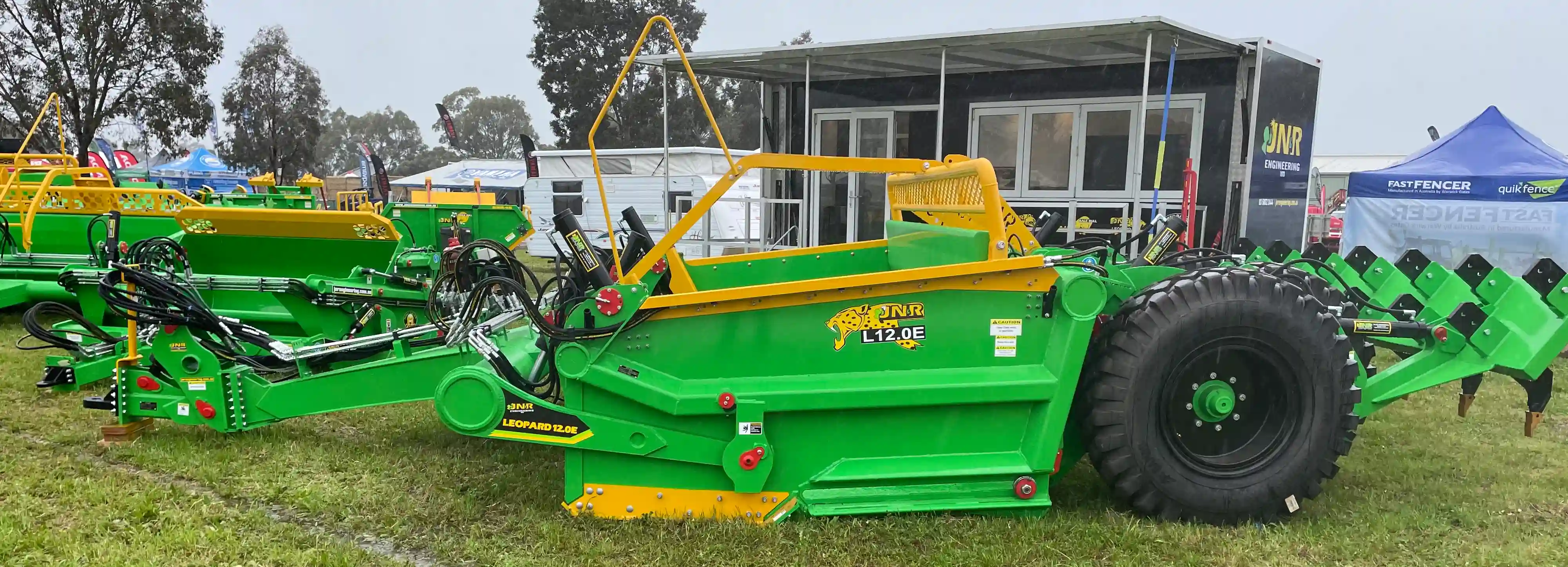

  • Leopard Ejector view 2

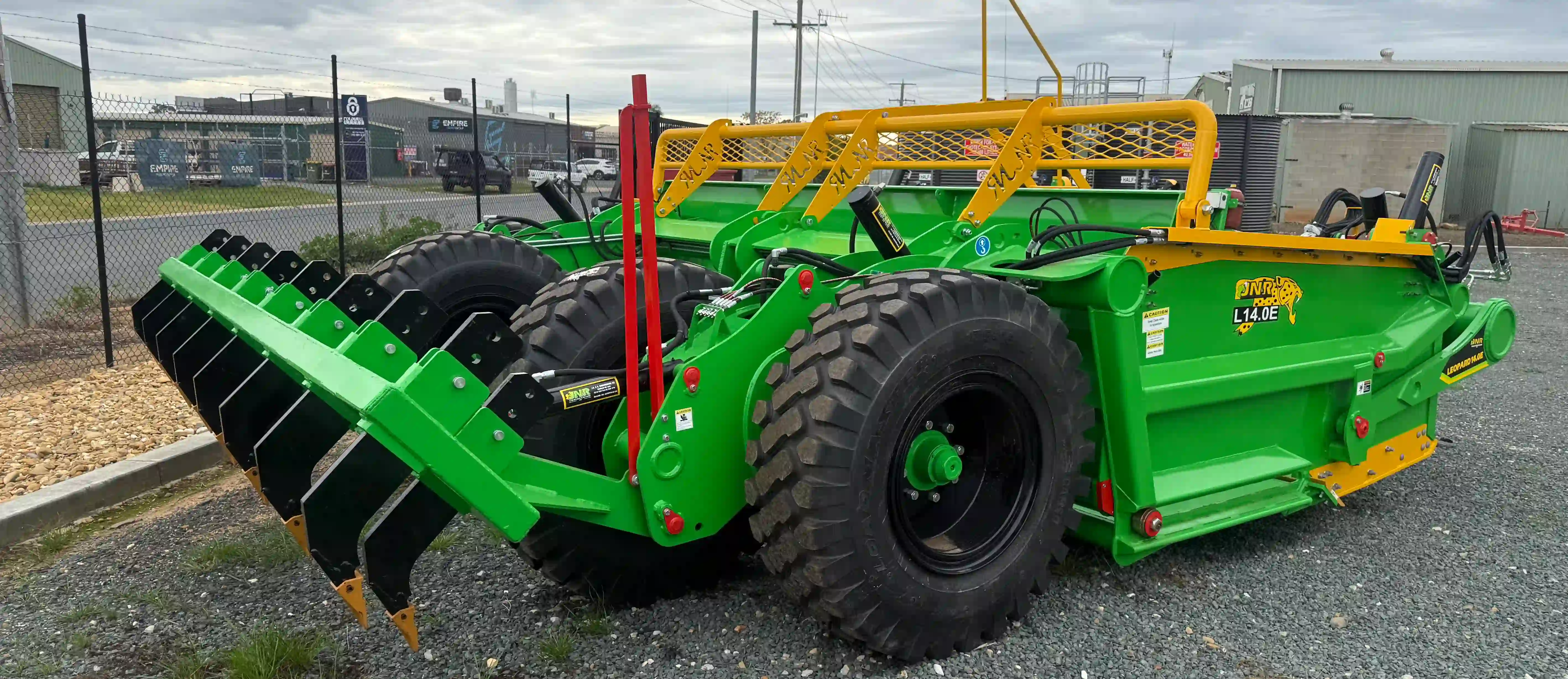

  • Leopard Ejector view 3

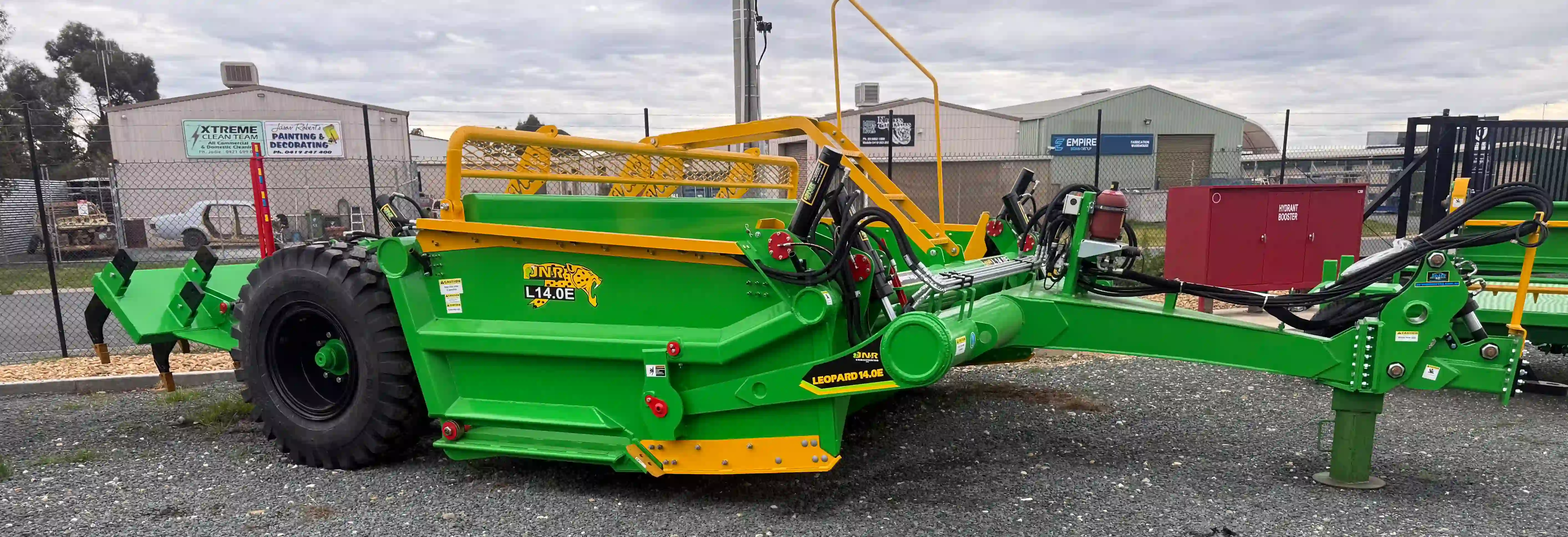

  • Leopard Ejector view 4

Sold across Australia and exported, the Leopard is favored by many due to its suitability to most types of land forming and incomparable in its value for money.

Available also as a Bucket model for the diehard dump bucket fans, and with a wide range of sizes and options to customize such as Cushion Hitch, Ball + Cup and Rippers, the Leopard is suited to just about everyone: farms of all sizes, market gardeners and most types of land forming applications.

Similar machines of this size don’t even come close in offering the same features or value as seen in the Leopard range:

  • Raised pull cross pipe increases clearance to eliminate extra drag and allows for a greater mouth opening decreasing loading and spreading time.
  • 17. 5 x 25 Earth moving tyres for reducing roll resistance, lowering fuel burn and handles the increase in load and travel speeds.
  • Minimal throat angle on the pull to allow for greater turning radius.
  • Dual lift: 150mm extra, allows for rear clearance and altered cutting angle to achieve a more aggressive dig in addition to 150mm dual cross level.
  • Trunnion mounted apron cylinders for quicker response time and better blade control.
